Rexroth 0811404206 4WRL16V120M-3X/G24Z4/M
Type:Rexroth 0811404206 4WRL16V120M-3X/G24Z4/M
Rexroth 0811404206+4WRL16V120M-3X/G24Z4/M

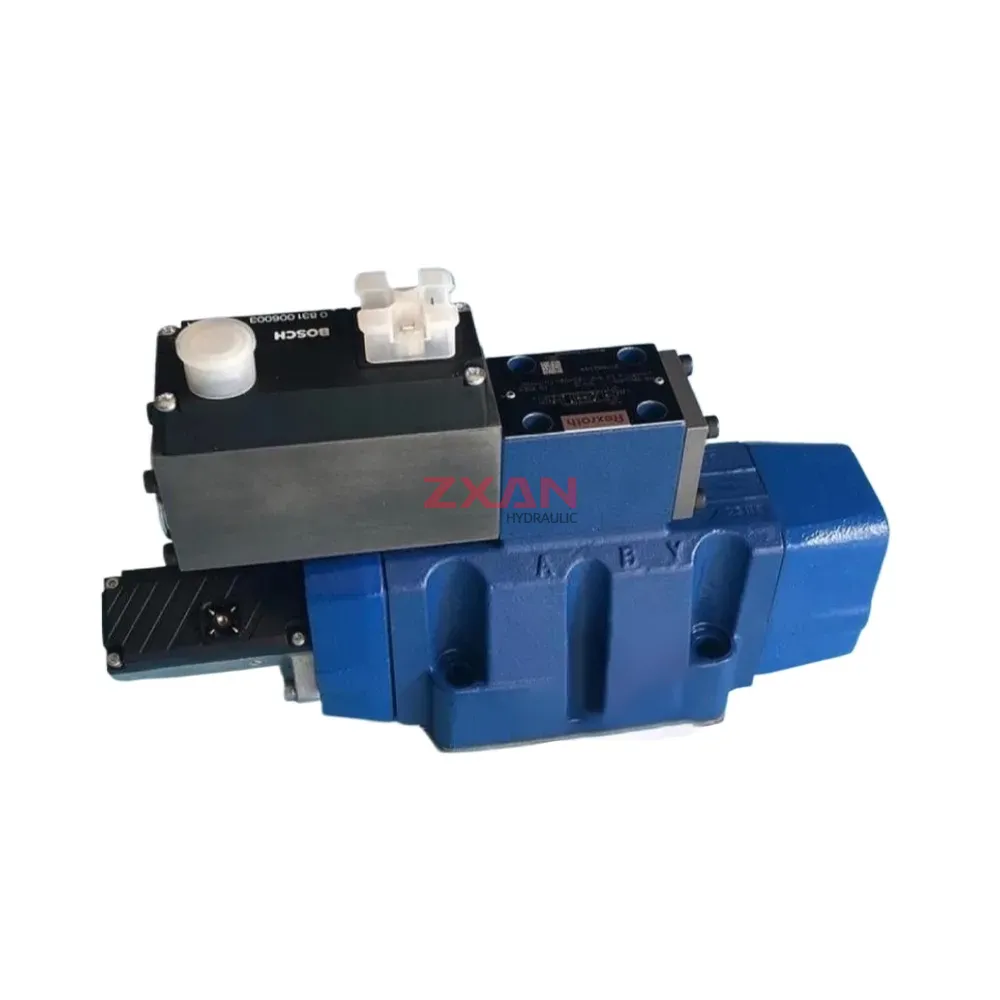

The Rexroth 0811404206, which corresponds to the proportional directional valve model 4WRL16V120M-3X/G24Z4/M, is a high-performance hydraulic component designed for precise control of oil flow direction and magnitude. This direct-operated valve, nominal size NG16, features electrical position feedback and integrated electronics (OBE), ensuring accurate and responsive operation in demanding industrial applications. It is engineered for reliability and is suitable for systems requiring sophisticated hydraulic control, such as in machine tools, presses, and general industrial machinery. The valve’s robust design allows for operation under high pressures and offers consistent performance.

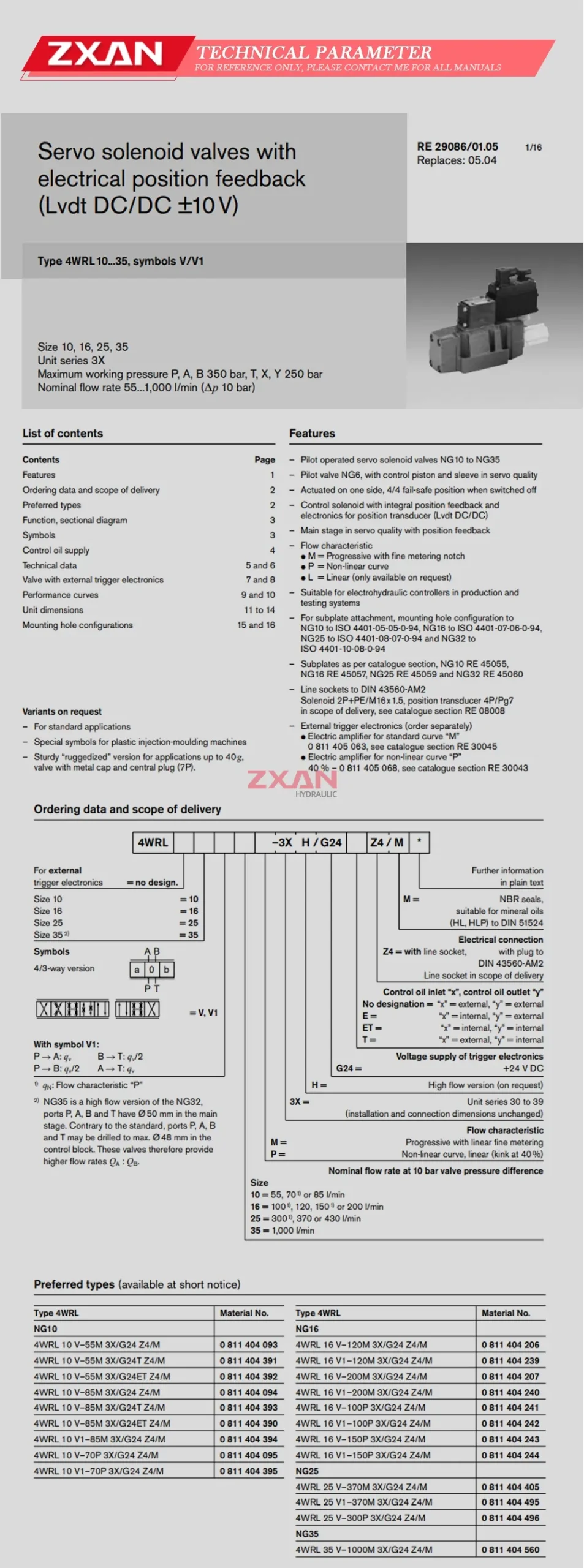

Technical Specifications:
- Type: Proportional directional valve, direct operated
- Series: 4WRL
- Model Code: 4WRL16V120M-3X/G24Z4/M
- Material Number: 0811404206
- Nominal Size: NG16 (according to ISO 4401-07-06-0-94) / CETOP 07
- Spool Symbol: V (Closed center in mid-position)
- Nominal Flow Rate: 120 L/min (at 10 bar pressure differential per control land)
- Maximum Operating Pressure (Ports P, A, B): 350 bar
- Maximum Operating Pressure (Port T): 210 bar (without external pressure oil supply Y)
- Control: Proportional solenoids with electrical position feedback and integrated electronics (OBE)
- Supply Voltage: 24V DC (G24)
- Electrical Connection: Plug-in connector according to DIN EN 175201-804, 4-pole (without mating connector) (Z4)
- Seal Material: NBR (suitable for mineral oil HL, HLP according to DIN 51524) (M)
- Component Series: 3X (30 to 39)
- Manual Override: Standard (M)
- Hydraulic Fluid Temperature Range: -20 °C to +80 °C
- Viscosity Range: 2.8 to 500 mm²/s
| Brand | Rexroth |
|---|---|
| Model | 0811404206 4WRL16V120M-3X/G24Z4/M |
