REXROTH 4WE 6 J62/EG24K4QR0G24S R900978538
Model:REXROTH 4WE 6 J62/EG24K4QR0G24S R900978538
REXROTH 4WE 6 J62/EG24K4QR0G24S R900978538

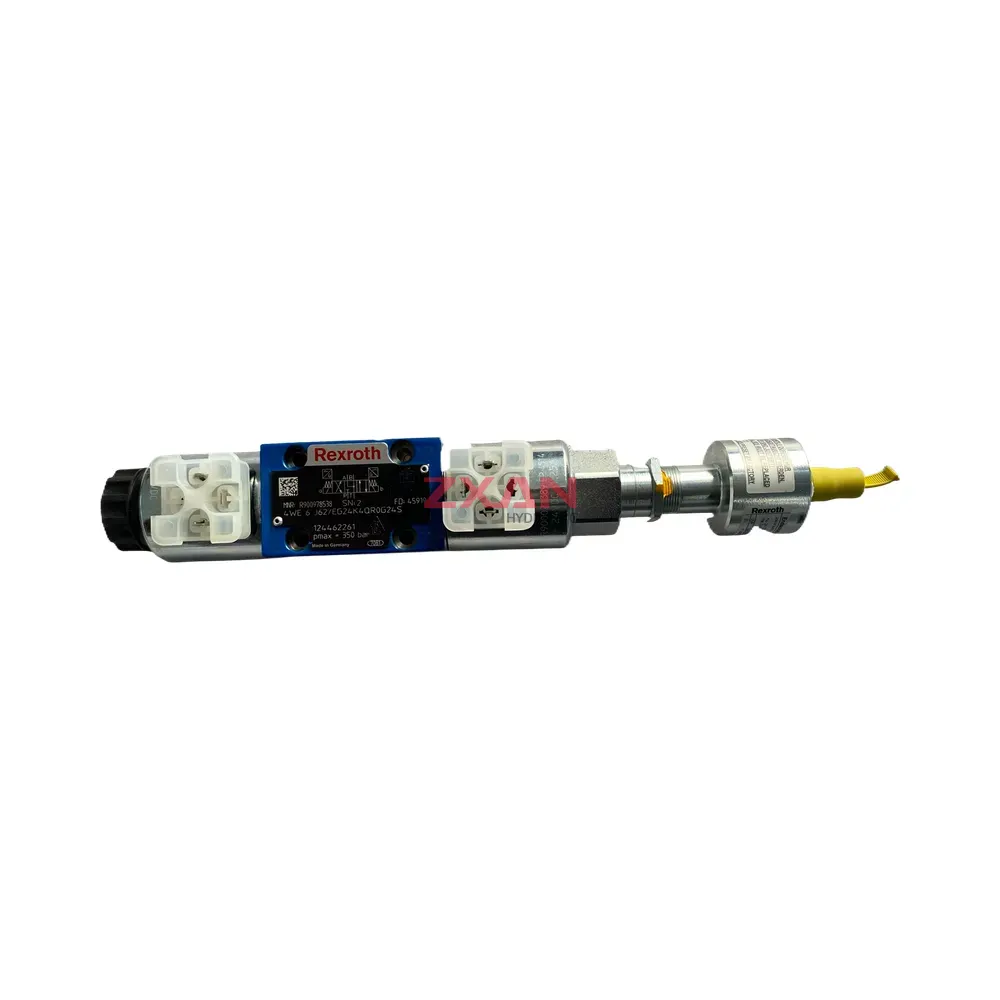

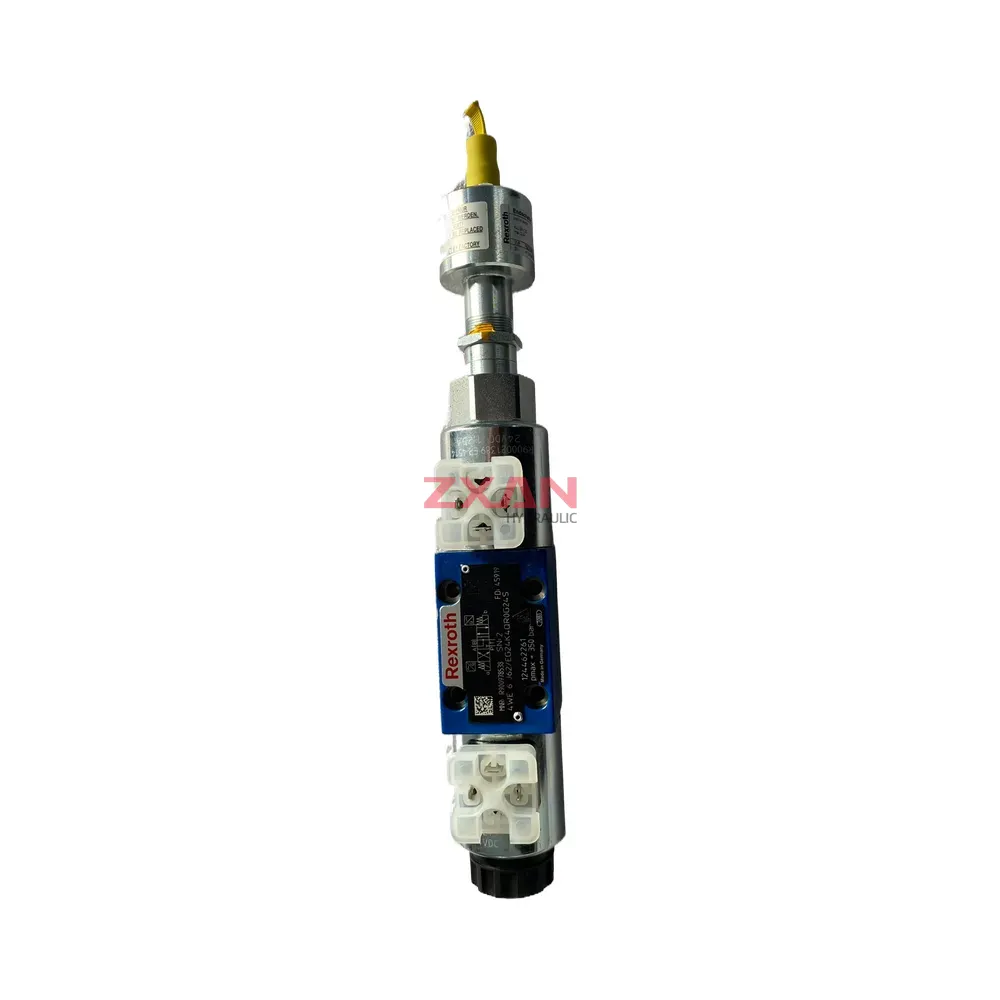

The Rexroth 4WE 6 J62/EG24K4QR0G24S is a direct solenoid actuated directional spool valve. This model is a 4-port, 3-position valve (4/3) belonging to the WE series, designed for reliable switching of oil flow direction in hydraulic systems. It features a size 6 (NG6 / CETOP 03) mounting interface and utilizes the ‘J’ spool configuration, which provides a closed center position where ports P, A, B, and T are blocked. The valve is actuated by 24V DC solenoids (EG24) and includes an individual electrical connection via a DIN EN 175301-803 connector (K4), with specific features potentially indicated by the QR0G24S code (often relating to connector type, LEDs, or suppression). This valve is part of component series 6X.
Technical Specifications:
- Valve Type: 4/3 Directional Spool Valve, Direct Operated
- Series: 4WE 6, Component Series 6X
- Size: NG6 (CETOP 03)
- Spool Symbol: J (Closed center – P, A, B, T blocked)
- Actuation: Solenoid
- Solenoid Voltage: 24V DC (EG24)
- Electrical Connection: K4 (Individual connection per DIN EN 175301-803), specific variant QR0G24S
- Maximum Operating Pressure (Ports P, A, B): 350 bar (5075 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Maximum Flow Rate: approx. 80 l/min (21 US gpm) – dependent on pressure drop
- Hydraulic Fluid Temperature Range: -30°C to +80°C (-22°F to +176°F)
- Mounting Pattern: ISO 4401-03-02-0-05 (NG6 / CETOP 03)
- Material Number: R900978538
| Brand | Rexroth |
|---|---|
| Model | 4WE 6 J62/EG24K4QR0G24S R900978538 |
