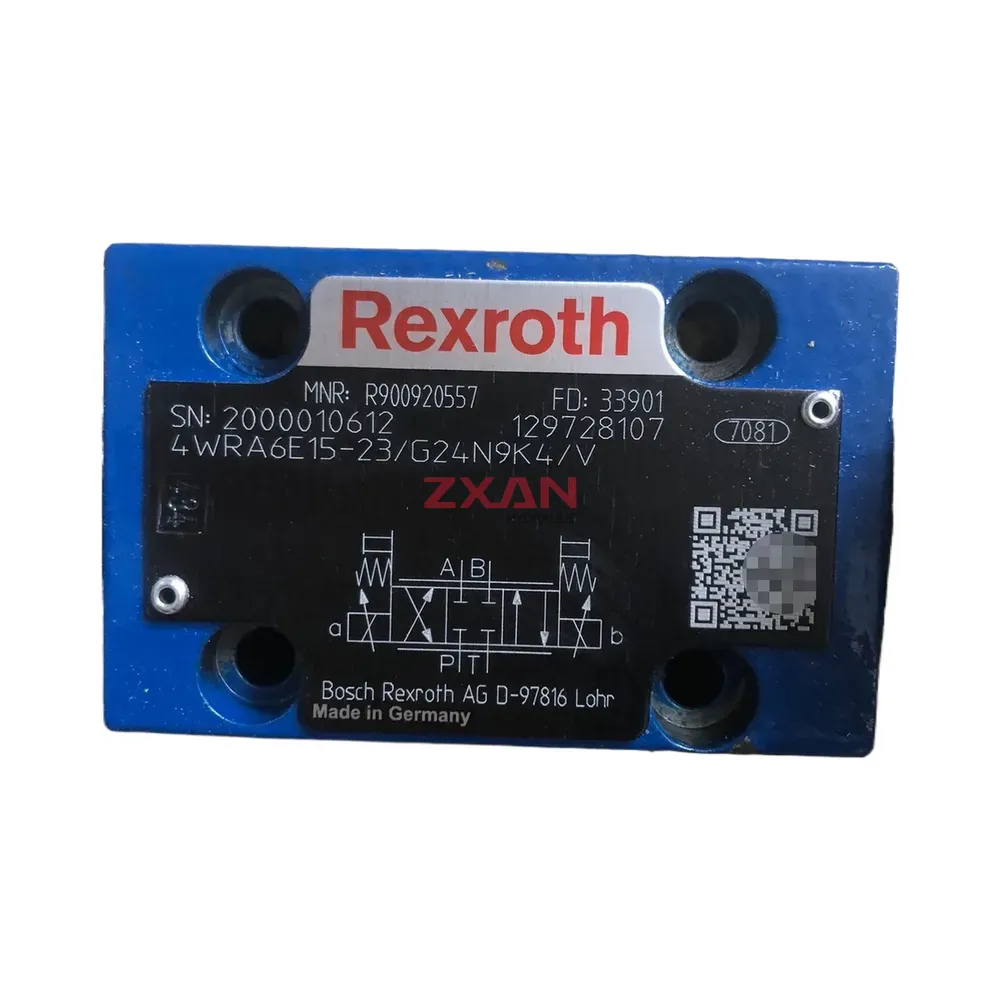

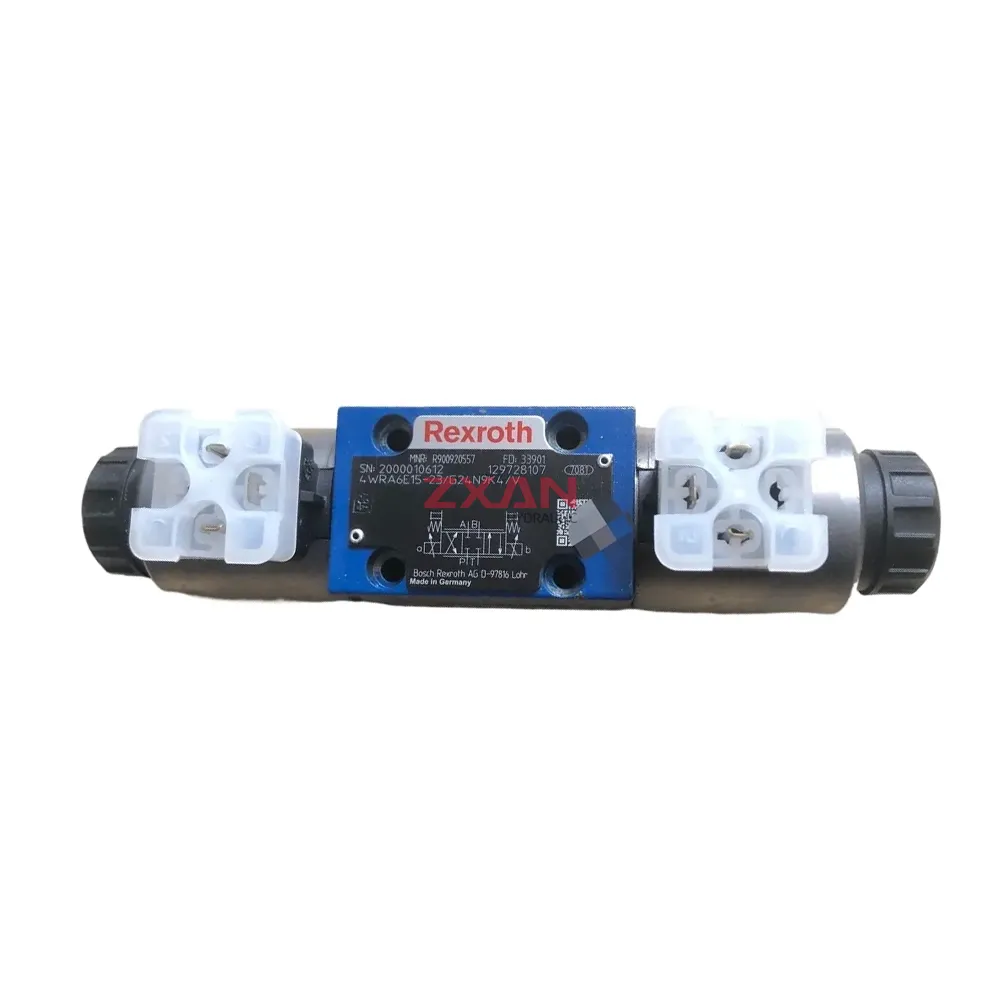

Rexroth 4wra6e15-23/g24n9k4/v r900920557
Type:Rexroth 4wra6e15-23/g24n9k4/v r900920557
Rexroth 4wra6e15-23/g24n9k4/v r900920557
The Rexroth 4WRA6E15-23/G24N9K4/V (Bosch Rexroth R900920557) is a direct operated proportional directional control valve, size NG6, designed for subplate mounting according to the ISO 4401-03-02-0-05 standard. This valve precisely controls the direction and magnitude of hydraulic fluid flow through proportional solenoid actuation and operates without electrical position feedback. The ‘E’ spool configuration ensures that ports P, A, B, and T are blocked in the spring-centered neutral position, providing P-A/B-T and P-B/A-T flow paths when the respective solenoids are energized. Key features include a 24V DC solenoid, no manual override (N9 designation), a K4 type electrical connector compliant with DIN EN 175301-803, and FKM (Viton) seals for compatibility with a wide range of hydraulic fluids and operating temperatures. This valve is well-suited for various industrial hydraulic applications requiring accurate flow control.
Technical Specifications:
- Valve Type: Direct operated proportional directional valve
- Model Series: 4WRA 6
- Size: NG6 (CETOP 03)
- Component Series: 2X (specifically 23)
- Spool Symbol: E (P, A, B, T blocked in mid-position; P→A/B→T and P→B/A→T when actuated)
- Mounting Interface: ISO 4401-03-02-0-05
- Actuation: Proportional solenoids with central thread and detachable coil
- Nominal Flow Rate: 15 l/min (at 10 bar pressure differential per control land)
- Maximum Operating Pressure (Ports P, A, B): 315 bar (4568 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Solenoid Voltage: 24V DC
- Electrical Connection: K4 – Connector according to DIN EN 175301-803 (mating connector not included)
- Seal Material: V (FKM – Fluoroelastomer)
- Position Feedback: Without electrical position feedback
- Manual Override: N9 (Without concealed manual override)
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524; other fluids on request
- Fluid Temperature Range: -20°C to +80°C (-4°F to +176°F) with FKM seals
- Viscosity Range: 2.8 to 500 mm²/s
| Brand | Rexroth |
|---|---|
| Model | 4wra6e15-23/g24n9k4/v r900920557 |
