Rexroth A10VSO71DR/31R-VPA42N00 R902482660
Model:Rexroth A10VSO71DR/31R-VPA42N00 R902482660
Rexroth A10VSO71DR/31R-VPA42N00 R902482660

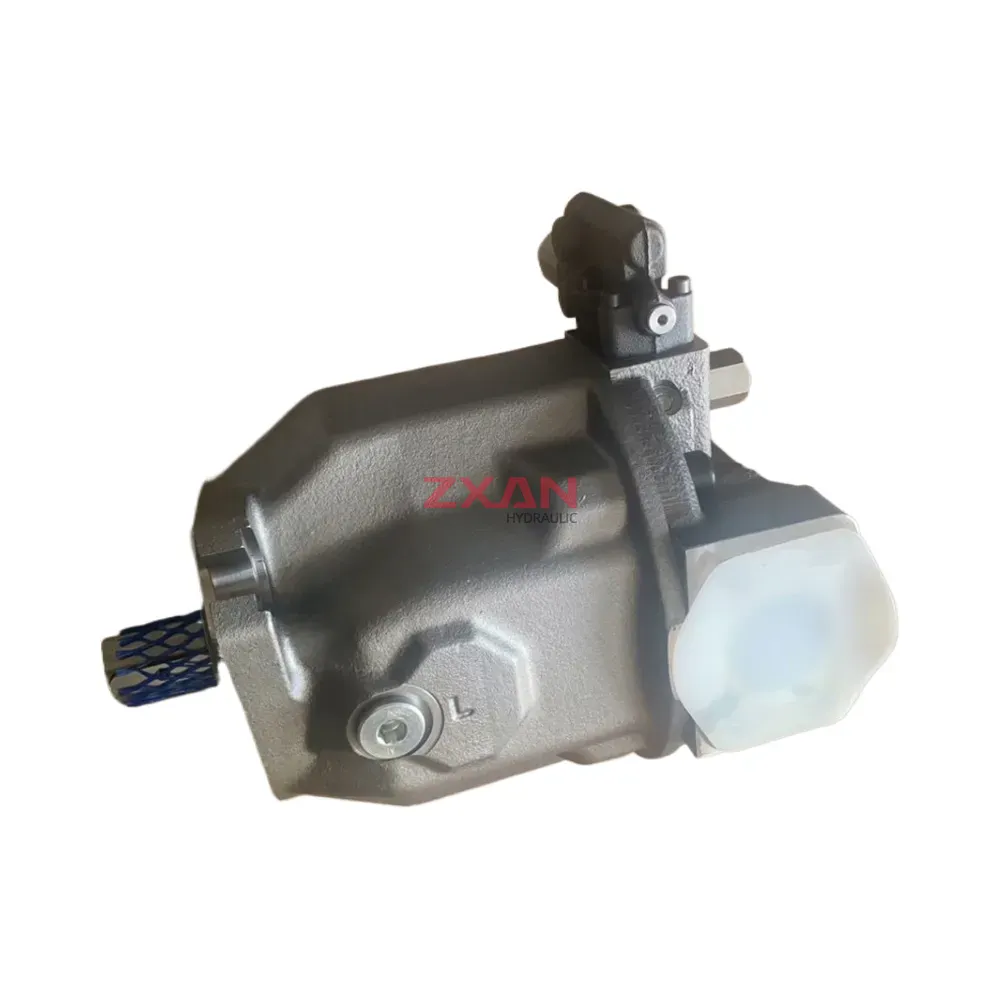

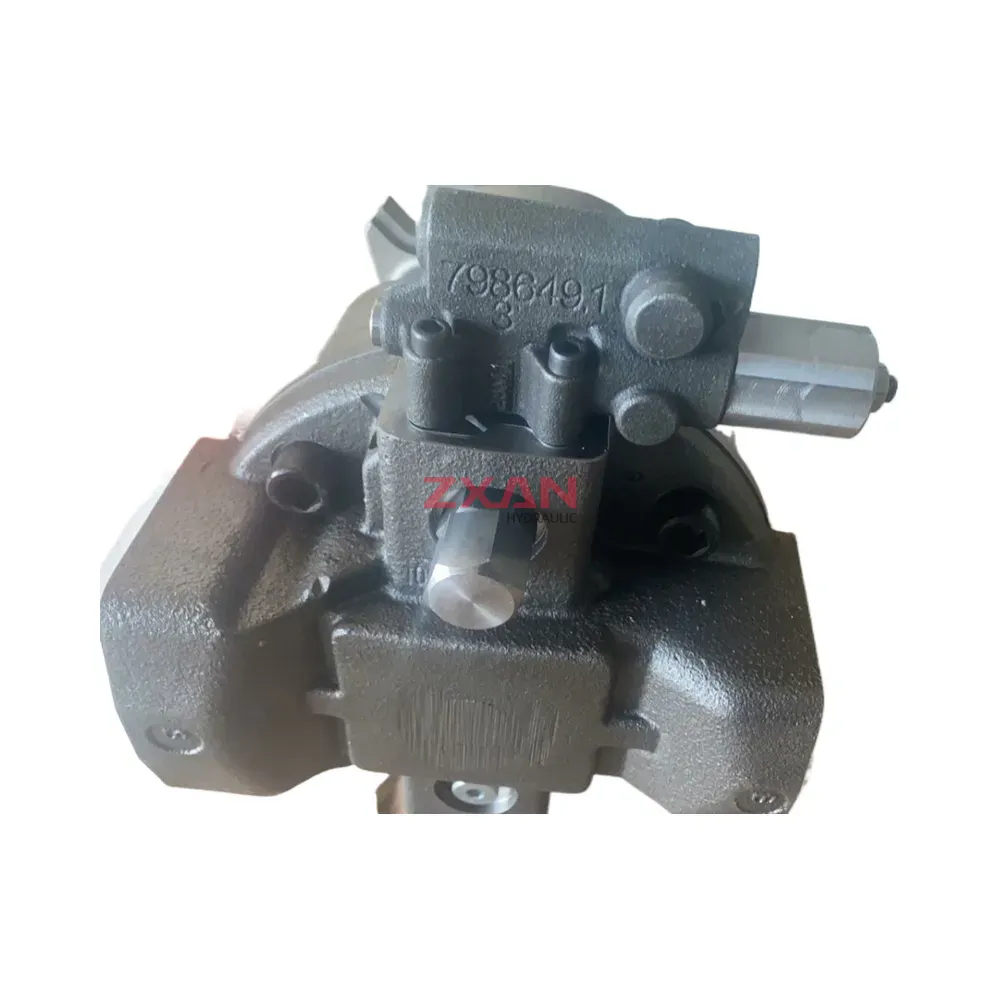

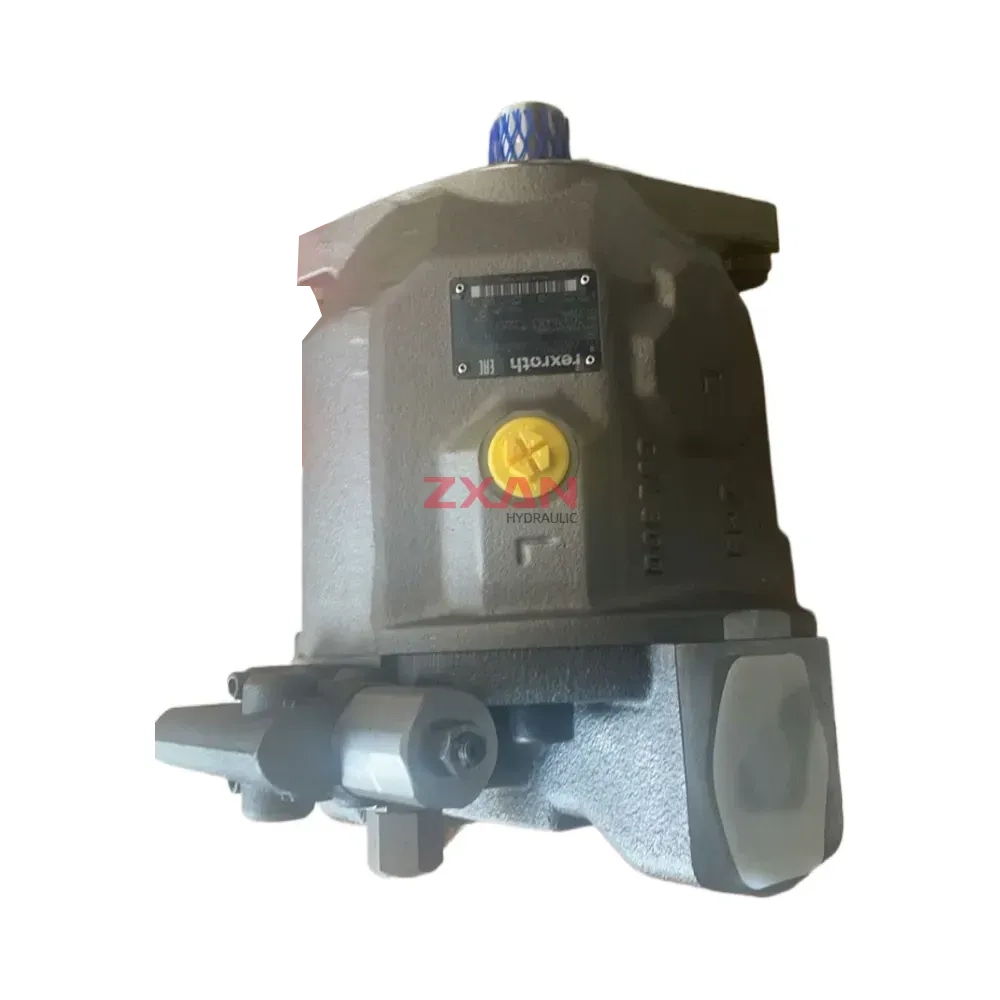

The Bosch Rexroth A10VSO71DR/31R-VPA42N00 is a variable displacement axial piston pump featuring a swashplate design, intended for hydrostatic drives within open circuit systems. This pump is widely recognized for its robust performance, high efficiency, and suitability for both industrial and mobile hydraulic applications. It incorporates a DR pressure controller for accurate system pressure regulation. Key benefits include low operating noise, long service life, and favorable power-to-weight ratio. This specific configuration (N00) does not include a through-drive capability.
Technical Specifications:
- Model Code: A10VSO71DR/31R-VPA42N00
- Part Number: R902482660
- Pump Type: Variable Displacement Axial Piston Pump (Swashplate design)
- Circuit Type: Open Circuit
- Displacement (Geometric): 71 cm³/rev
- Control Type: DR – Pressure Control
- Pressure Rating (Series 31): Nominal 280 bar (approx. 4061 psi), Peak 350 bar (approx. 5076 psi)
- Direction of Rotation: R – Right Hand (Clockwise, viewed from shaft end)
- Seal Material: V – FKM (Viton)
- Drive Shaft: P – Splined shaft SAE J744 13T 16/32DP
- Mounting Flange: A – SAE J744 2-bolt ‘C’ flange (ø127 mm spigot)
- Working Ports: 42 – SAE Flange ports, UNC thread, side opposite shaft end
- Through Drive: N00 – Without through drive
| Brand | Rexroth |
|---|---|
| Model | A10VSO71DR/31R-VPA42N00 R902482660 |
