Rexroth DBW30B2N56/315YS6EG24N9K4R12E R900776419
Model:Rexroth DBW30B2N56/315YS6EG24N9K4R12E R900776419
Rexroth DBW30B2N56/315YS6EG24N9K4R12E R900776419

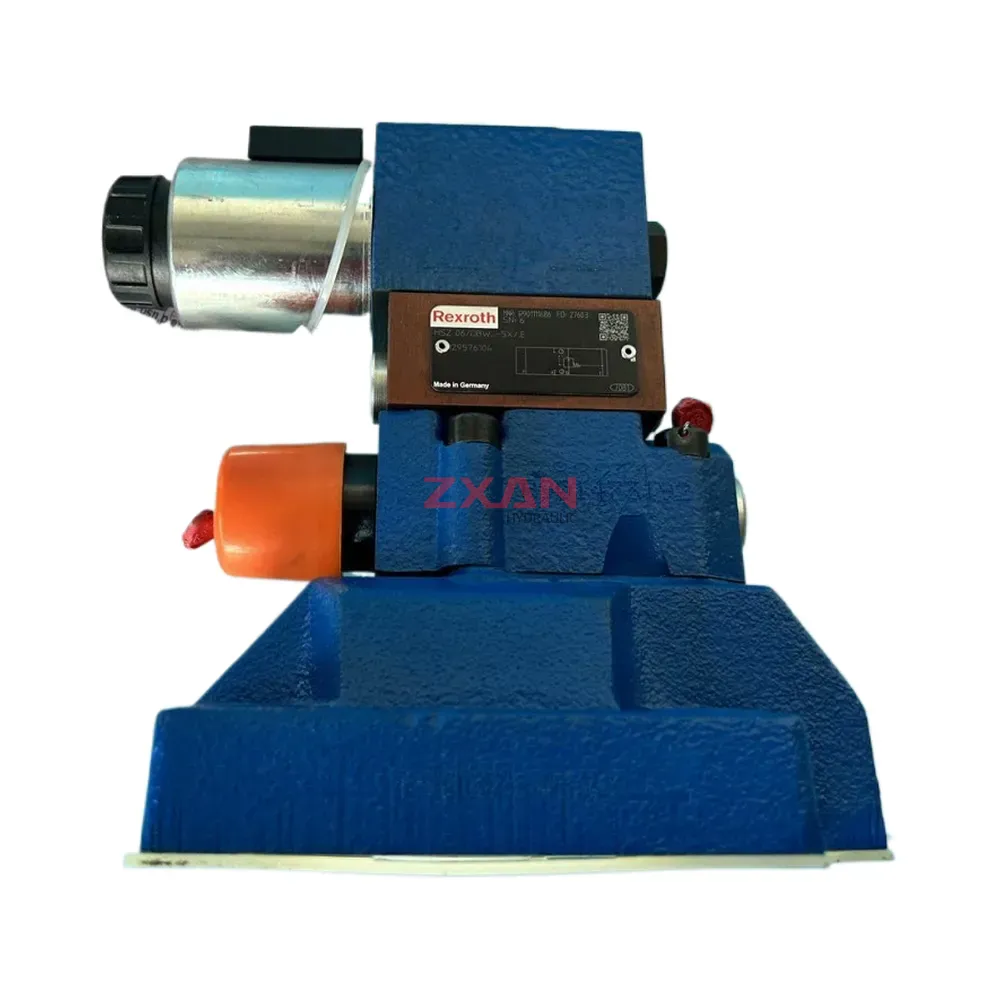

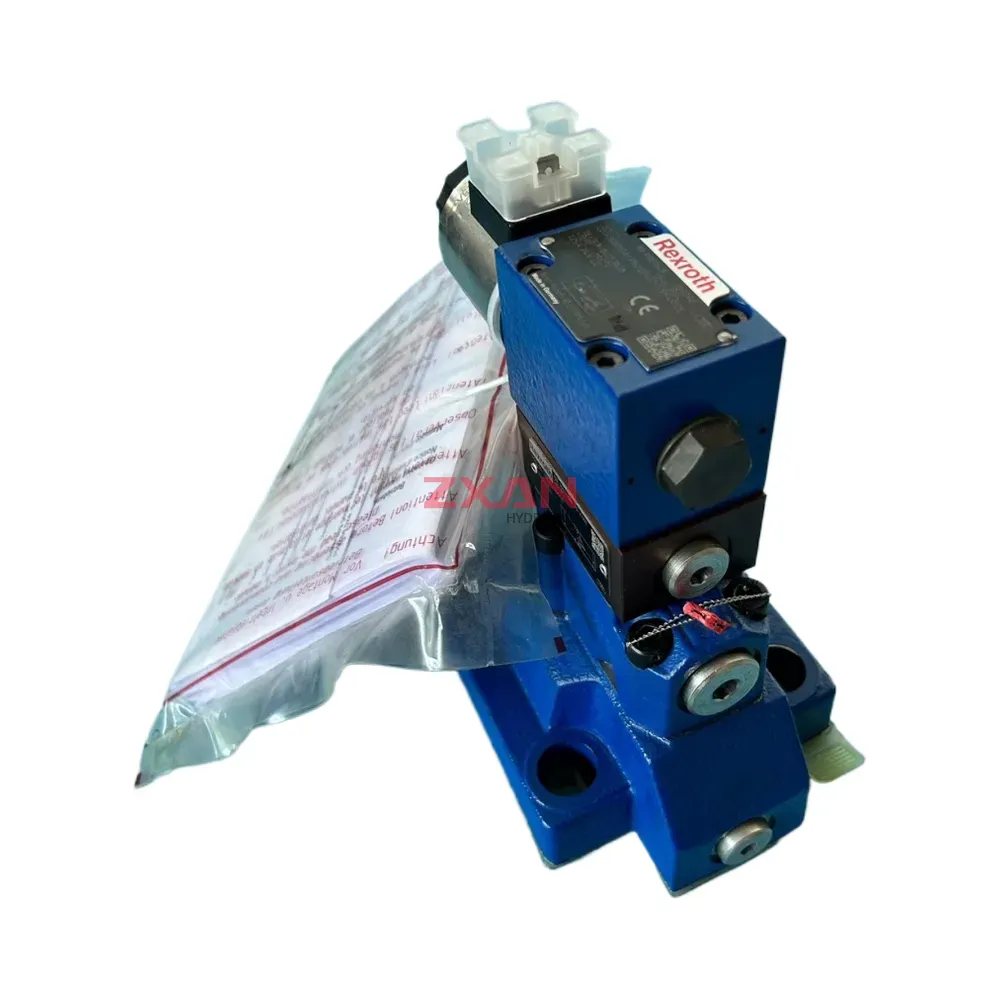

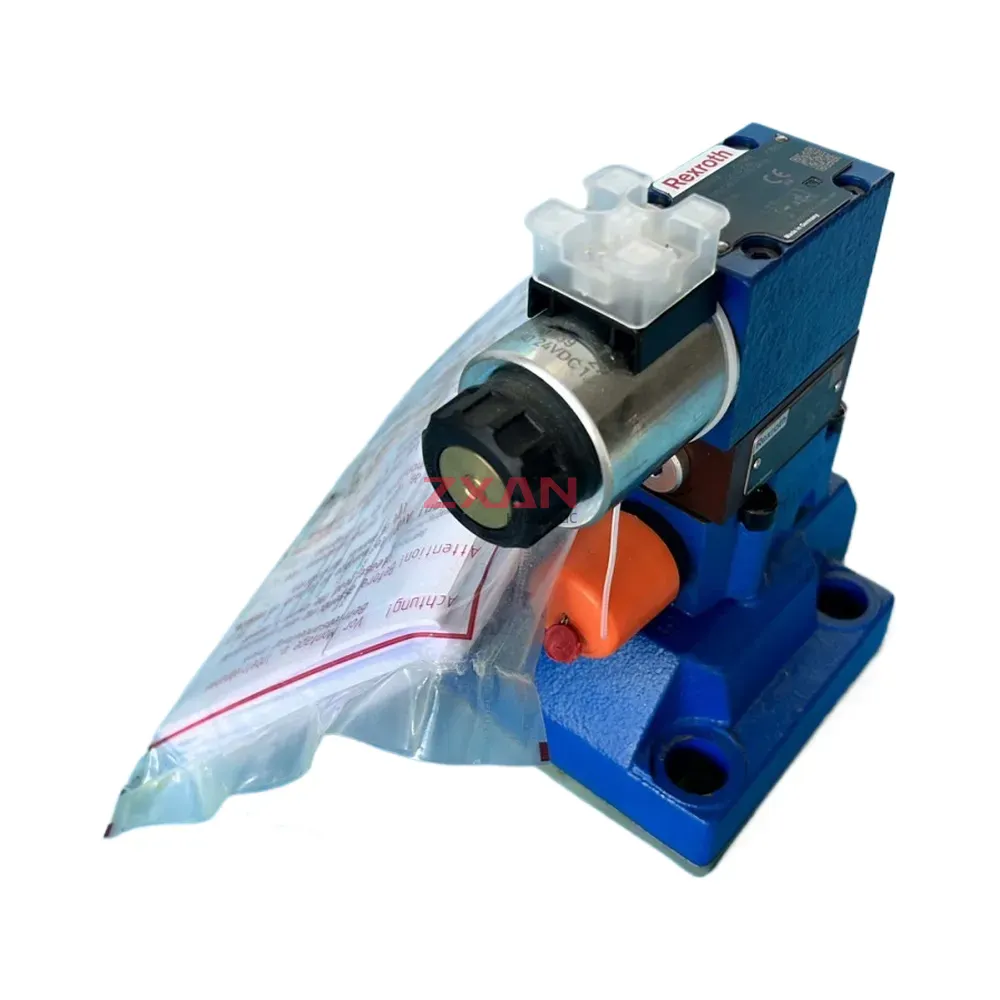

The Rexroth DBW30B2N56/315YS6EG24N9K4R12E is a pilot-operated pressure relief valve designed for limiting the operating pressure in hydraulic systems. It features subplate mounting according to ISO 6264 standards. This specific model includes a solenoid-actuated directional spool valve, allowing for pressure unloading or switching between pressure levels via an electrical signal. It is configured for external pilot oil drain and is suitable for applications requiring reliable pressure control with electrical actuation up to 315 bar.
Technical Specifications:
- Type: Pilot-operated pressure relief valve with switching solenoid (DBW)
- Size: NG32
- Mounting Interface: Subplate mounting
- Porting Pattern: ISO 6264-08-09-0-97 (Size 30/NG32)
- Pilot Oil Drain: External (Port Y)
- Check Valve: Without check valve in main flow path (N)
- Component Series: 5X (56)
- Maximum Pressure Setting: 315 bar
- Adjustment Type: Sleeve with hexagon and protective cap
- Solenoid Voltage: 24V DC (G24)
- Solenoid Manual Override: Without manual override (N9)
- Electrical Connection: Connector DIN EN 175301-803 (K4)
- Seals: FKM (R12 option typically indicates FKM seals)
- Solenoid Type: Wet-pin DC solenoid (E)
- Pilot Valve Type: S6 (Specific configuration)
| Brand | Rexroth |
|---|---|

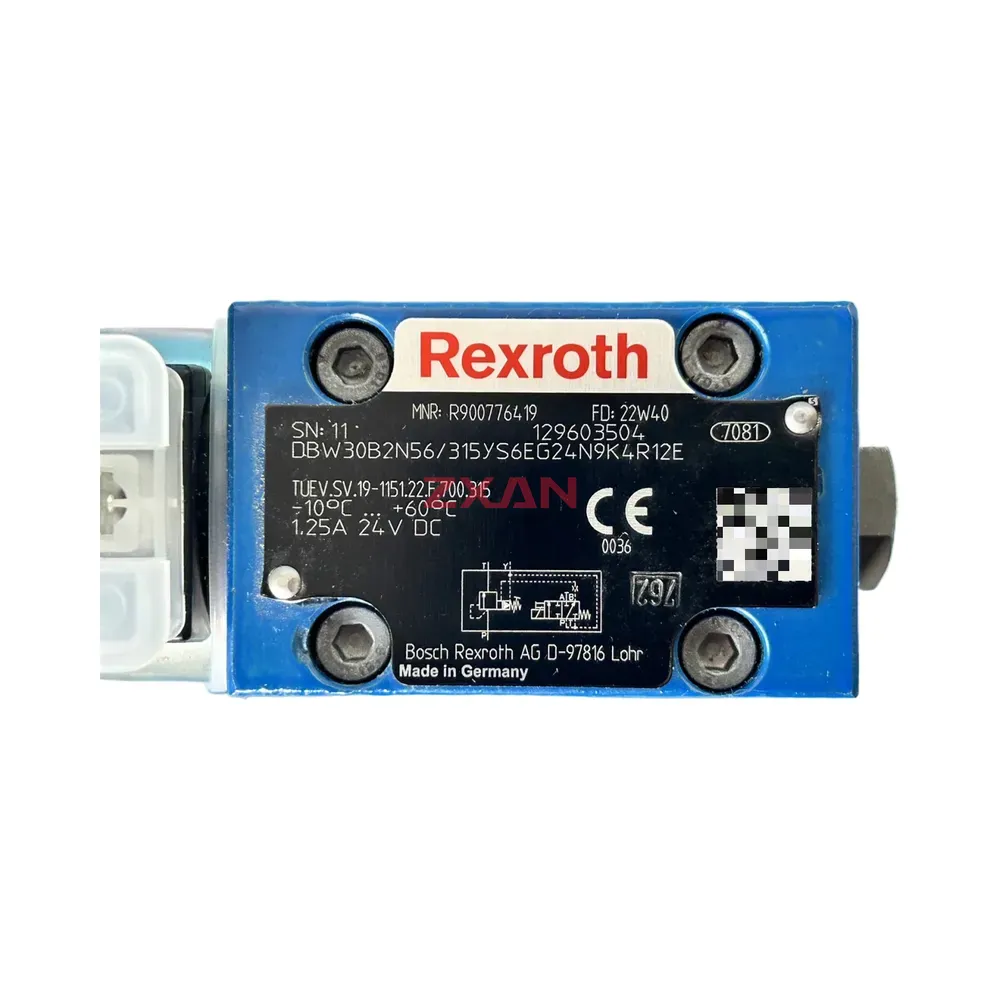

| Model | DBW30B2N56/315YS6EG24N9K4R12E R900776419 |
