Rexroth R900589933 4WE10 D33/CG24N9K4
Type:Rexroth R900589933 4WE10 D33/CG24N9K4
Rexroth R900589933 4WE10 D33/CG24N9K4

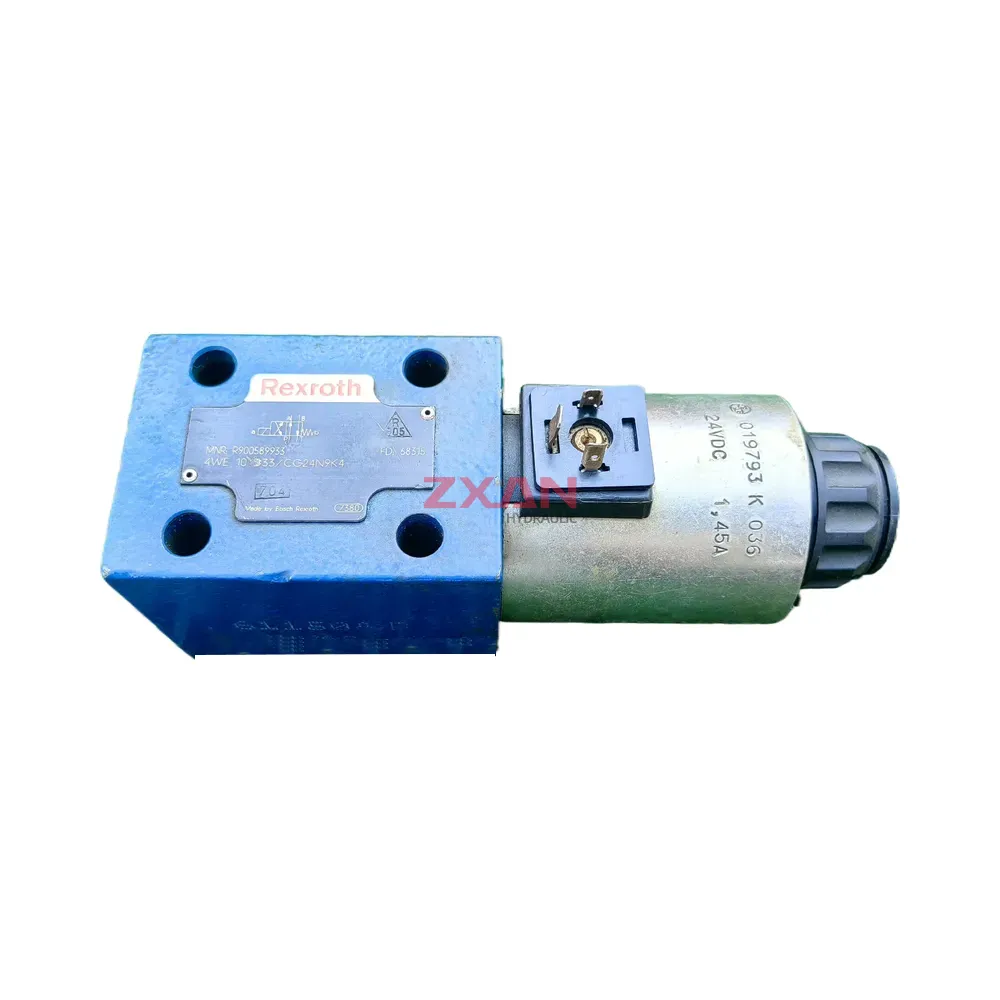

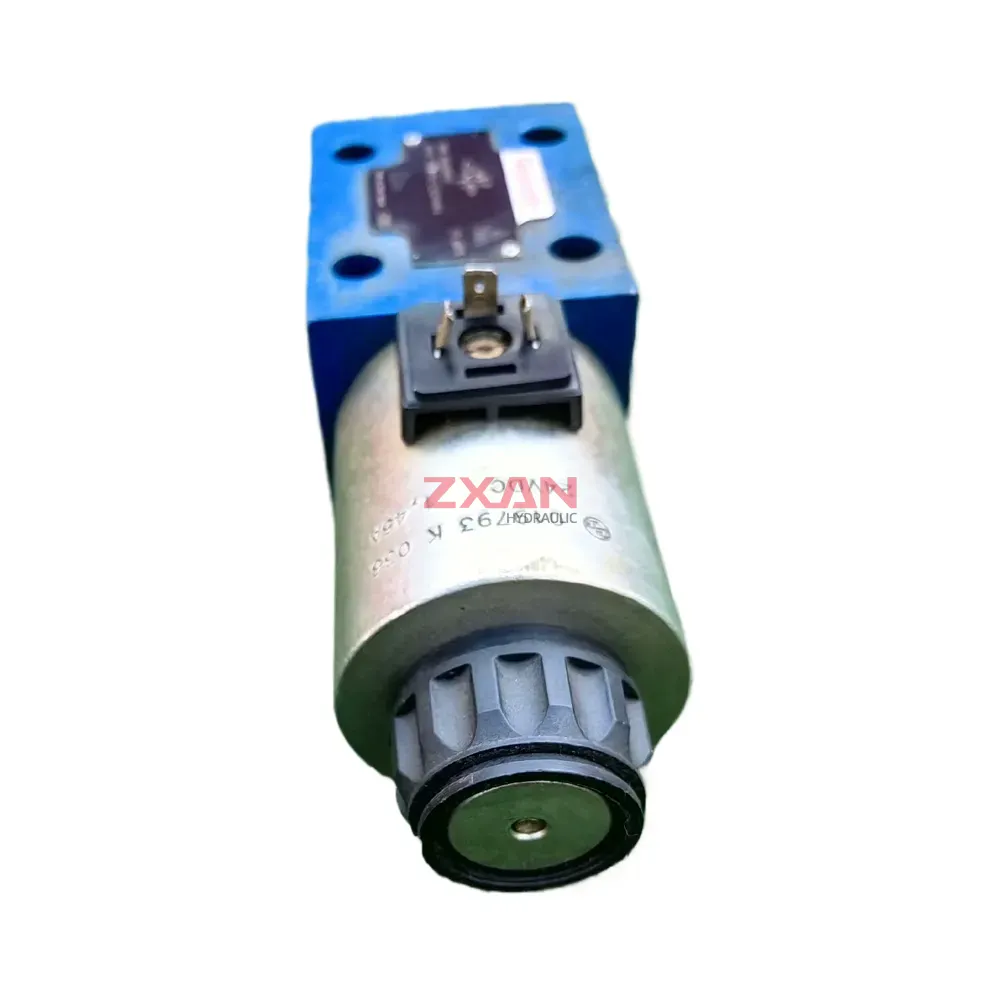

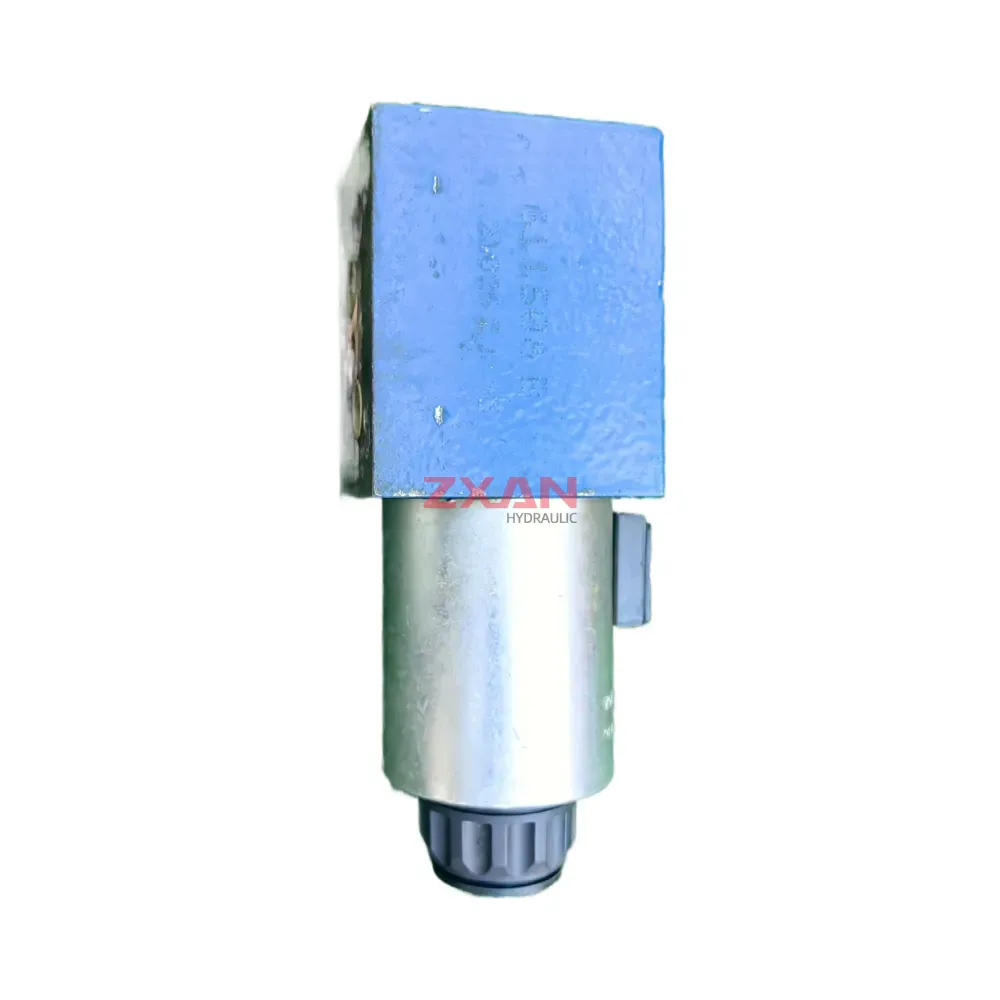

The Rexroth R900589933, model 4WE10 D33/CG24N9K4, is a high-performance, direct-operated directional spool valve with solenoid actuation. It is designed to control the start, stop, and direction of fluid flow in hydraulic systems. This valve belongs to the 4WE10 series, featuring an NG10 (CETOP 5) mounting interface and a “D” spool configuration, typically providing 3 positions and 4 ways. Actuation is achieved via a 24V DC solenoid (G24) equipped with a DIN EN 175301-803 electrical connector (K4 type), which includes an LED indicator and protective circuitry. The valve also incorporates a concealed manual override (N9) for emergency operations or system setup.
Technical Specifications:

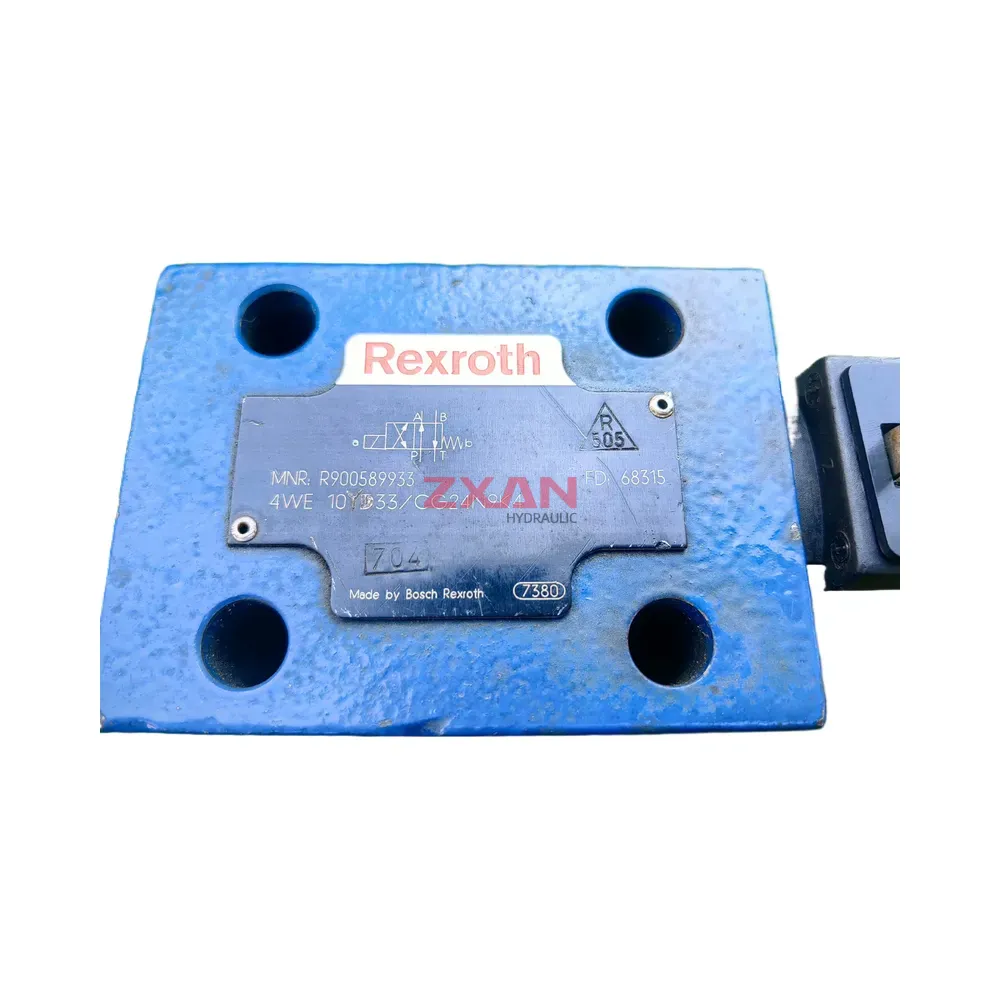

- Material Number: R900589933
- Type Designation: 4WE10 D33/CG24N9K4
- Valve Series: 4WE10
- Actuation Type: Solenoid, direct operated
- Size: NG10 (Nominal Size 10)

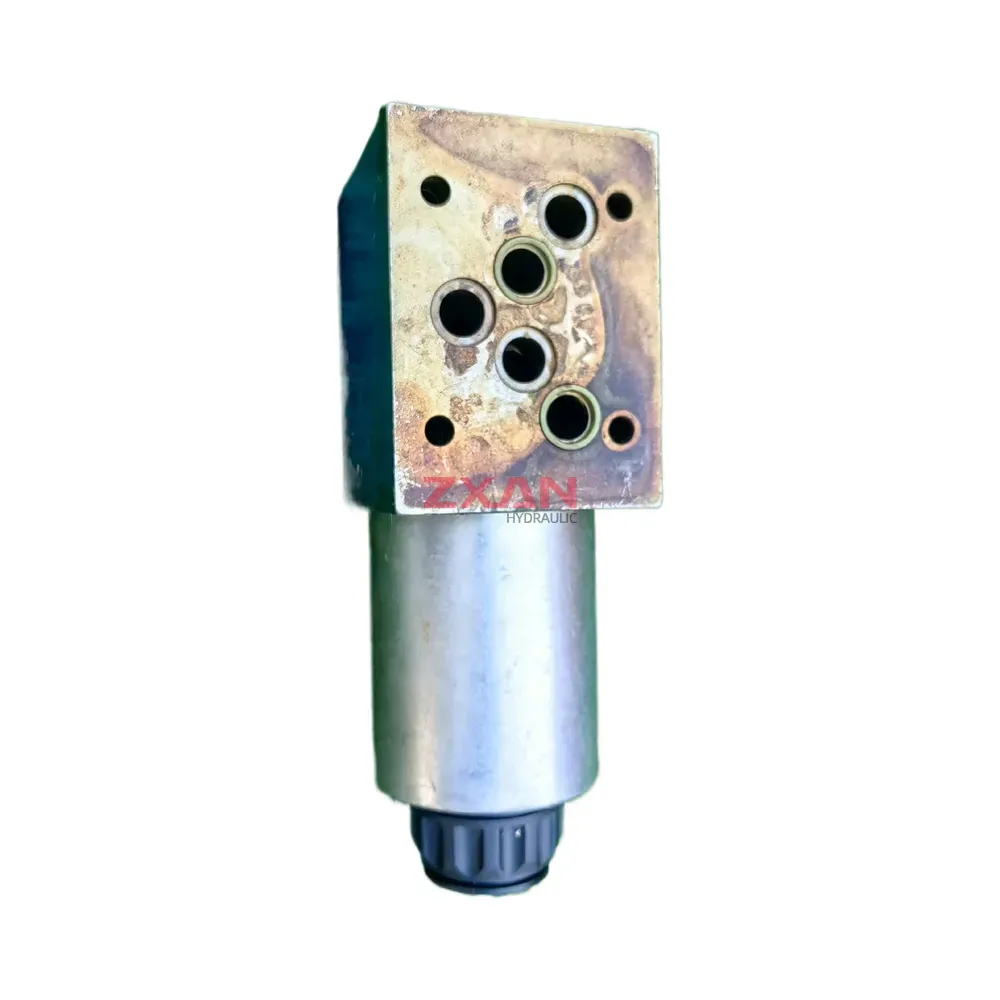

- Mounting Interface: ISO 4401-05-04-0-05 (CETOP RP121H R05, NFPA D05)
- Spool Symbol: D (Typically 3-position, 4-way, spring-centered, P-A/B-T in actuated positions, P,A,B,T blocked in center position)
- Number of Switching Positions: 3

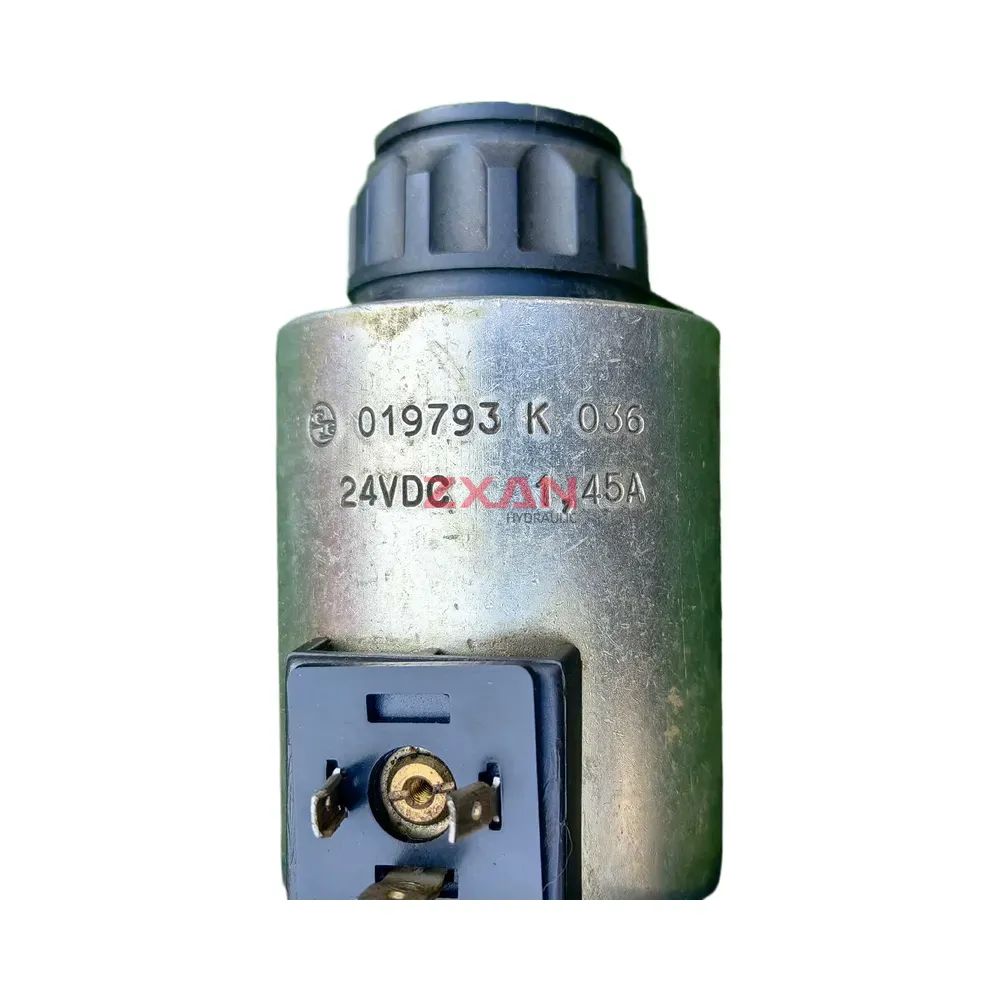

- Solenoid Voltage: 24V DC (G24)

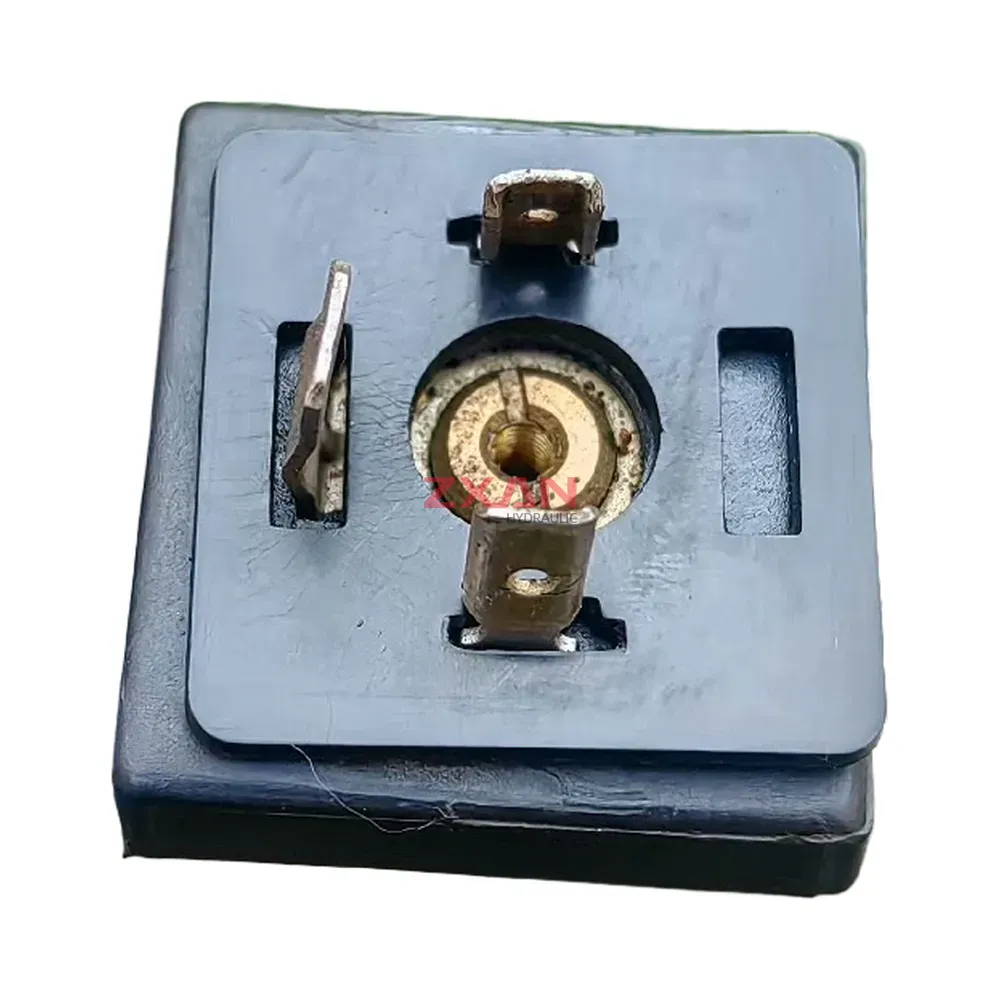

- Electrical Connector: K4 (Plug-in connector according to DIN EN 175301-803, Form A, with LED and protective circuit/suppressor diode, without mating connector)
- Manual Override: N9 (Concealed manual override)
- Maximum Operating Pressure (Ports P, A, B): 350 bar (5075 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi) for DC solenoids
- Maximum Flow Rate: Up to 120 l/min (31.7 GPM)
- Hydraulic Fluid Compatibility: Mineral oil (HL, HLP) according to DIN 51524; other fluids on request
- Fluid Temperature Range: -30°C to +80°C (-22°F to +176°F) (with standard NBR seals)
- Seals: NBR (Nitrile Butadiene Rubber) as standard
- Component Series: 33 (as per D33 designation)
| Brand | Rexroth |
|---|---|
| Model | R900589933 4WE10 D33/CG24N9K4 |
