Rexroth R900902095 4WRA6W30-23/G24N9K4/V
Type:Rexroth R900902095 4WRA6W30-23/G24N9K4/V
Rexroth R900902095 4WRA6W30-23/G24N9K4/V

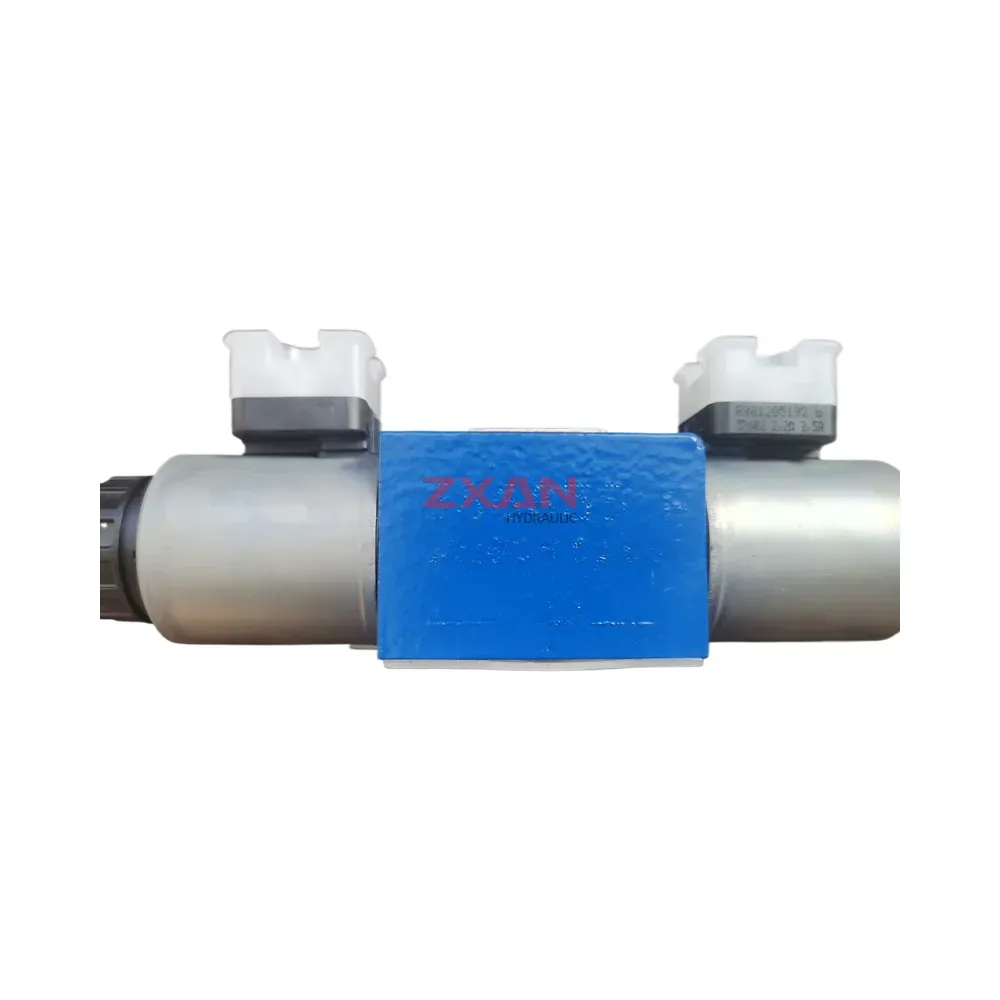

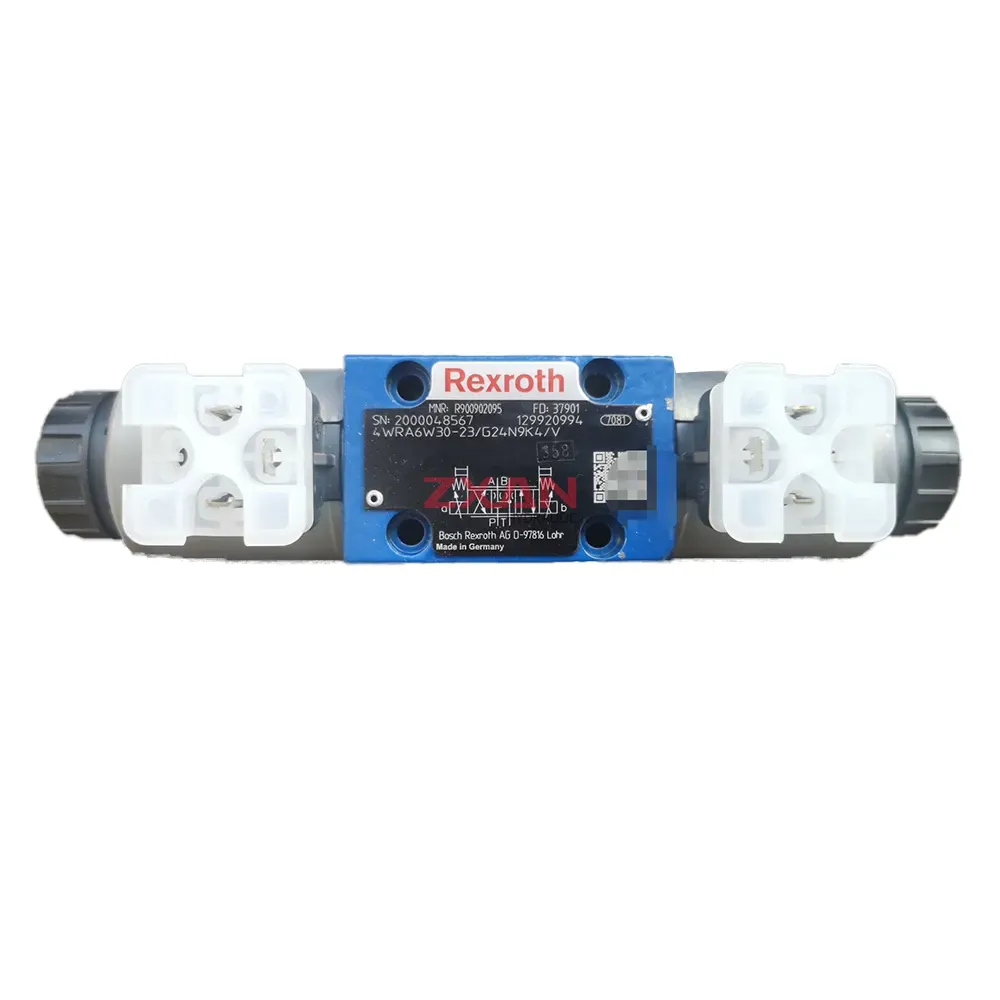

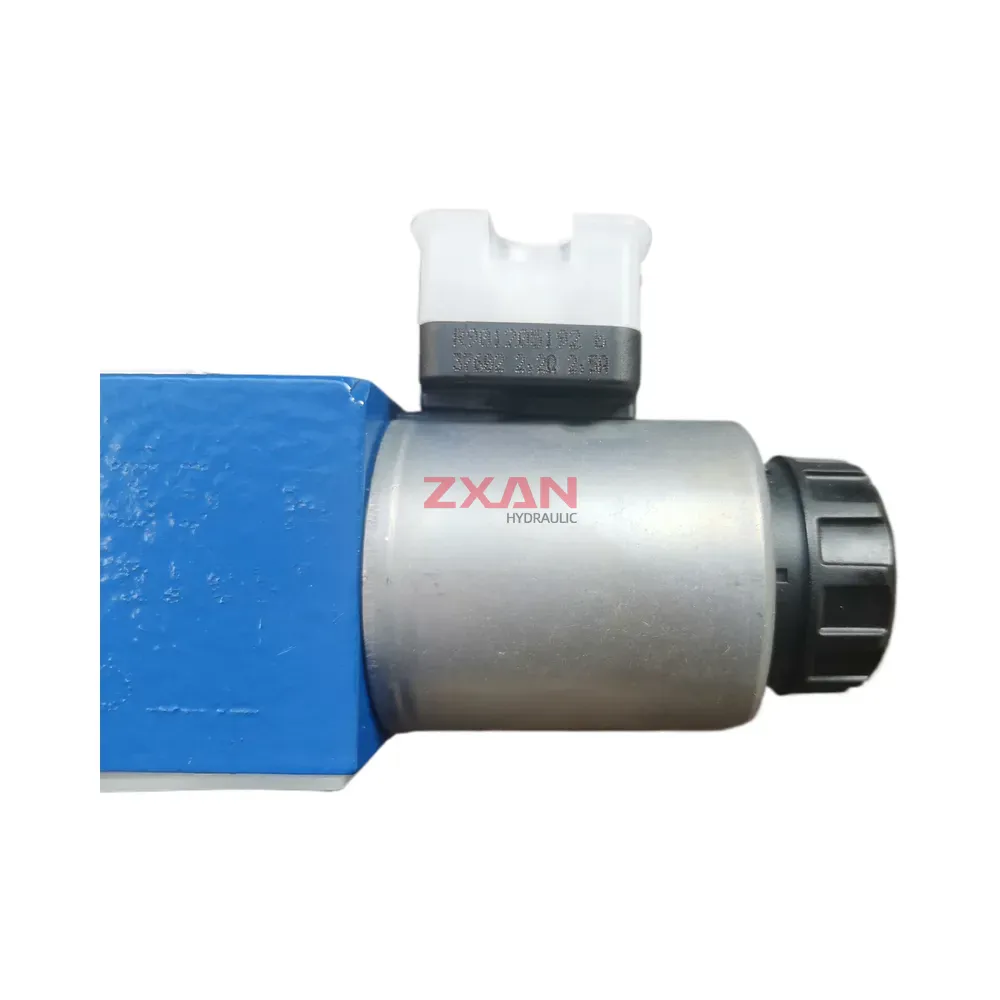

The Rexroth R900902095, model 4WRA6W30-23/G24N9K4/V, is a high-performance direct operated directional servo-solenoid valve. It features electrical position feedback for precise control of flow direction and magnitude in hydraulic systems. This valve is a size 6 component, equipped with a ‘W’ spool configuration, and is designed for a nominal flow rate of 30 liters per minute at a 10 bar pressure differential per control land. It operates with a 24V DC solenoid, utilizes FKM seals for broad fluid compatibility, and is configured without a manual override. The electrical connection is a standard DIN EN 175301-803 connector (mating connector not included).
Technical Specifications:
- Type: Directional servo-solenoid valve, direct operated, with electrical position feedback
- Model Series: 4WRA
- Size: NG6 (Nominal Size 6)
- Spool Symbol: W
- Nominal Flow Rate: 30 L/min (at 10 bar Δp per control land)
- Component Series: 2X (Version 23)
- Solenoid Voltage: 24V DC
- Manual Override: None (N9 designation)
- Electrical Connection: Plug-in connector to DIN EN 175301-803, Form A (K4), without mating connector
- Sealing Material: FKM (Viton)
- Maximum Operating Pressure (Ports P, A, B): 315 bar
- Maximum Operating Pressure (Port T, external drain Y): 210 bar
- Maximum Operating Pressure (Port T, internal drain): 160 bar (check specific configuration)
- Hydraulic Fluid Temperature Range: -20 °C to +80 °C (with FKM seals)
- Permissible Viscosity Range: 2.8 to 380 mm²/s
| Brand | Rexroth |
|---|---|
| Model | R900902095 4WRA6W30-23/G24N9K4/V |
