Rexroth R900948360 4WREE10W75-23/G24K31/F1V
Type:Rexroth R900948360 4WREE10W75-23/G24K31/F1V
Rexroth R900948360 4WREE10W75-23/G24K31/F1V

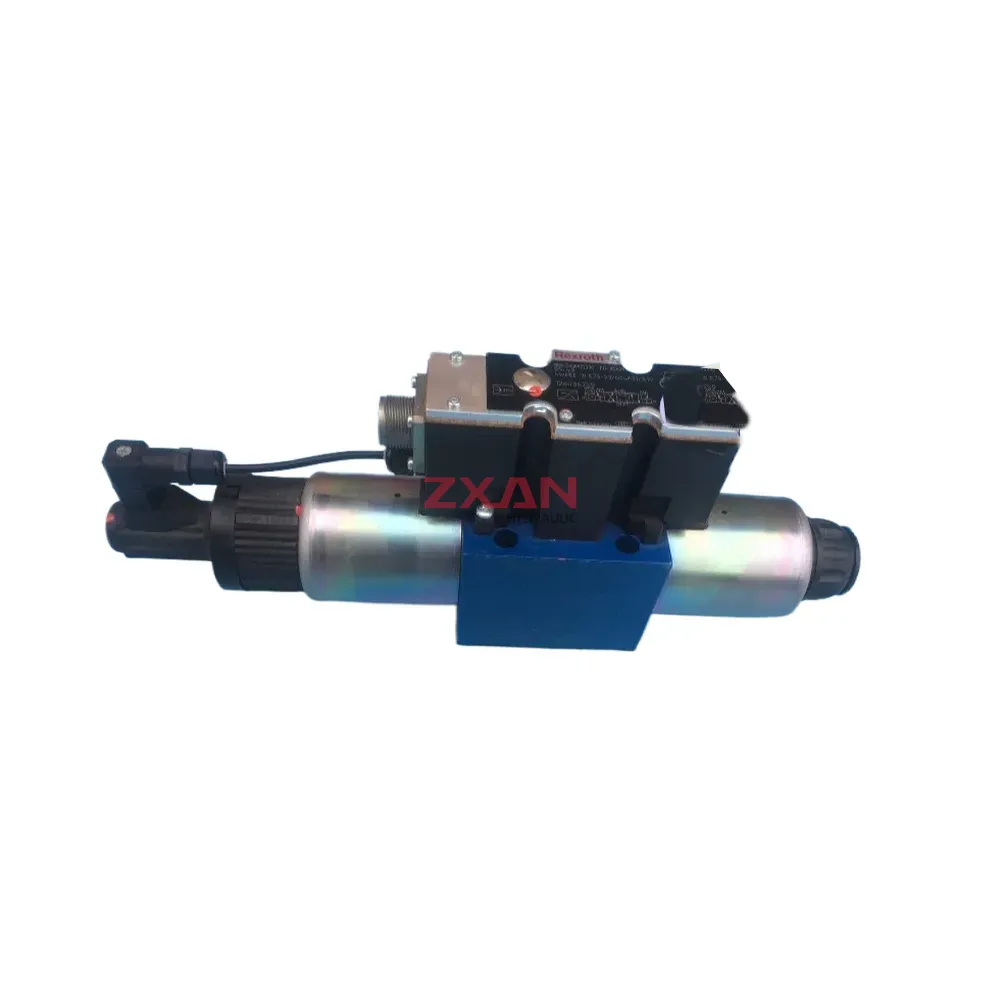

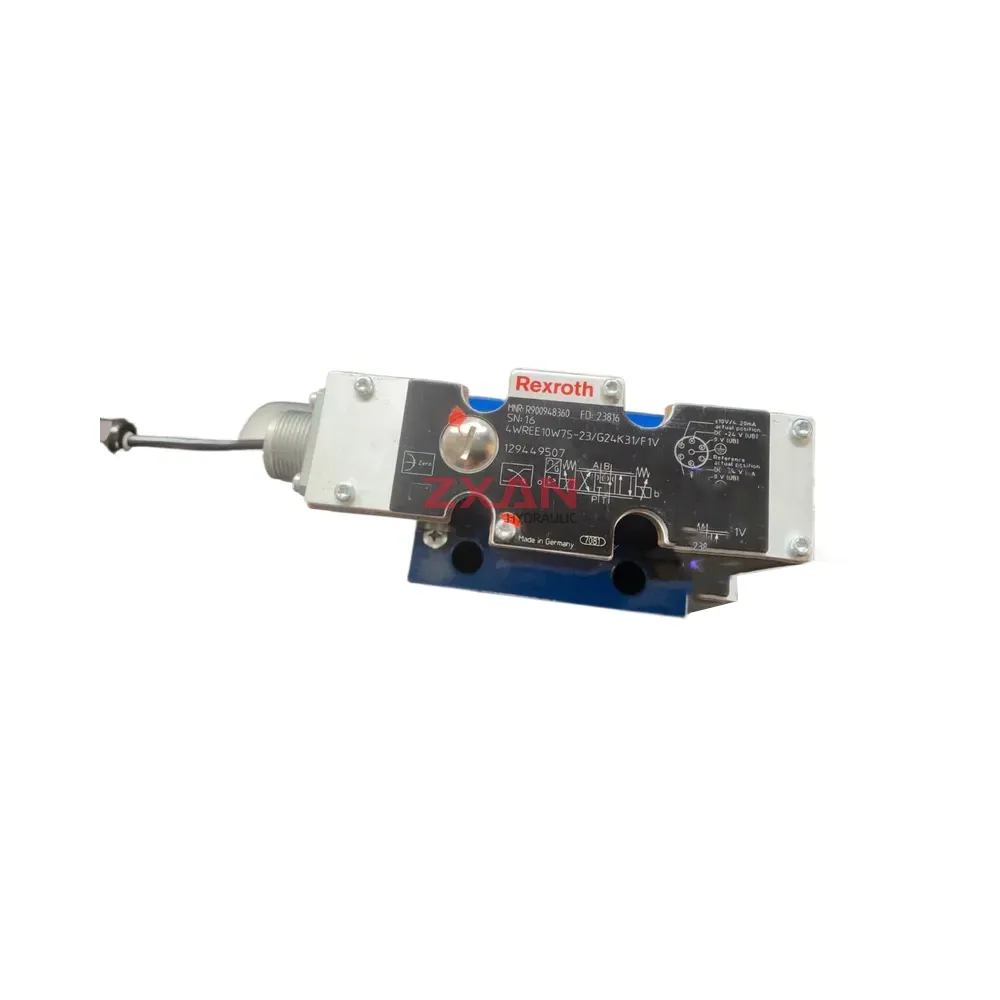

The Rexroth R900948360, model 4WREE10W75-23/G24K31/F1V, is a high-performance direct operated directional control valve with integrated digital electronics (OBE) and electrical position feedback of the spool. This size 10 valve is designed for precise electrohydraulic control in demanding applications. It features a ‘W’ spool configuration, providing specific flow paths, and is capable of handling a nominal flow rate of 75 liters per minute at a 1 MPa (10 bar) pressure differential per control land. The valve operates with a 24V DC supply voltage and accepts a 4-20 mA analog command signal for proportional control of flow direction and magnitude. Equipped with FKM seals, it is suitable for a wide range of hydraulic fluids and operating temperatures. The integrated electronics ensure accurate spool position control, contributing to high repeatability and system stability.
Technical Specifications:
- Valve Type: Direct operated directional servo-solenoid valve with electrical position feedback
- Model Code: 4WREE10W75-23/G24K31/F1V
- Manufacturer: Bosch Rexroth
- Size: NG10 (Nominal Size 10)
- Mounting Pattern: ISO 4401-05-04-0-05
- Spool Symbol: W
- Nominal Flow Rate: 75 l/min (at 1 MPa / 10 bar pressure differential per control land)
- Component Series: 2X (specifically 23)
- Solenoid Voltage: 24V DC
- Electrical Connection: Connector DIN EN 175201-804, 4-pole (without mating connector), with integrated electronics (OBE)
- Command Signal Input: 4 to 20 mA (for integrated electronics)
- Seal Material: FKM (Viton)
- Maximum Operating Pressure (Ports P, A, B): 315 bar (4568 psi)
- Maximum Operating Pressure (Port T, with external drain Y): 210 bar (3045 psi)
- Hydraulic Fluid Temperature Range: -20°C to +80°C (-4°F to +176°F) with FKM seals
- Integrated Electronics (OBE): Yes, with position feedback
| Brand | Rexroth |
|---|---|
| Model | R900948360 4WREE10W75-23/G24K31/F1V |
