Rexroth R901483246 Z3DREE10VP2-1X/200XLG24K31A1M
Type:Rexroth R901483246 Z3DREE10VP2-1X/200XLG24K31A1M
Rexroth R901483246 Z3DREE10VP2-1X/200XLG24K31A1M

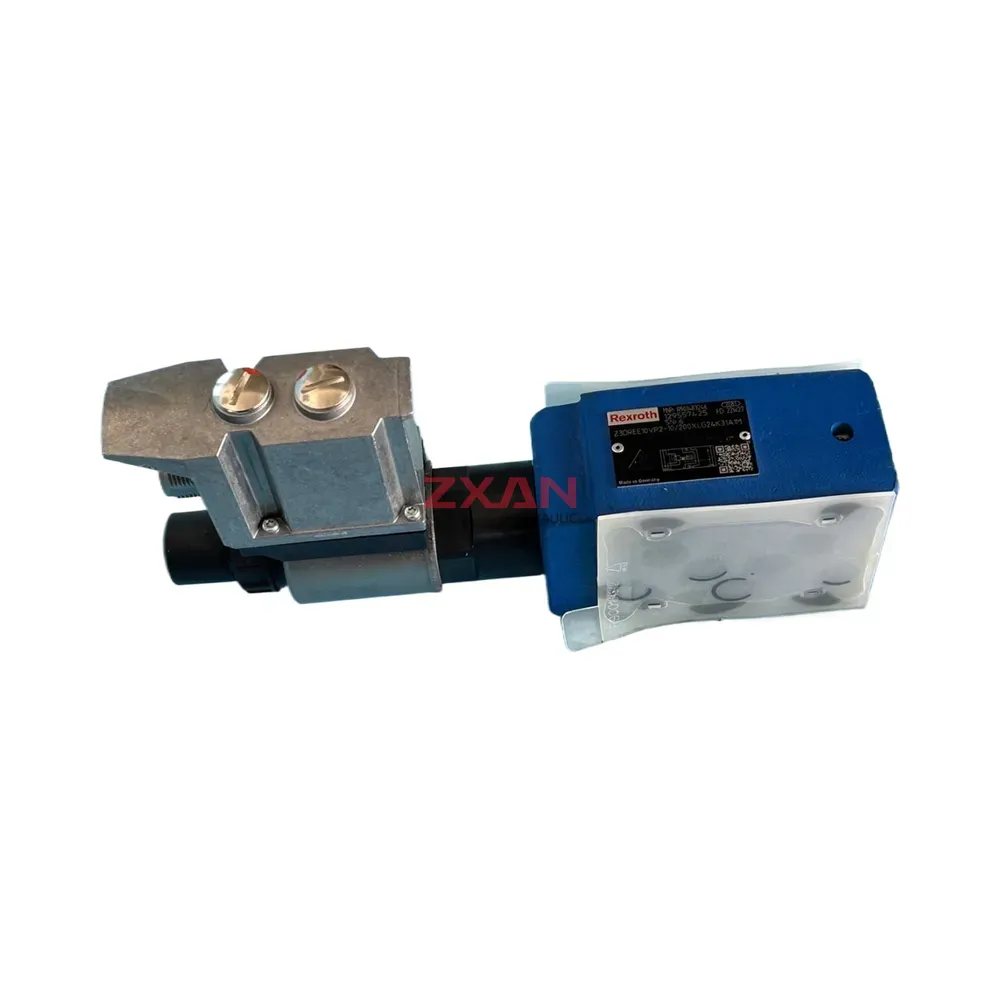

The Rexroth R901483246 Z3DREE10VP2-1X/200XLG24K31A1M is a direct operated 3-way proportional pressure reducing valve. It is designed for subplate mounting with a porting pattern according to ISO 4401-05-04-0-05 (NG10). This valve precisely controls the pressure in port A by reducing the inlet pressure from port P, allowing for continuous adjustment of the reduced pressure via a proportional solenoid. It is suitable for hydraulic systems requiring accurate and dynamic pressure regulation. This specific model features a maximum pressure setting of 200 bar and operates on a 24V DC supply.
Technical Specifications:
- Product Name: Rexroth Z3DREE10VP2-1X/200XLG24K31A1M
- Part Number: R901483246
- Valve Type: 3-way proportional pressure reducing valve, direct operated
- Series: Z3DREE
- Size: 10 (NG10)
- Mounting Interface: ISO 4401-05-04-0-05
- Actuation Type: Proportional solenoid
- Pressure Function: Pressure reduction in port P, flow P → A
- Maximum Adjustable Pressure (Port A): 200 bar
- Component Series: 1X
- Solenoid Voltage: 24V DC
- Electrical Connection: Connector DIN EN 175201-804 (4-pin), with LED, without mating connector (order separately)
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Maximum Operating Pressure (Port P): 315 bar
- Maximum Flow: Approximately 40 L/min (consult datasheet for specific application conditions)
- Hydraulic Fluid Temperature Range: -20°C to +80°C (with NBR seals)
- Manual Override: No (Without manual override)
- Additional Features: Without check valve, without pressure gauge connection
| Brand | Rexroth |
|---|---|
| Model | R901483246 Z3DREE10VP2-1X/200XLG24K31A1M |
