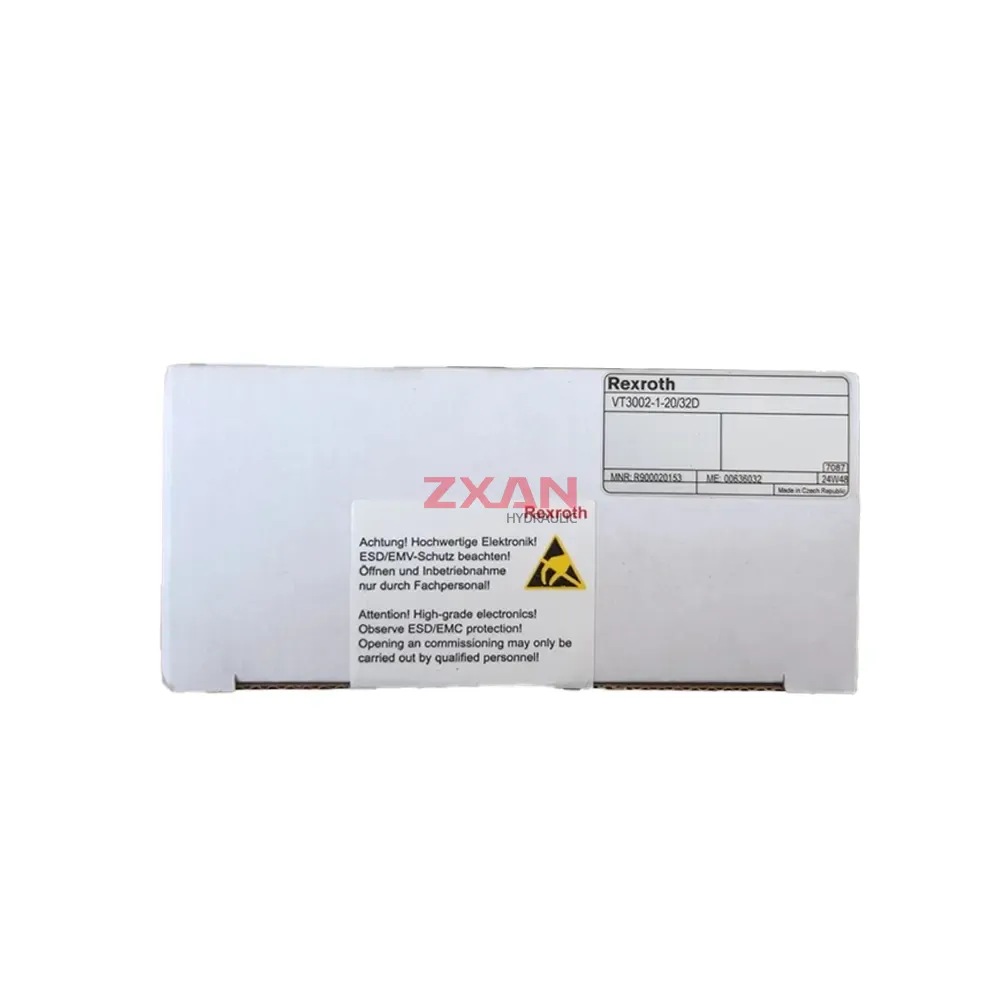

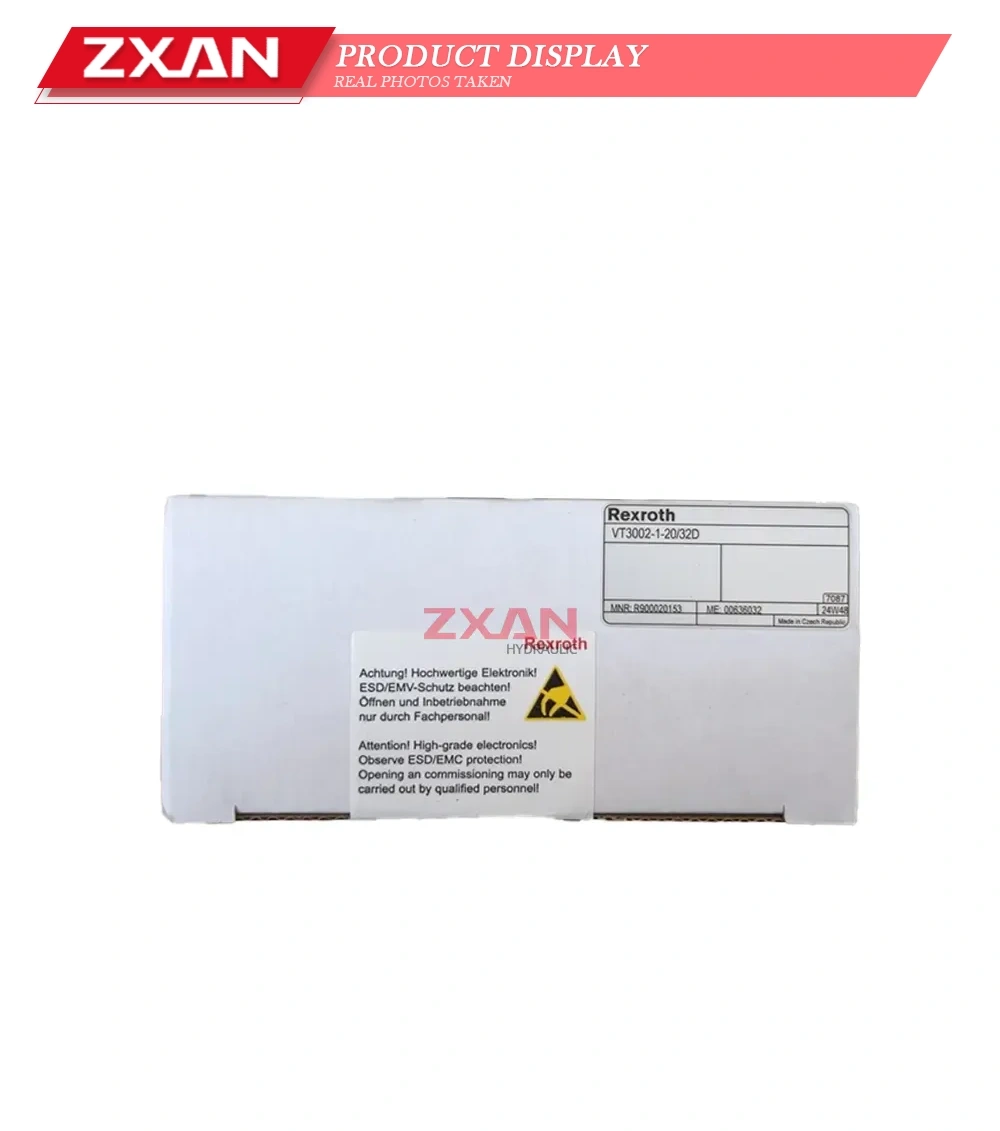

Rexroth VT3002-1-20/32D Electronic Amplifier Card
Purchase the genuine Rexroth VT3002-1-20/32D (R900020153) electronic amplifier card. This 24V DC Eurocard is designed for controlling proportional hydraulic valves, featuring PWM outputs and a ramp generator for precise industrial control.
Rexroth VT3002-1-20/32D Electronic Amplifier Card
The Bosch Rexroth VT3002-1-20/32D is a high-performance analog amplifier card designed in the standard Eurocard format. It is engineered for the precise control of proportional directional valves that do not have electrical position feedback. This card features a differential amplifier input, adjustable ramp times for smooth acceleration and deceleration, and pulse-width modulated (PWM) output stages for efficient solenoid operation. Equipped with robust ESD/EMC protection and short-circuit proof outputs, the VT3002-1-20/32D ensures reliable and safe performance in demanding industrial hydraulic applications. LED indicators provide clear status updates for power and solenoid activity, simplifying diagnostics and commissioning.
Technical Specifications:
- Component Series: 1X (10 to 19)
- Supply Voltage: 24 V DC
- Card Format: Eurocard 100 x 160 mm
- Application: For proportional directional valves without electrical position feedback (e.g., 4WRA, 4WRE, 4WRZ)
- Input: Differential amplifier for voltage or current signals
- Output: Pulse-width modulated (PWM) signals for solenoids
- Connector: 32-pin male connector, type F, according to DIN 41612
- Features: Adjustable ramp generator, command value attenuator, short-circuit protection, LED status indicators
| Brand | Rexroth |
|---|---|
| Model | VT3002-1-20/32D |
