Rexroth Z3DREE10VP2-1X/200XLG24K31F1V R901520390
Model:Rexroth Z3DREE10VP2-1X/200XLG24K31F1V R901520390
Rexroth Z3DREE10VP2-1X/200XLG24K31F1V R901520390

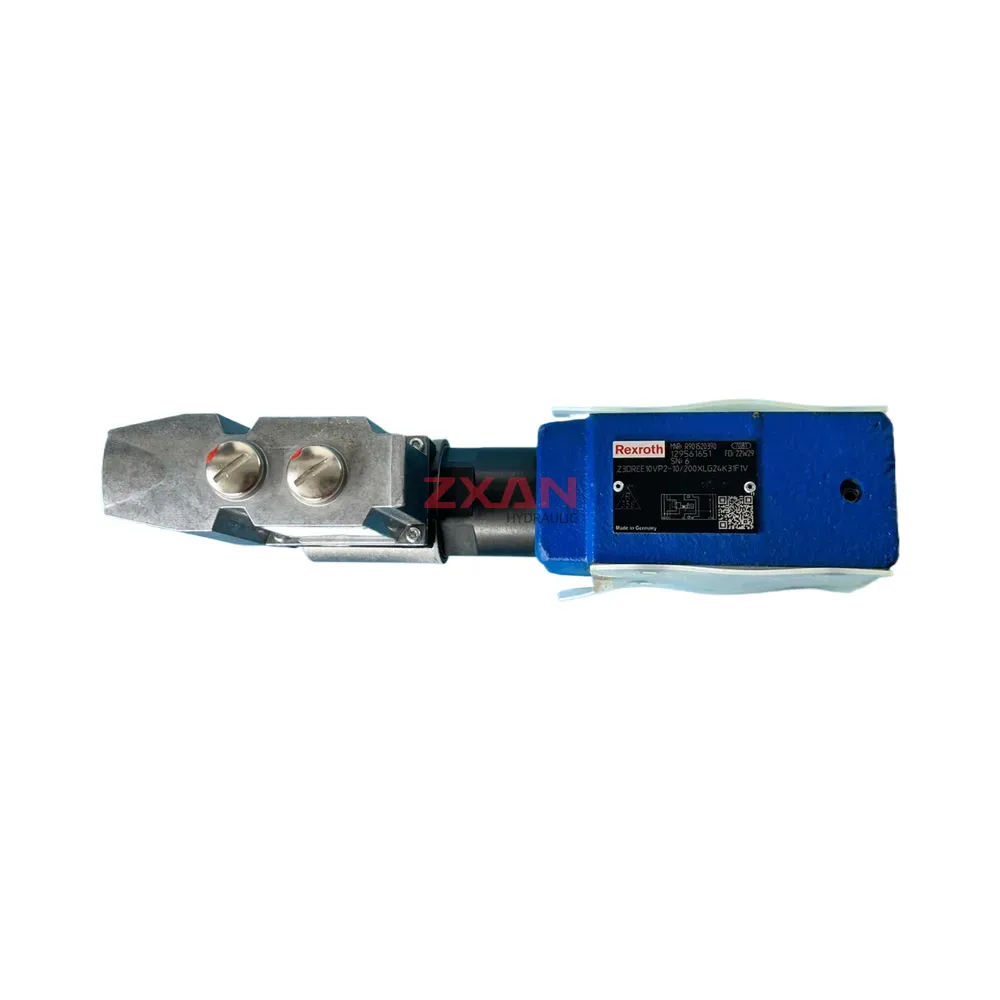

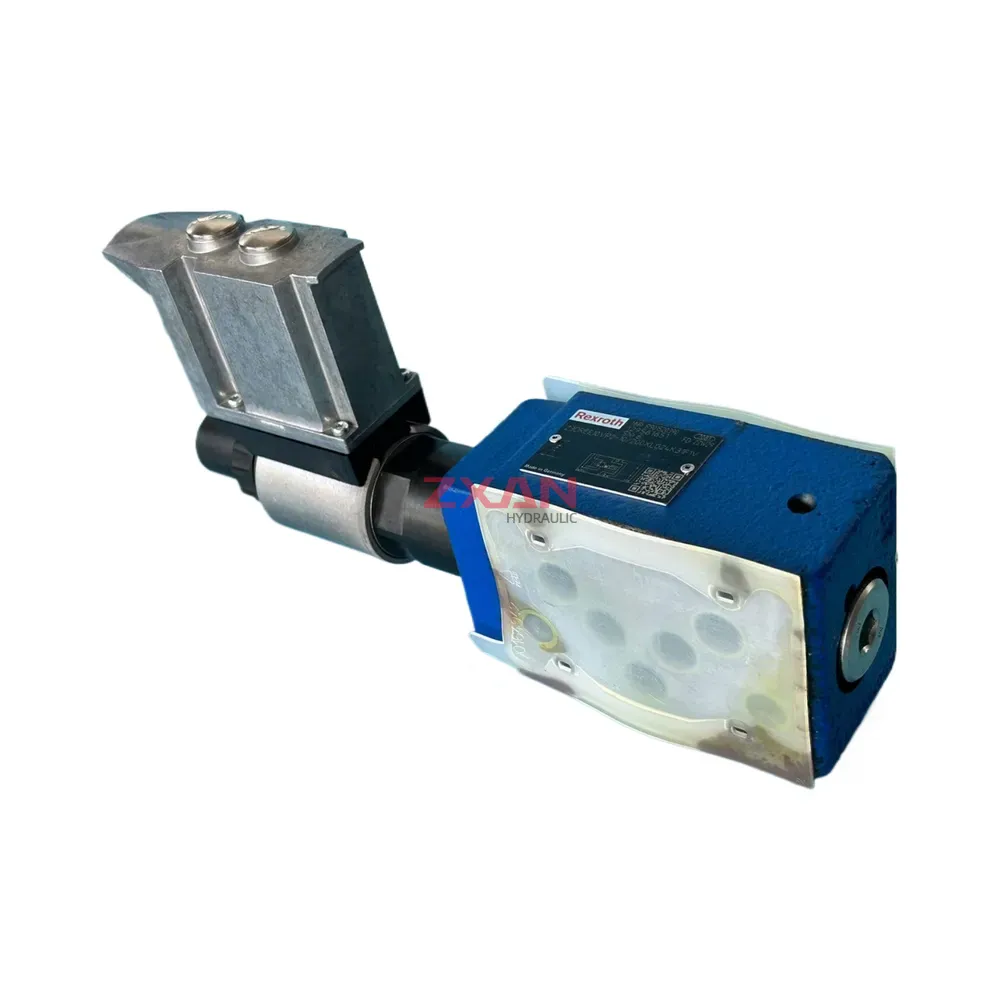

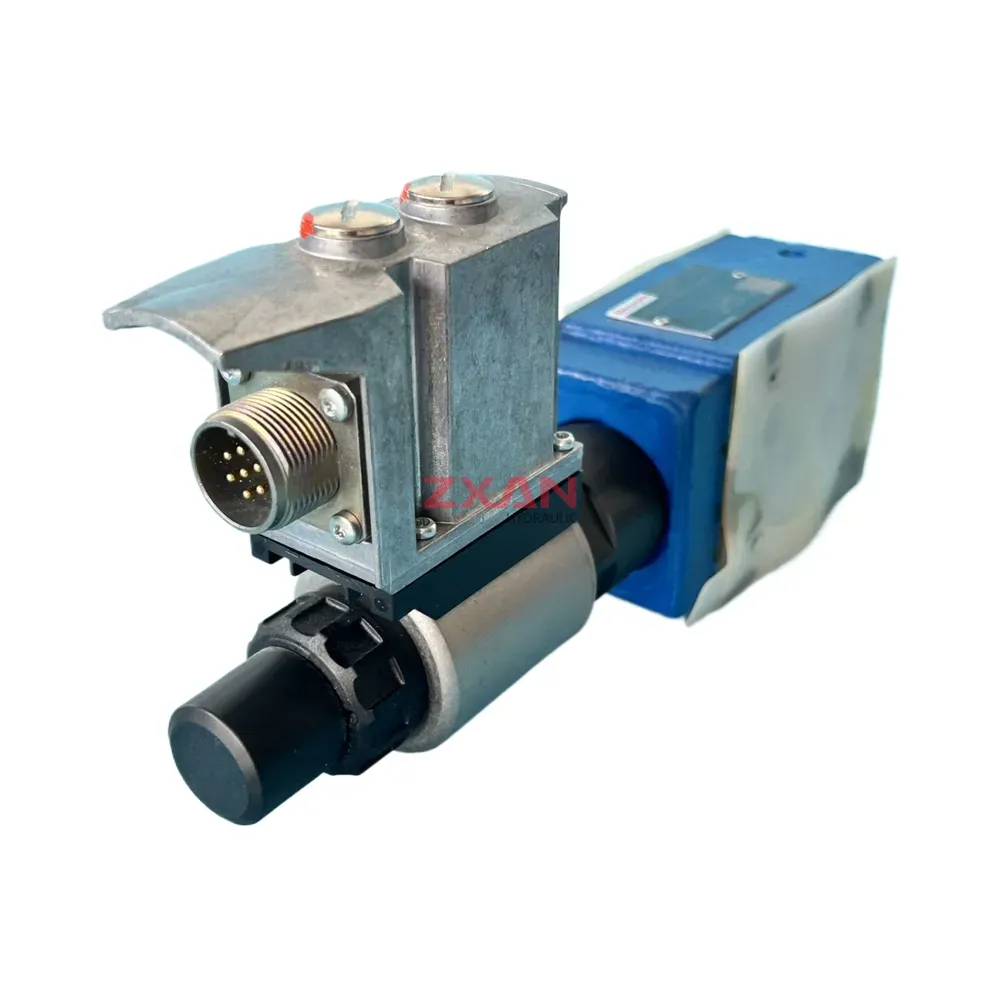

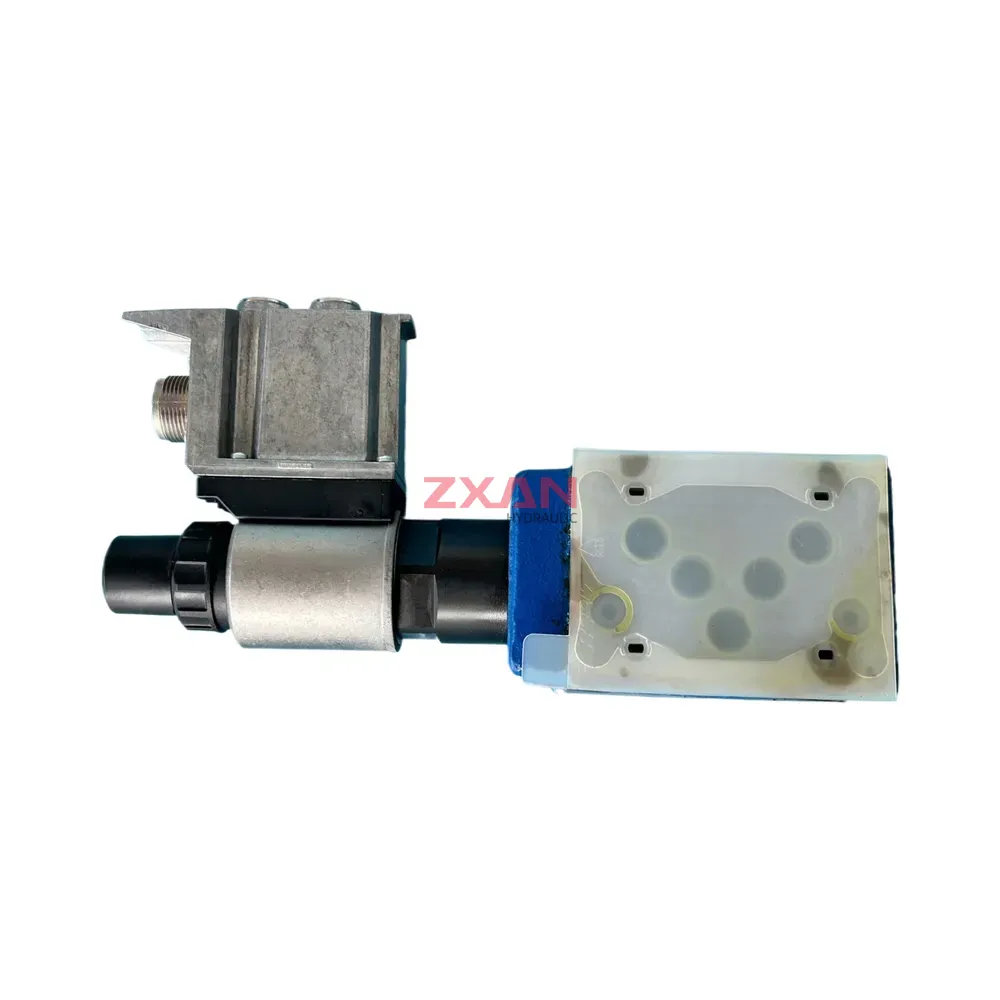

The Rexroth Z3DREE10VP2-1X/200XLG24K31F1V is a direct operated 3-way proportional pressure reducing valve with integrated electronics (OBE) and electrical position feedback. Designed for subplate mounting according to ISO 4401 standards, this valve provides precise, stepless control of the reduced pressure in port A based on the command value signal. It features a proportional solenoid, integrated digital electronics, and position feedback for enhanced control accuracy and system diagnostics. Suitable for controlling pressure in hydraulic systems requiring high precision and reliability.
Technical Specifications:
- Valve Type: 3-way proportional pressure reducing valve, direct operated
- Series: 1X
- Size: NG10 (Nominal Size 10)
- Mounting Interface: ISO 4401-05-04-0-05
- Maximum Operating Pressure (Port P): 315 bar
- Pressure Rating (Reduced Pressure): 200 bar (Nominal)
- Maximum Flow: 40 L/min
- Control Electronics: Integrated Digital Electronics (OBE)
- Electrical Connection: Plug-in connector EN 175201-804, 4-pole (K31)
- Supply Voltage: 24 VDC (G24)
- Command Value Signal: 0 to 10 V (F1V)
- Position Feedback: Electrical position feedback of the control spool
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524, other fluids on request
- Fluid Temperature Range: -20°C to +80°C
- Viscosity Range: 2.8 to 500 mm²/s
- Seal Material: NBR
| Brand | Rexroth |
|---|---|

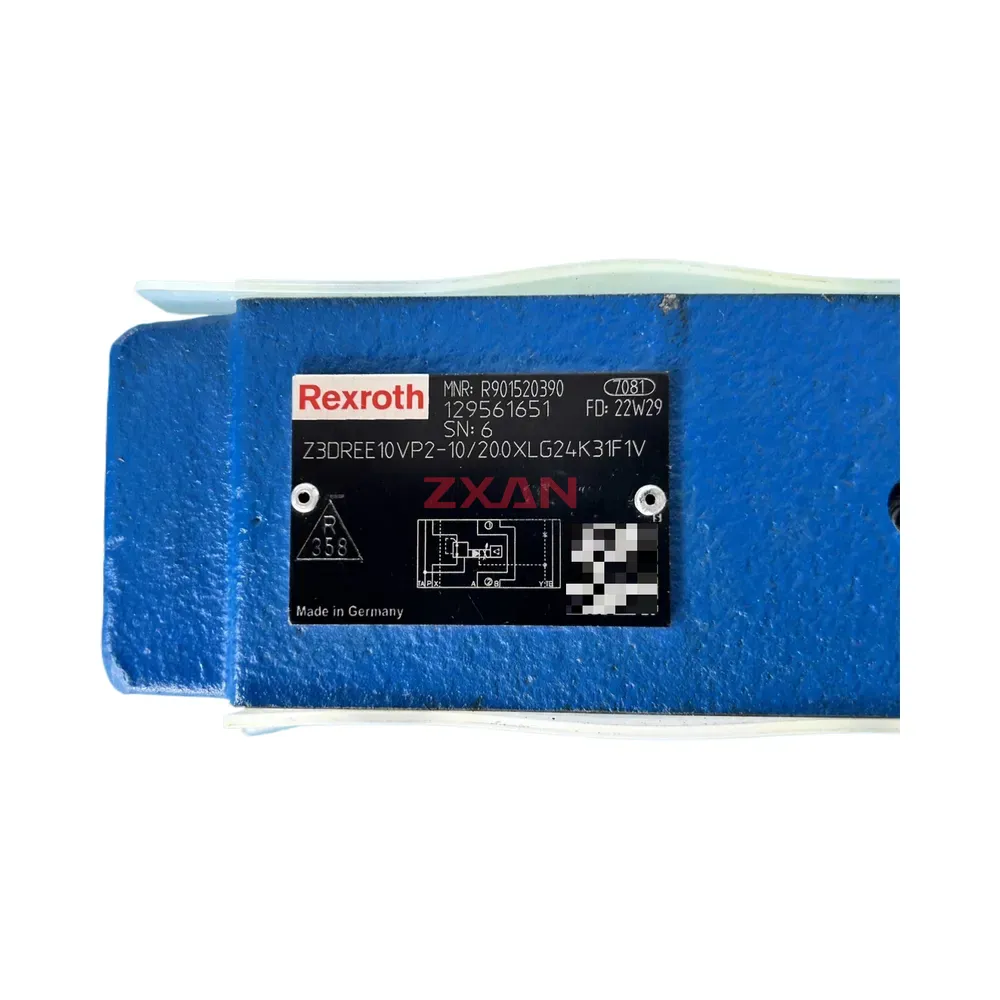

| Model | Z3DREE10VP2-1X/200XLG24K31F1V R901520390 |
