REXROTH ZDR 6 DP2-43/210YM R900483788
Type:REXROTH ZDR 6 DP2-43/210YM R900483788
REXROTH ZDR 6 DP2-43/210YM R900483788

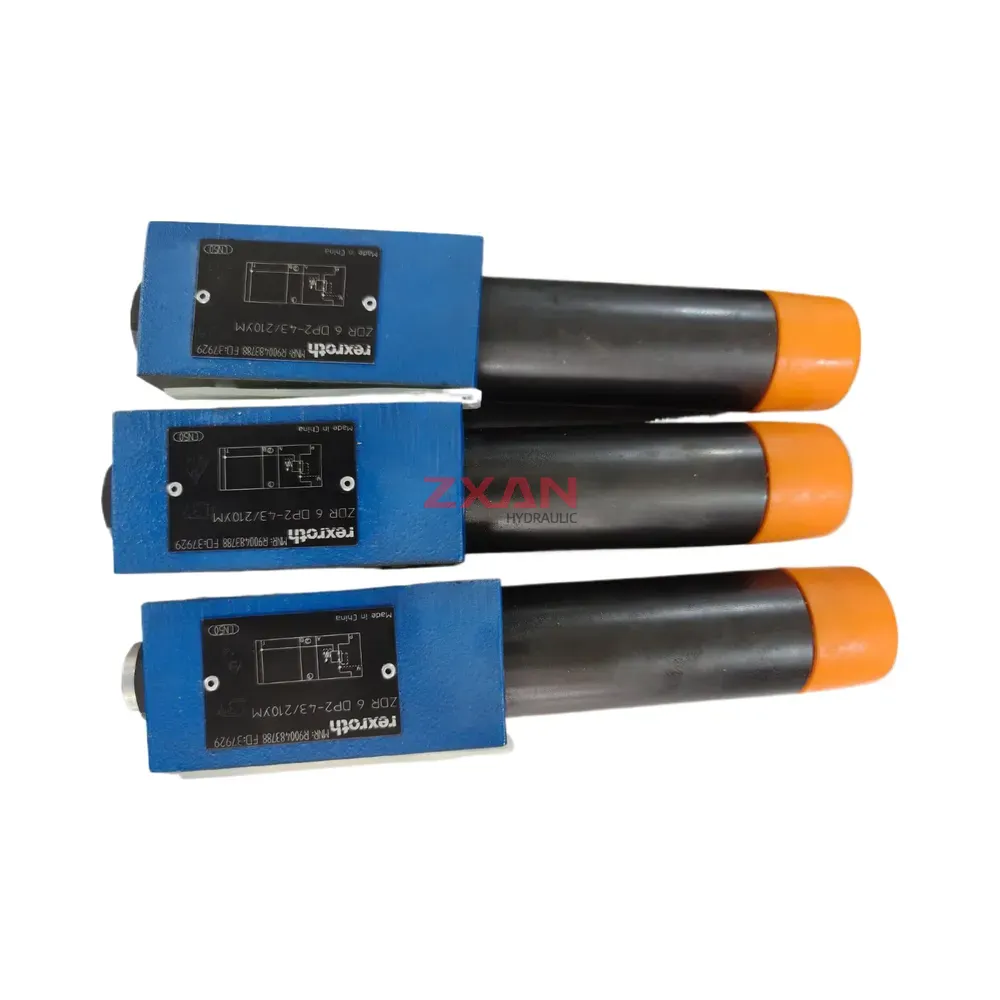

The Rexroth ZDR 6 DP2-43/210YM is a direct-operated pressure reducing valve in a sandwich plate design (ISO 4401-03 / CETOP 03 / NG6). It is designed to reduce the operating pressure in one specific port (port P1, connected to actuator port A). This model features pressure reduction in port P1, includes an integrated check valve allowing free flow from A1 to A2, and has a maximum adjustable reduced pressure setting of 210 bar, controlled via a rotary knob. These valves are commonly used in hydraulic systems to provide a secondary, lower pressure circuit from a higher pressure primary supply.
Technical Specifications:
- Valve Type: Pressure reducing valve, direct operated
- Series: ZDR 6
- Size: 6 (NG6 / CETOP 03)
- Mounting Interface: ISO 4401-03-02-0-05
- Part Number: R900483788
- Pressure Reduction: In port P1 (Actuator port A)
- Maximum Pressure Setting (Reduced Pressure): 210 bar (3045 psi)
- Adjustment Type: Rotary knob (Y)
- Check Valve: Integrated bypass check valve (A1 to A2)
- Maximum Operating Pressure (Port P): 315 bar (4568 psi)
- Maximum Flow: Approximately 30 l/min (8 GPM)
- Hydraulic Fluid Compatibility: Mineral oils (HL, HLP) according to DIN 51524
- Seal Material: NBR (Standard)
- Weight: Approx. 1.3 kg (2.87 lbs)
| Brand | Rexroth |
|---|---|
| Model | ZDR 6 DP2-43/210YM R900483788 |
