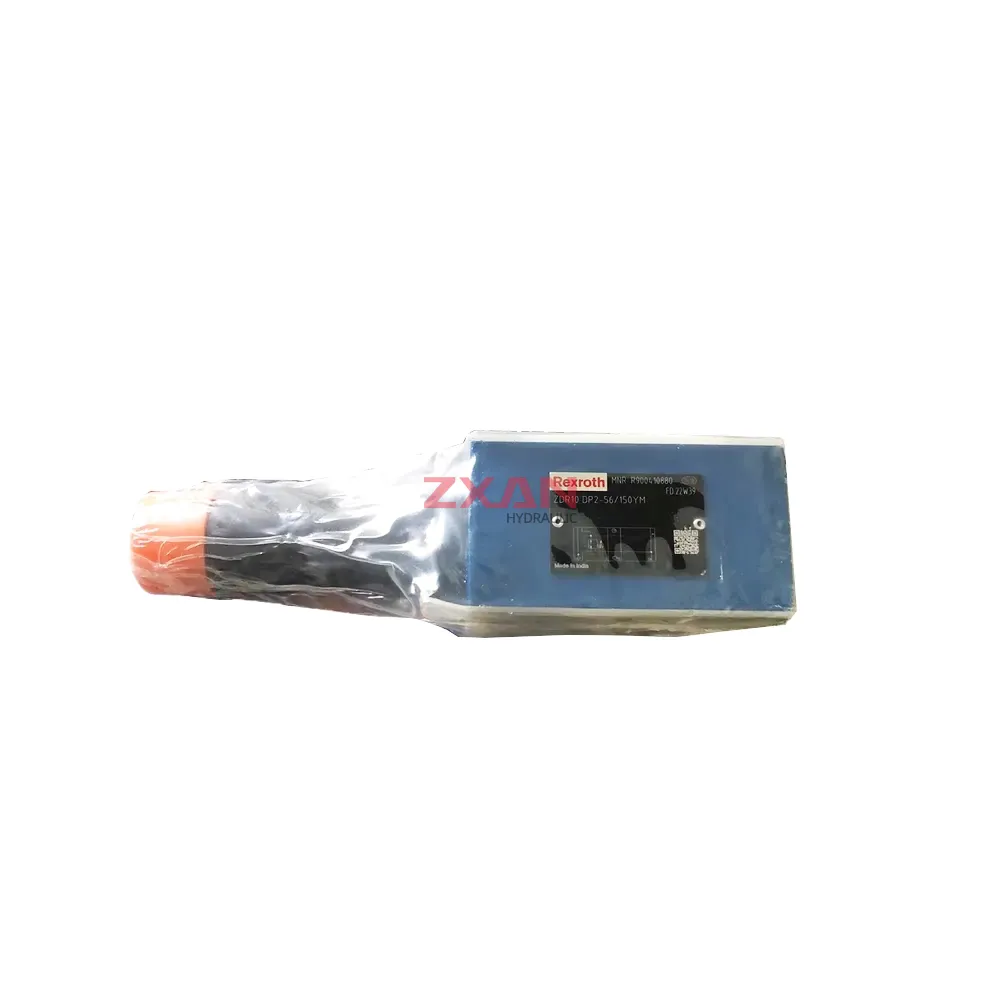

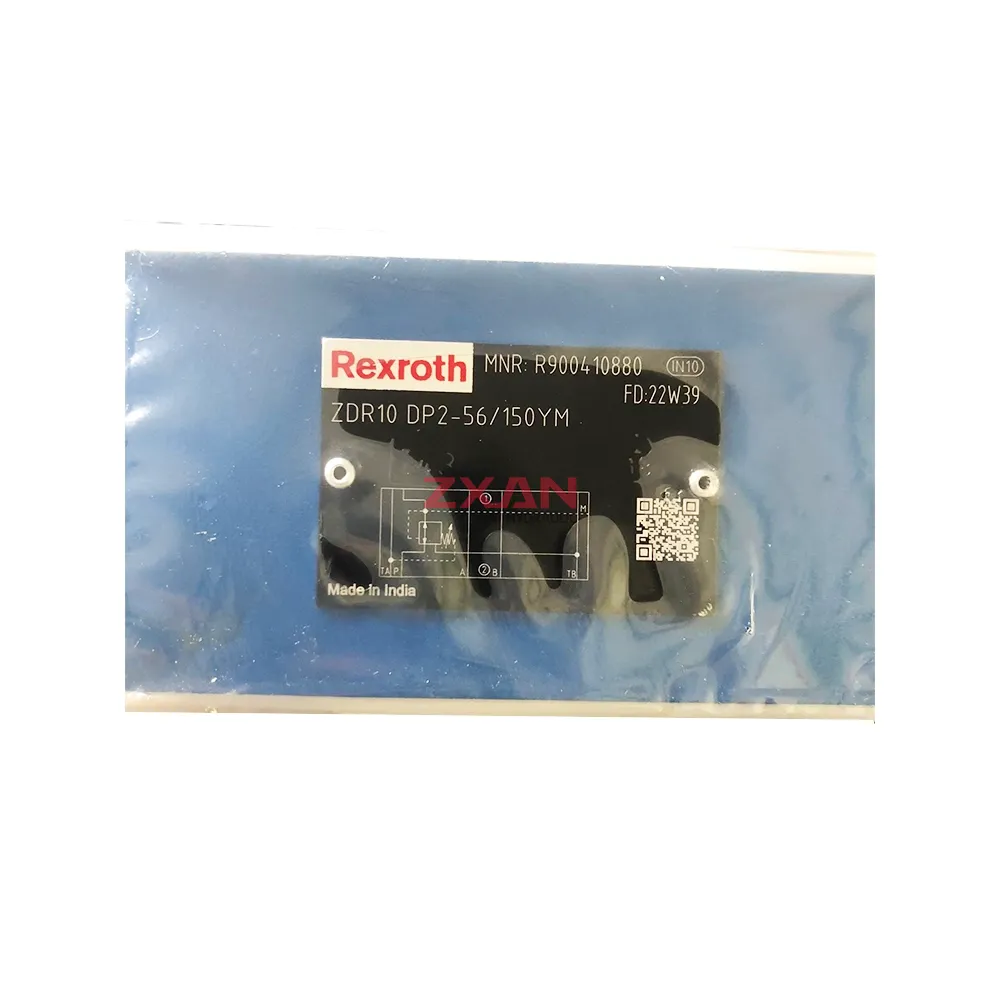

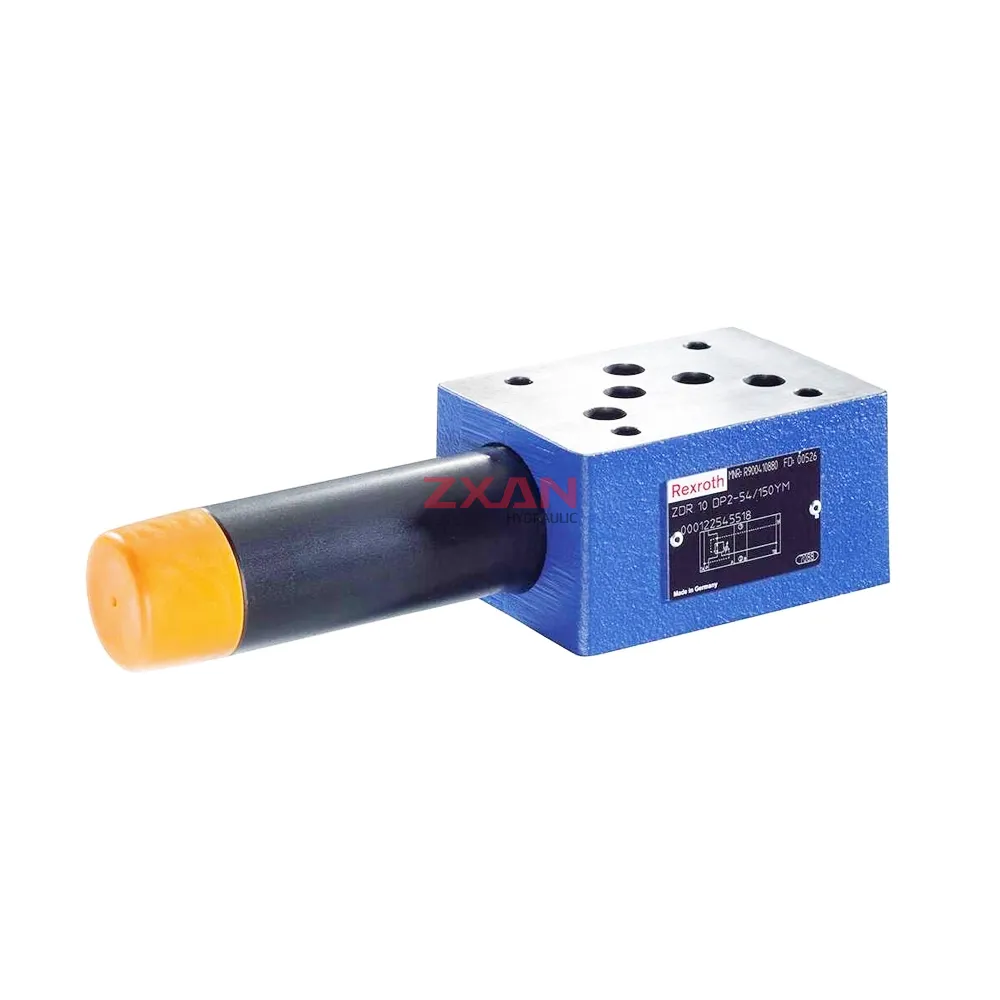

Rexroth ZDR10DP2-5X/150YM
The Rexroth ZDR10DP2-5X/150YM is a pilot-operated pressure reducing valve of sandwich plate design. It is engineered to reduce an inlet pressure at port P to a lower, adjustable pressure at port P1. This particular model features a pressure relief function for the main spool, ensuring that if the pressure in port P1 exceeds the set value, it is relieved to the tank (via port Y). The valve includes an external pilot oil drain (Y) and is equipped with a pressure gauge connection (M) for monitoring the reduced pressure in port P1. It is suitable for applications requiring precise pressure control in hydraulic systems.
Technical Specifications:
- Valve Type: Pilot-operated pressure reducing valve
- Design: Sandwich plate
- Size: NG10 (Nominal Size 10)
- Component Series: 5X (50 to 59)
- Maximum Operating Pressure (Inlet Port P): 315 bar (4568 psi)
- Pressure Setting Range (Port P1): Up to 150 bar (Up to 2175 psi)
- Maximum Flow (P → P1): 80 L/min (21.1 GPM)
- Porting Pattern: According to ISO 4401-05-04-0-05
- Pressure Reduction: In port P1
- Pressure Relief Function: Main spool in P1 to T (Y)
- Pilot Oil Drain: External (Y)
- Pressure Gauge Connection: For port P1 (M)
- Type of Actuation: Rotary knob
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524; other fluids on request
- Fluid Temperature Range: -30 °C to +80 °C (-22 °F to +176 °F)
- Viscosity Range: 2.8 to 500 mm²/s
- Seals: Typically NBR (Nitrile Butadiene Rubber) for standard versions
| Brand | Rexroth |
|---|---|
| Model | ZDR10DP2-5X/150YM |
