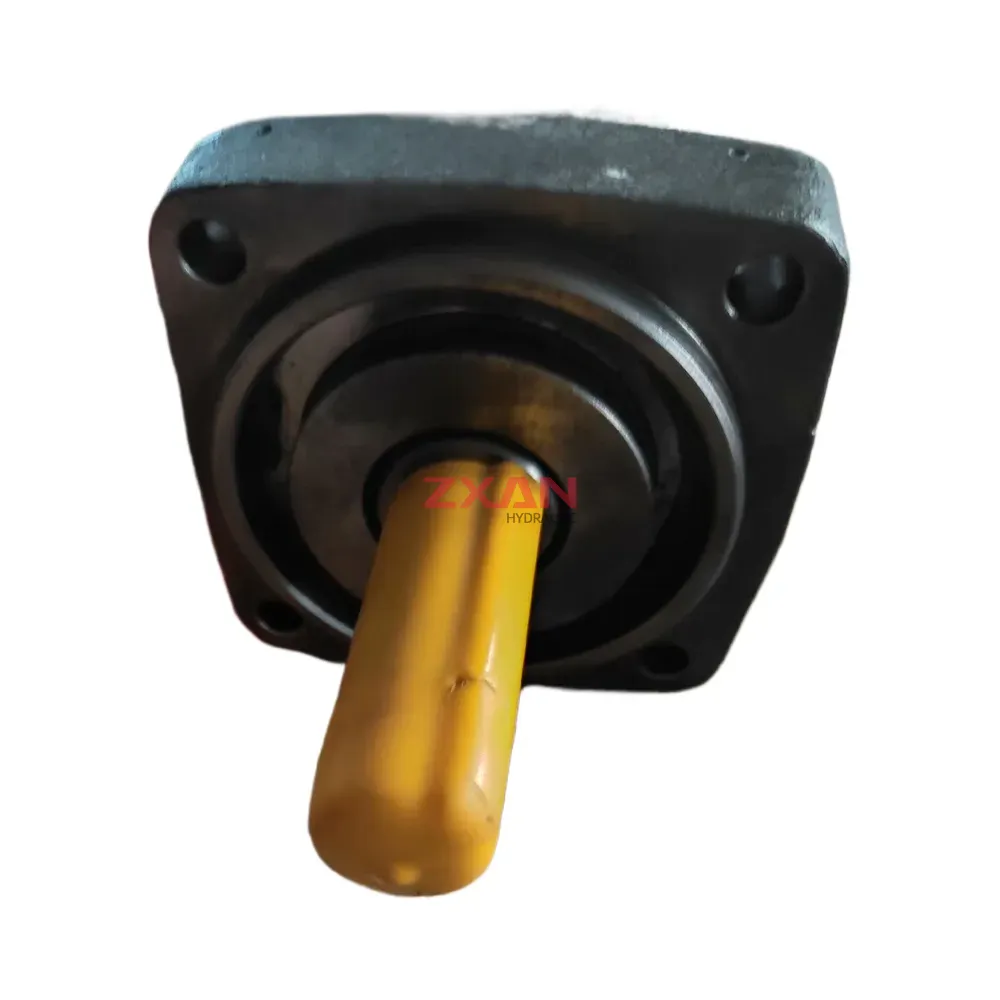

Samhydraulik H1C 020 C VM2 R
The Samhydraulik H1C 020 C VM2 R is a compact orbital hydraulic motor from the H1C series, designed for applications requiring low speed and high torque. These LSHT (Low-Speed High-Torque) motors are recognized for their robust construction, high starting torque, and smooth performance across a wide operational range, making them suitable for diverse mobile and industrial hydraulic systems. The “020” in its designation refers to a geometric displacement of approximately 20.3 cm³/rev. The “C” typically indicates a specific shaft type (Ø25 mm cylindrical with key), while “VM2 R” signifies further specialized build options concerning valving, porting, or rotation, tailoring the motor to specific application needs. Common mounting options for the H1C series include SAE A 2-bolt or 4-bolt Magneto flanges.
Technical Specifications:
- Product Series: H1C
- Type: Orbital LSHT (Low-Speed High-Torque) Hydraulic Motor
- Geometric Displacement: 20.3 cm³/rev (1.24 in³/rev)
- Shaft Type (as per ‘C’ designation): Cylindrical Ø25 mm with parallel key A8x7x32 DIN 6885
- Maximum Continuous Pressure: 140 bar (2000 psi)
- Maximum Intermittent Pressure (up to 10% of duty cycle): 175 bar (2500 psi)
- Maximum Peak Pressure (short term, <1% of duty cycle): 210 bar (3000 psi)
- Maximum Continuous Torque: 38 Nm (330 lb-in)
- Maximum Continuous Speed: 735 RPM
- Maximum Continuous Oil Flow: 15 l/min (4 US gpm)
- Specific Build Options (VM2 R): Defines features such as valving, port connections, and direction of rotation. Consult manufacturer/supplier documentation for precise details on this specific configuration.
| Brand | Samhydraulik |
|---|---|
| Model | H1C 020 C VM2 R |
