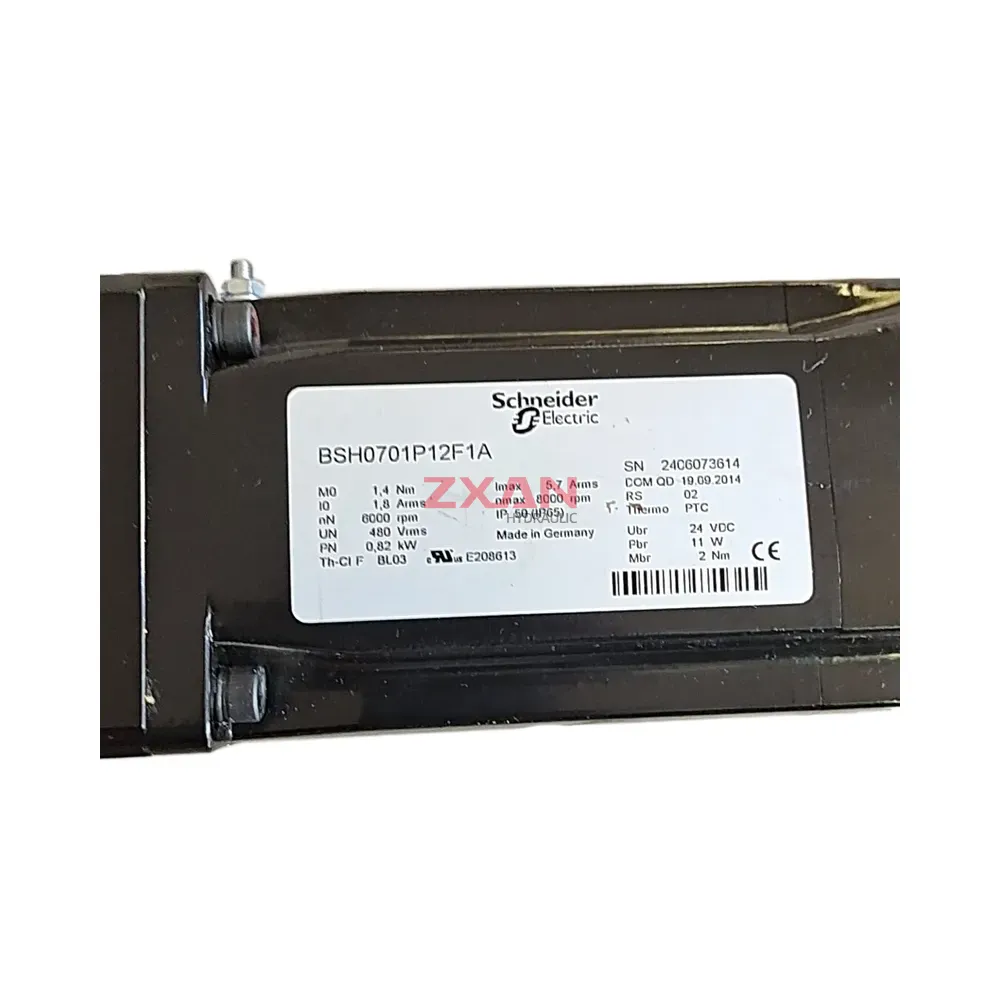

Schneider BSH0701P12F1A

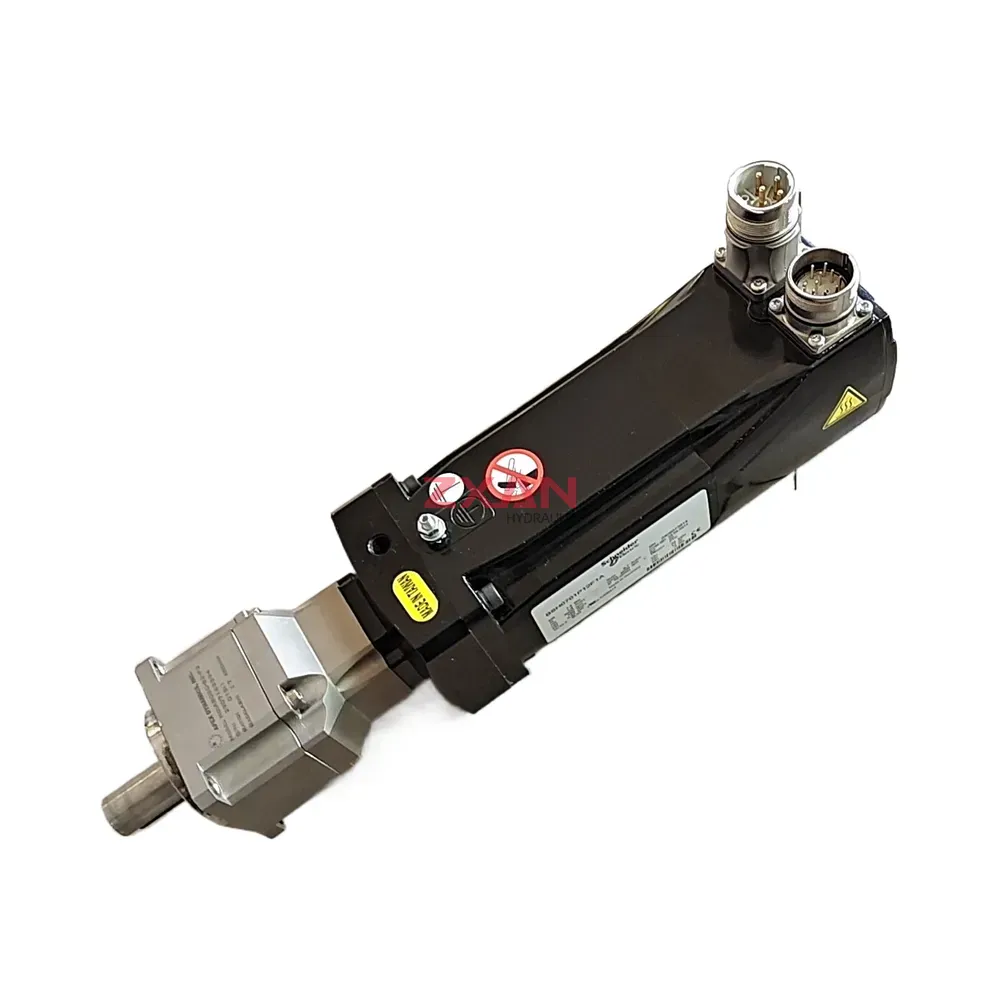

The Schneider Electric BSH0701P12F1A is a high-performance AC synchronous servo motor, part of the Lexium BSH series. Designed for demanding industrial automation applications, this motor offers excellent dynamics, high torque density, and precision control. It is well-suited for tasks in packaging machinery, material handling systems, robotics, and other applications requiring precise motion. The BSH0701P12F1A features a compact design with a 70mm frame size, a keyed shaft for secure mechanical coupling, and straight connectors for ease of integration. This model is configured without a holding brake and utilizes a single-turn SinCos Hiperface encoder for accurate feedback.

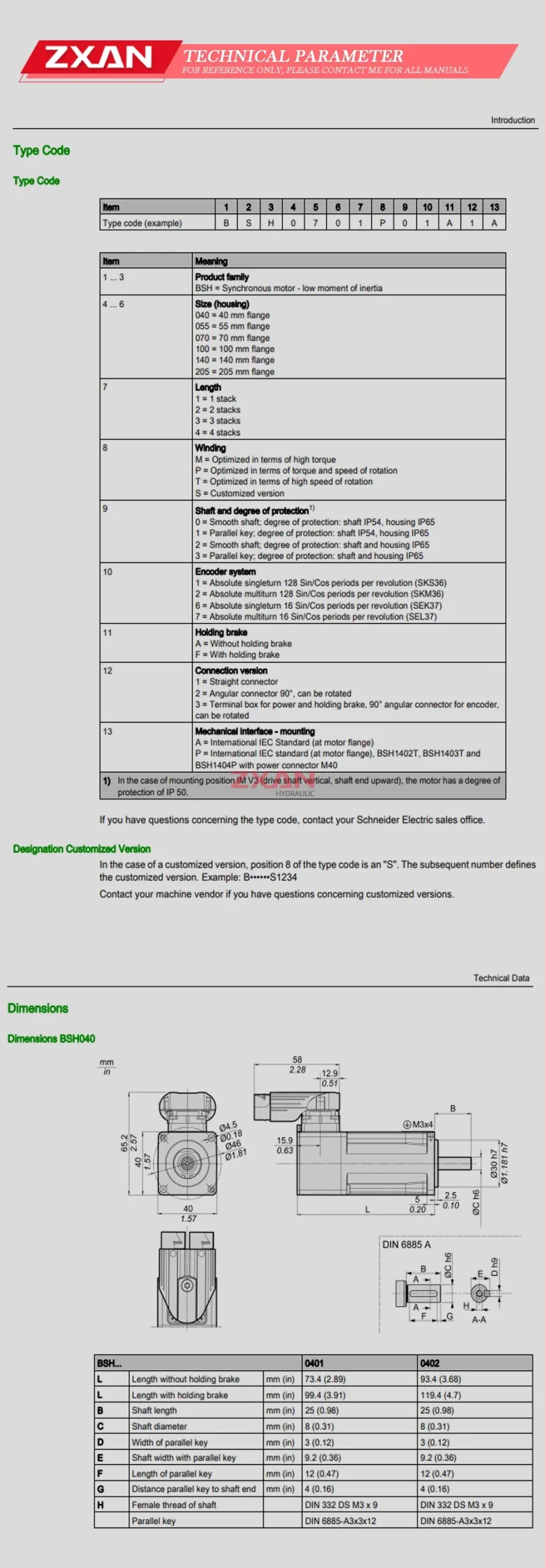

Technical Specifications:
- Product Type: Synchronous servo motor
- Series: Lexium BSH
- Device Short Name: BSH
- Frame Size: 70 mm
- Continuous Stall Torque: 1.5 N.m (with compatible Lexium drive, e.g., LXM32.D12N4 at 3 A, 400 V, three phase)
- Peak Stall Torque: 4.5 N.m (with compatible Lexium drive)
- Nominal Output Power: 750 W (with compatible Lexium drive)
- Nominal Speed: 6000 rpm (at 400V supply) / 3000 rpm (at 230V supply)
- Nominal Torque: 1.2 N.m (at 6000 rpm, 400V) / 1.2 N.m (at 3000 rpm, 230V)
- Shaft End: Keyed shaft (parallel key conforming to DIN 6885)
- Electrical Connection: Straight connectors (M23)
- Feedback Type: Single-turn SinCos Hiperface encoder (128 periods per revolution)
- Holding Brake: Without
- Number of Motor Poles: 10
- Cooling Mode: Natural convection
- IP Degree of Protection: IP65 (housing), IP54 (shaft end)
- Maximum Mechanical Speed: 9000 rpm
| Brand | Schneider |
|---|---|
| Model | BSH0701P12F1A |
