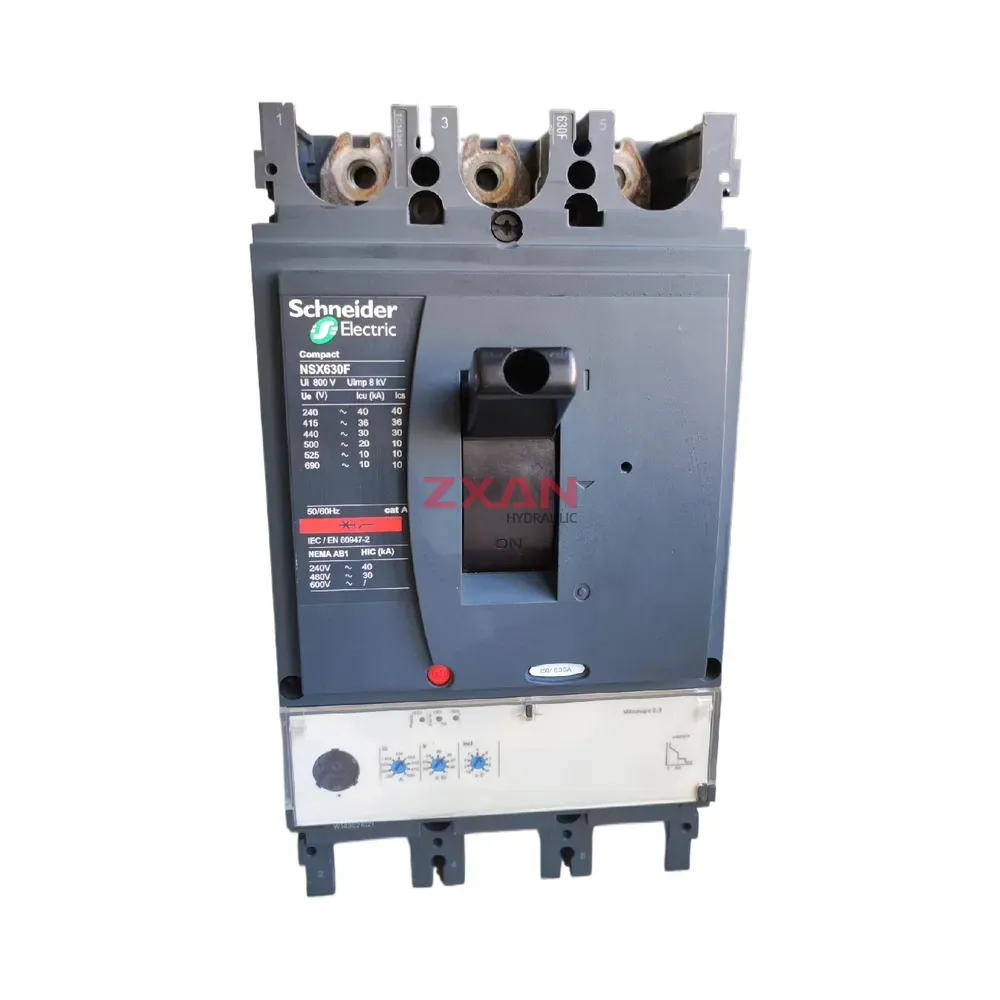

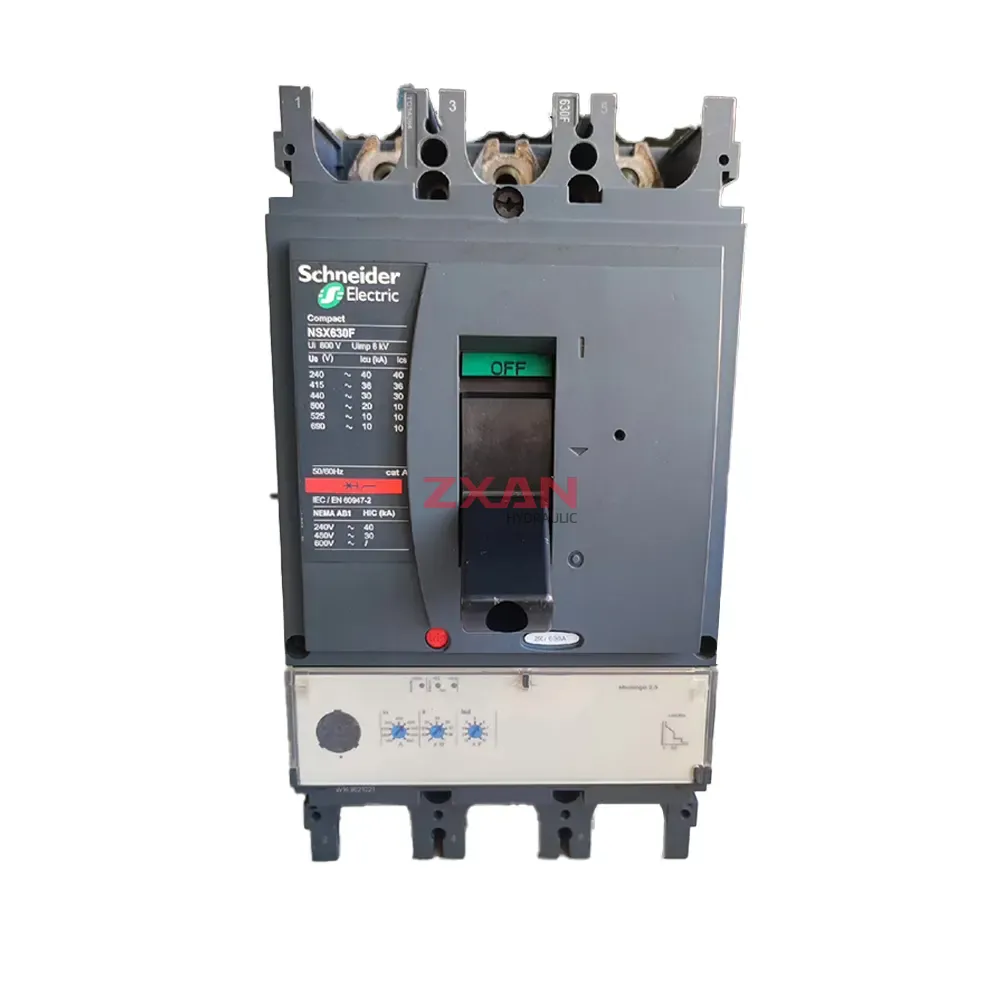

Schneider Electric NSX630F Molded Case Circuit Breaker (MCCB)
Shop the Schneider Electric Compact NSX630F (630A, 3-Pole) Molded Case Circuit Breaker. Equipped with a highly accurate Micrologic 5.3 electronic trip unit, this MCCB offers a reliable 36kA breaking capacity at 415V. UL listed and IEC compliant, it is the perfect heavy-duty solution for safe industrial power distribution and motor control.
Schneider Electric NSX630F Molded Case Circuit Breaker (MCCB)
The Schneider Electric Compact NSX630F is a high-performance 3-pole Molded Case Circuit Breaker (MCCB) engineered to provide robust and reliable protection for industrial electrical distribution and motor control applications. Built with a 630A frame, it features the advanced Micrologic 5.3 electronic trip unit, delivering highly accurate and adjustable protections including long-time (Ir), short-time (Isd), and instantaneous (Ii) safeguards. This versatile breaker boasts a rated insulation voltage of 800V, an impulse withstand voltage of 8kV, and an ultimate breaking capacity (Icu) of 36kA at 415V. Additionally, it is UL listed as a manual motor controller and complies with stringent international standards including IEC/EN 60947-2, NEMA AB1, and GB14048.2, ensuring maximum safety, compliance, and operational efficiency in demanding environments.
Technical Specifications:
- Brand: Schneider Electric
- Model: Compact NSX630F
- Number of Poles: 3-Pole
- Rated Current (In): 630A
- Trip Unit: Micrologic 5.3 (Electronic with adjustable Ir, Isd, Ii)
- Rated Insulation Voltage (Ui): 800V
- Rated Impulse Withstand Voltage (Uimp): 8kV
- Operating Frequency: 50/60 Hz (Category A)
- Ultimate Breaking Capacity (Icu): 40kA @ 240V, 36kA @ 415V, 30kA @ 440V, 20kA @ 500V, 10kA @ 525V/690V
- Service Breaking Capacity (Ics): 40kA @ 240V, 36kA @ 415V, 30kA @ 440V, 10kA @ 500V/525V/690V

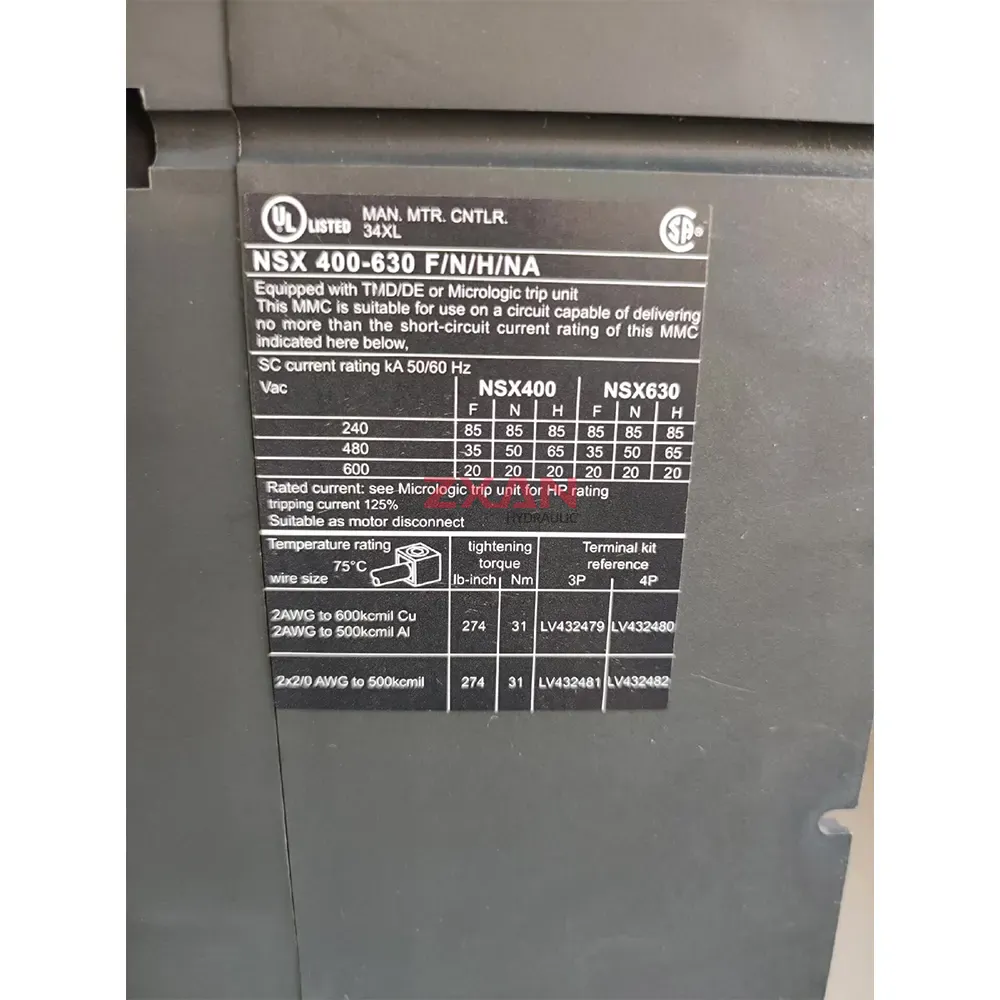

- UL Short Circuit Current Rating: 85kA @ 240V, 35kA @ 480V, 20kA @ 600V

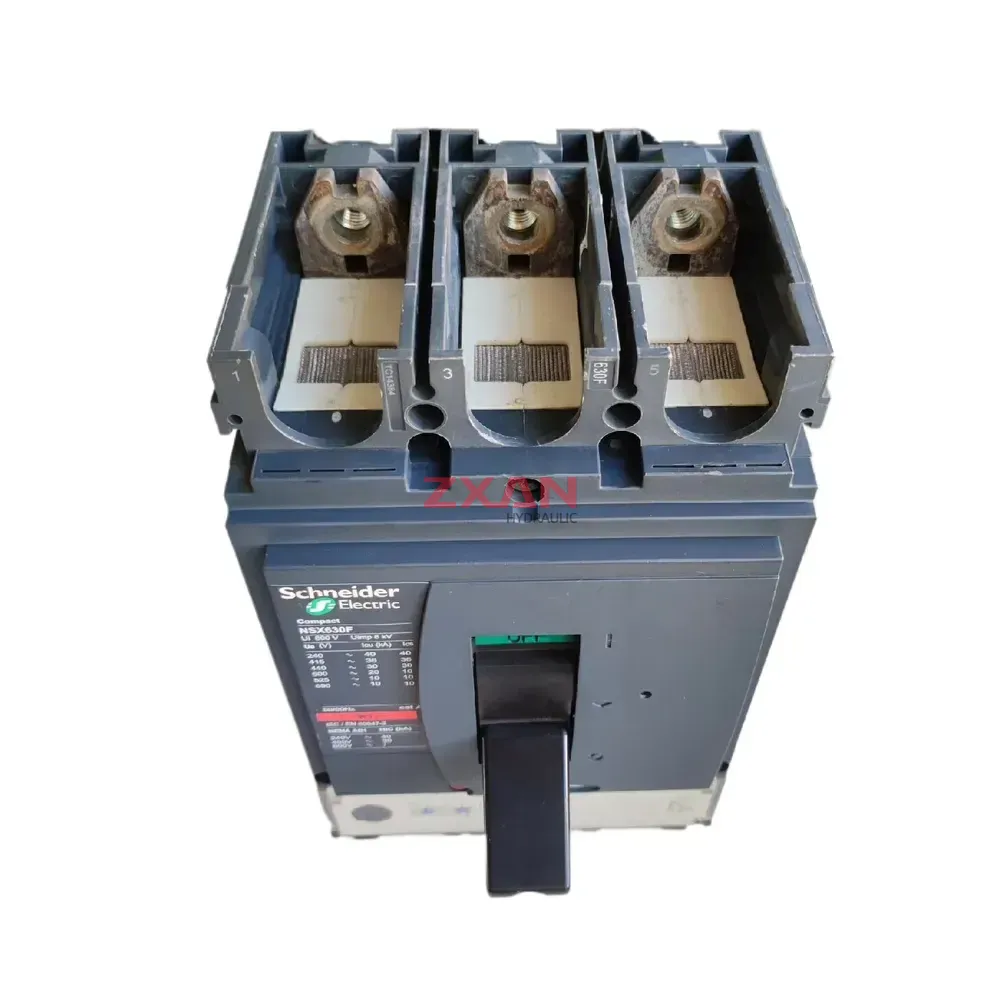

- Wire Size / Terminals: 2 AWG to 600 kcmil Cu / 2 AWG to 500 kcmil Al
- Tightening Torque: 274 lb-inch (31 Nm)

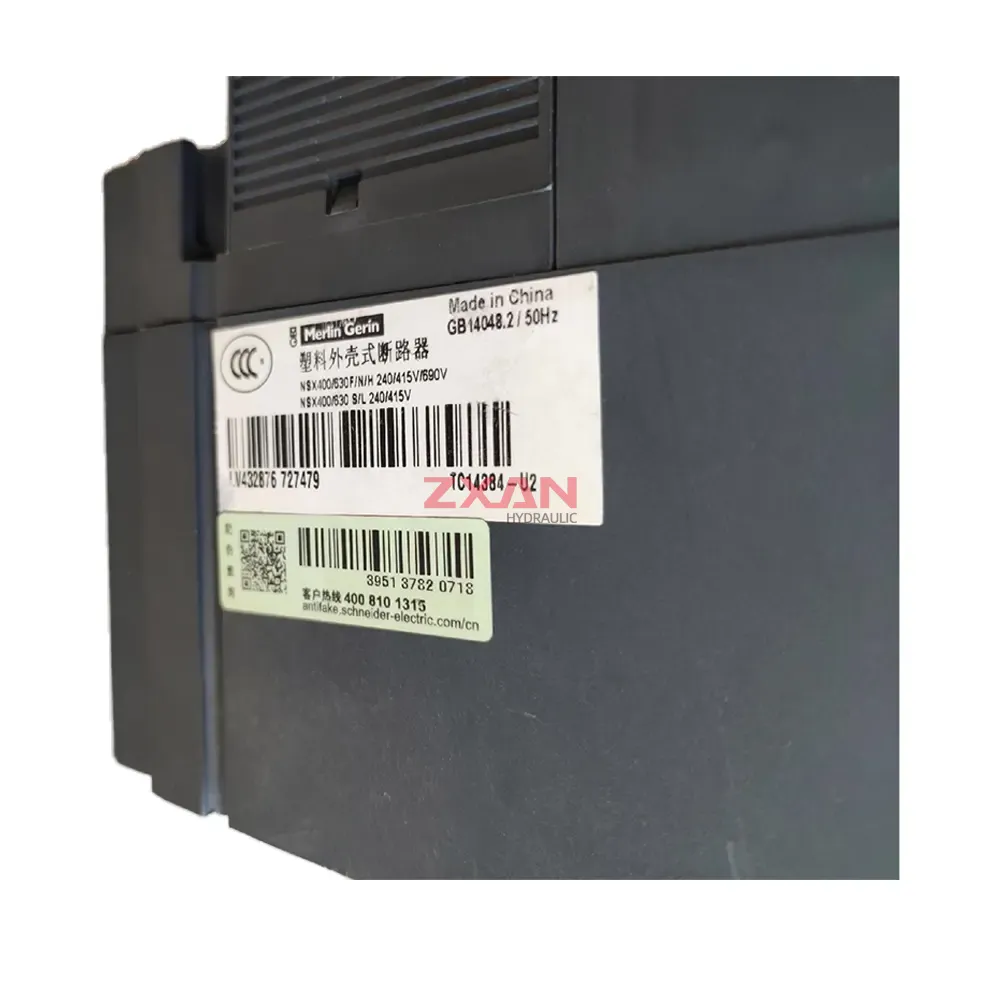

- Standards & Compliance: IEC / EN 60947-2, NEMA AB1, UL Listed (Manual Motor Controller), GB14048.2
| Brand | Schneider Electric |
|---|---|
| Model | NSX630F |
