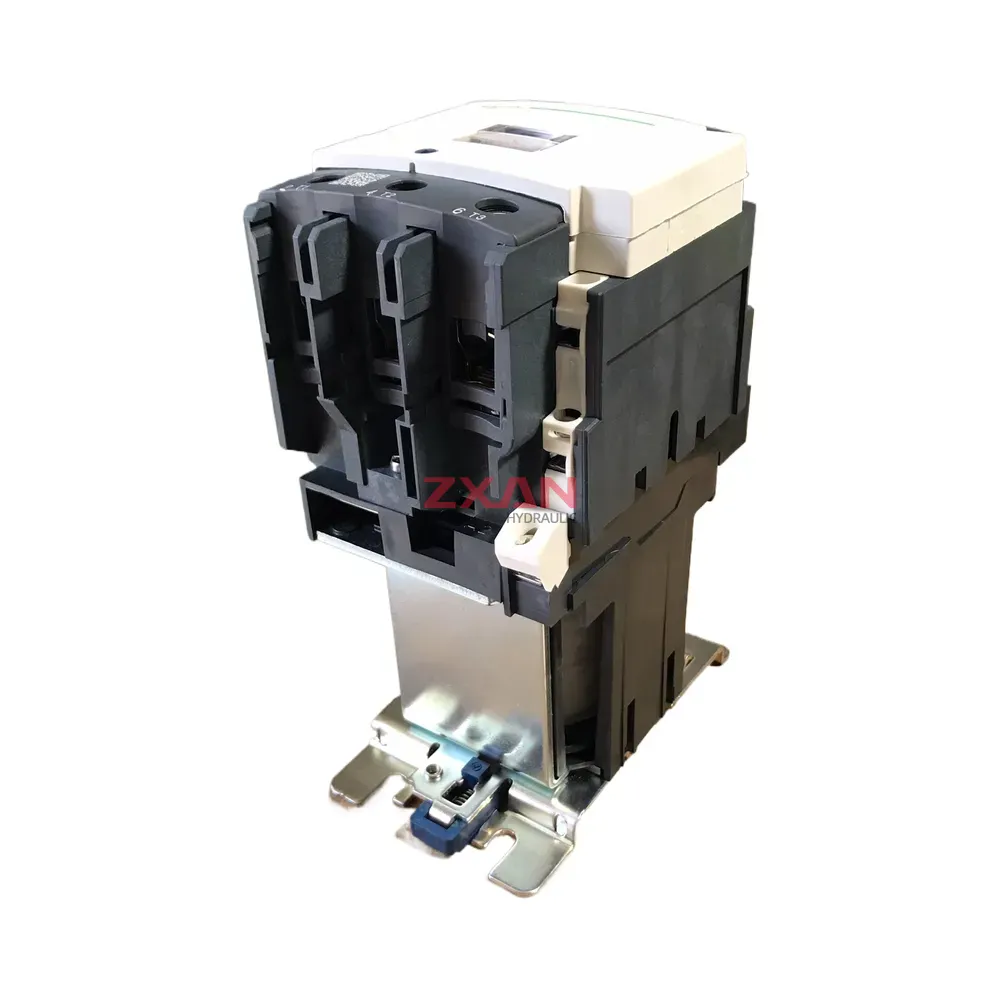

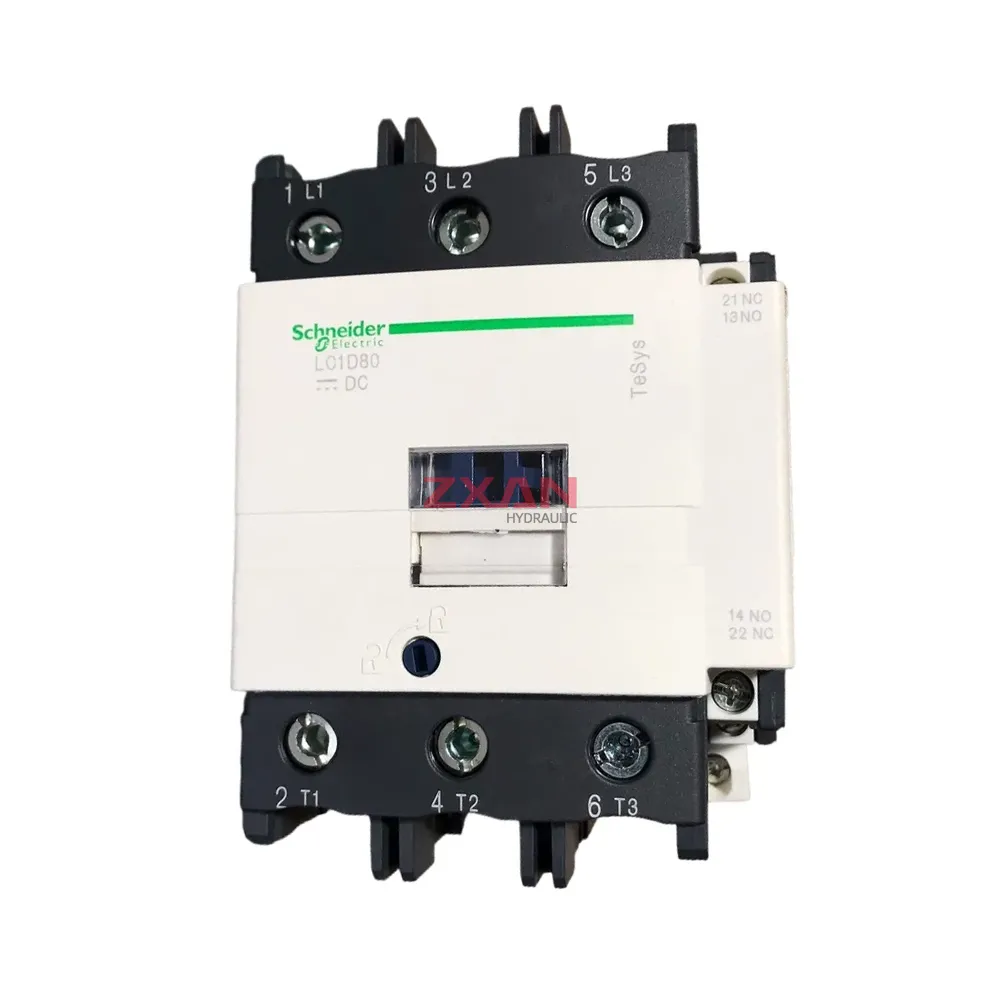

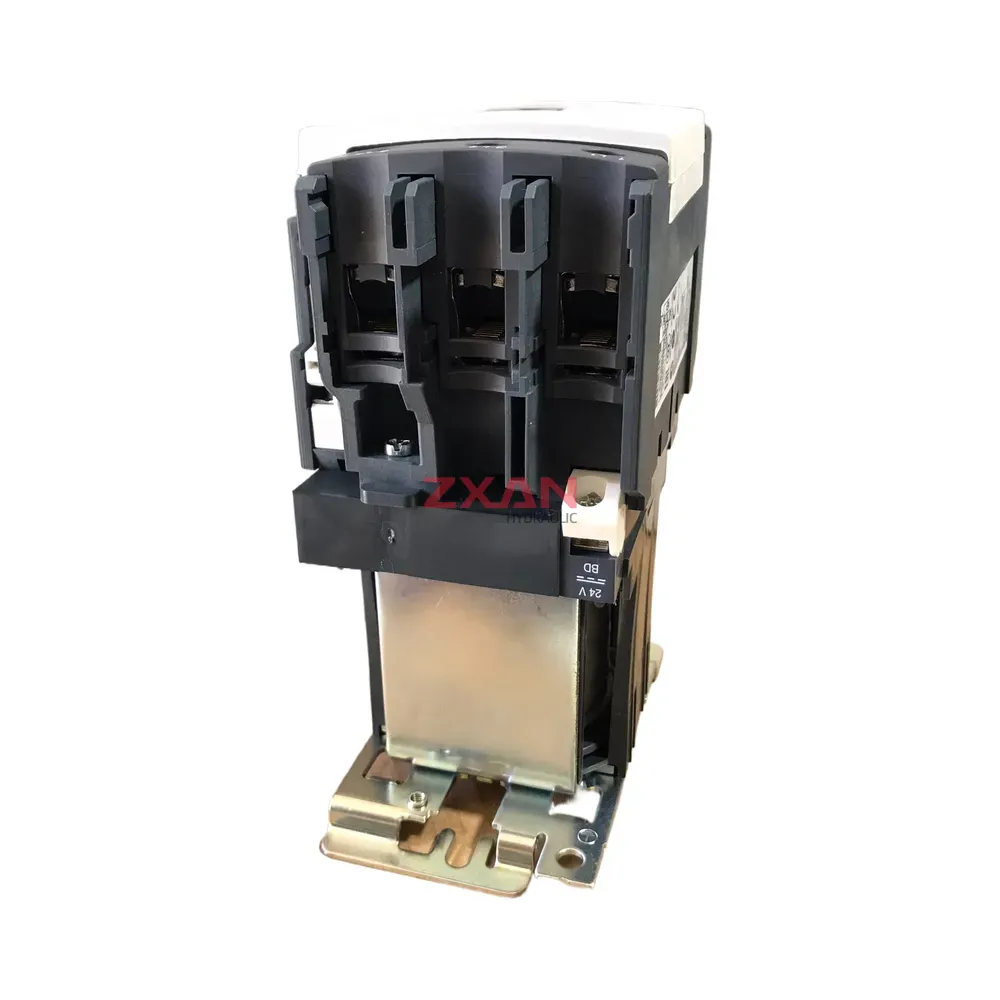

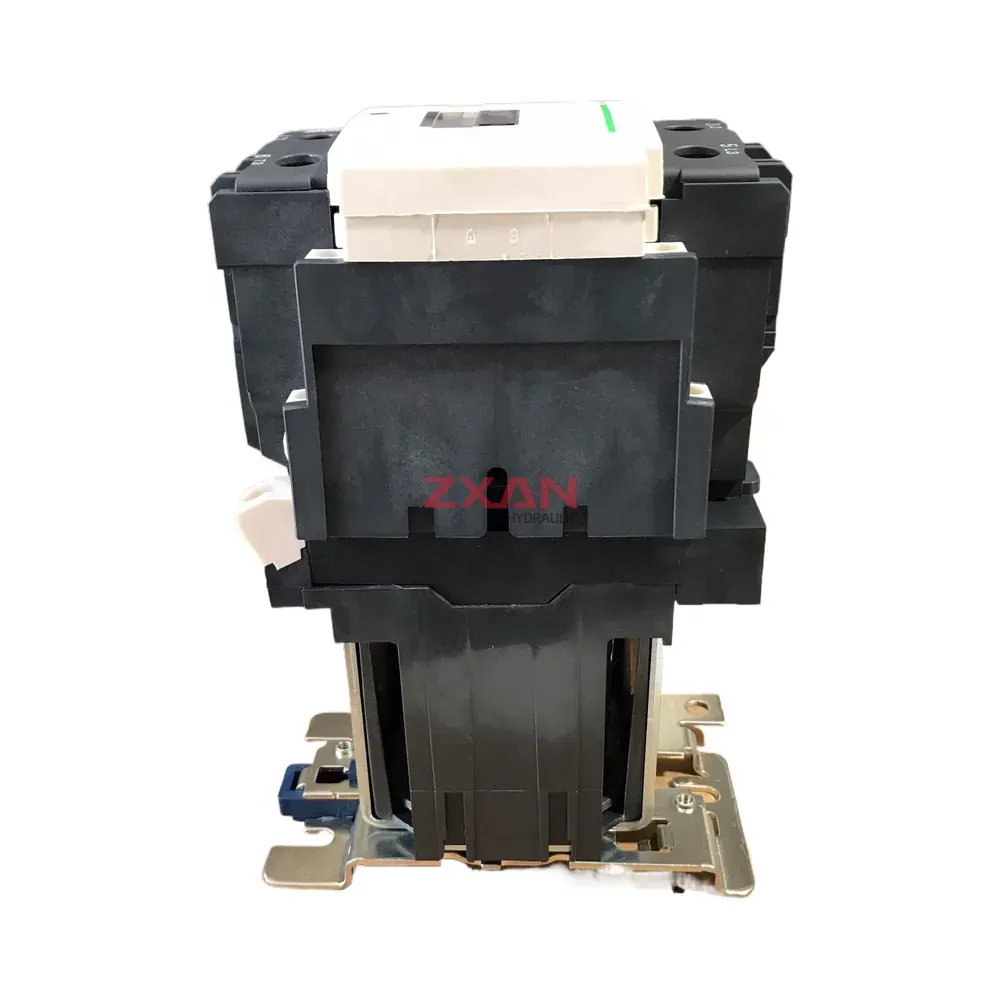

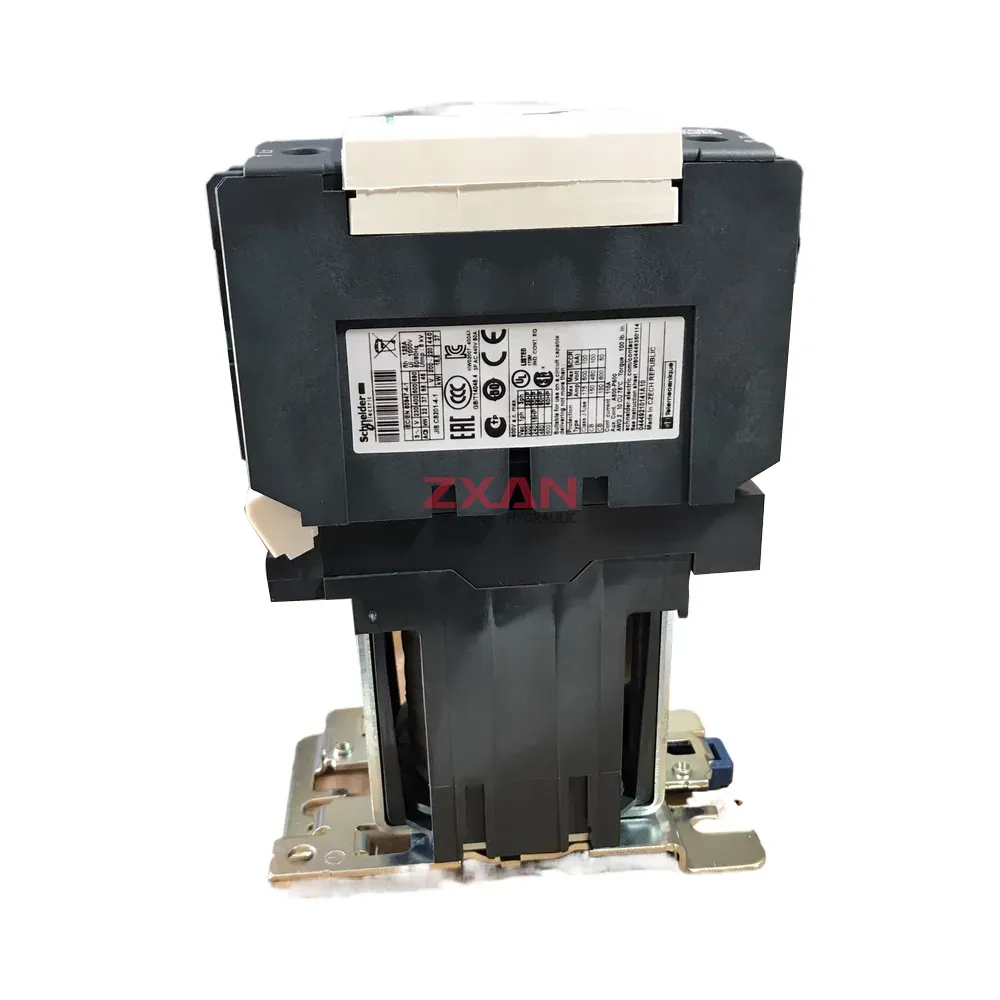

Schneider LC1D80BD
The Schneider Electric LC1D80BD is a 3-pole TeSys D contactor designed for high-performance motor control and non-inductive load applications. It operates with a 24V DC control circuit and is rated for 80A (AC-3) loads, making it ideal for demanding industrial environments. Part of the renowned TeSys D range, this contactor offers reliability, a long mechanical and electrical lifespan, and seamless integration into control systems. It comes equipped with built-in 1 NO + 1 NC auxiliary contacts and features screw clamp terminals for secure and easy connections. Its compact design allows for flexible mounting on either a DIN rail or a plate.

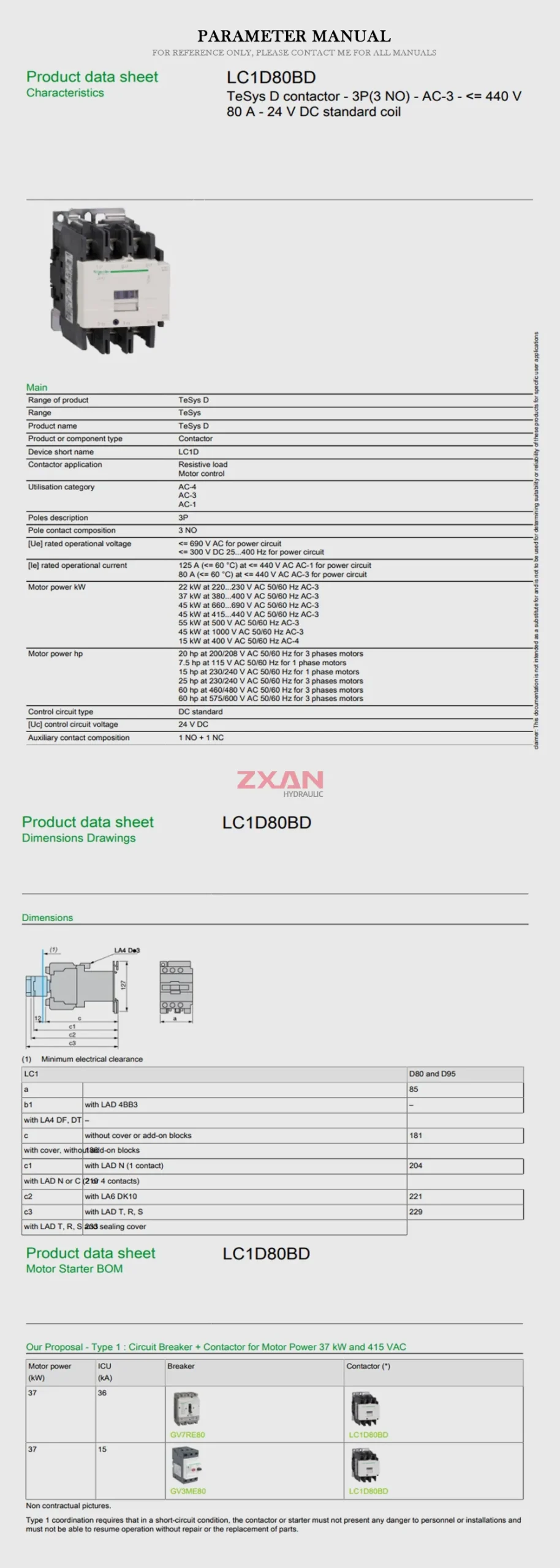

Technical Specifications:
- Product Range: TeSys D
- Product Type: Contactor
- Model: LC1D80BD
- Poles: 3-Pole (3NO)
- Control Circuit Voltage: 24 V DC
- Rated Operational Current [Ie]: 80 A (at <= 60 °C) for power circuit AC-3, 125 A (at <= 60 °C) for power circuit AC-1
- Motor Power Rating (AC-3, 400 V): 37 kW
- Auxiliary Contact Composition: 1 NO + 1 NC
- Connections – Terminals: Screw clamp terminals
- Maximum Operating Rate: 3600 cycles/hour at <= 60 °C
- Mounting Support: Plate or 35mm DIN rail
- Standards: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
| Brand | Schneider |
|---|---|
| Model | LC1D80BD |
