SEMIKRON SKM100GAL123D
Discover the SEMIKRON SKM100GAL123D, a reliable 1200V, 100A half-bridge Trench IGBT module in a SEMITRANS 2 package. Engineered for high efficiency and durability in motor drives, inverters, and UPS systems.
SEMIKRON SKM100GAL123D
The SEMIKRON SKM100GAL123D is a high-performance half-bridge IGBT module belonging to the SEMITRANS 2 family. It integrates Trench Gate IGBT technology, which ensures very low conduction and switching losses, making it highly efficient for demanding applications. This module is designed for reliability, featuring an integrated CAL (Controlled Axial Lifetime) freewheeling diode for soft switching behavior. Housed in an industry-standard package with an isolated copper baseplate, the SKM100GAL123D is ideal for use in motor drives, AC inverters, uninterruptible power supplies (UPS), and renewable energy systems where efficiency and robust performance are critical.

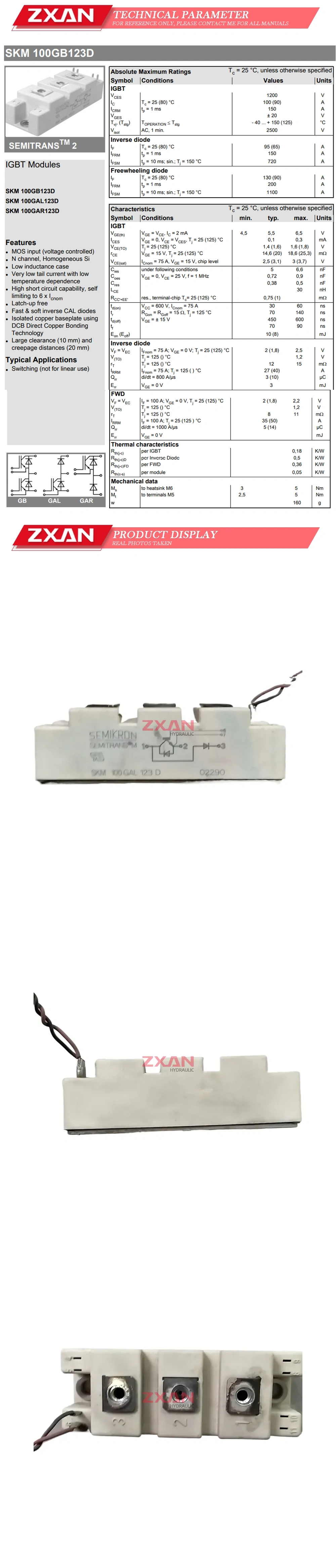

Technical Specifications:
Configuration: Half-Bridge (2x IGBTs)
Collector-Emitter Voltage (Vces): 1200 V
Continuous Collector Current (Ic @ Tc=80°C): 100 A
Technology: Trench IGBT with CAL Freewheeling Diode
Package: SEMITRANS 2
| Brand | Semikron |
|---|---|
| Model | SKM100GAL123D |
