Siemens 6ES7 158-3AD01-0XA0 PN/PN Coupler
Optimize your industrial automation network with the Siemens 6ES7 158-3AD01-0XA0 SIMATIC PN/PN Coupler. This 24V DC module securely connects two PROFINET IO controllers, featuring dual interfaces, comprehensive LED diagnostics, and ATEX/UL Class I Div 2 certifications for safe, reliable data exchange in hazardous environments.
Siemens 6ES7 158-3AD01-0XA0 PN/PN Coupler

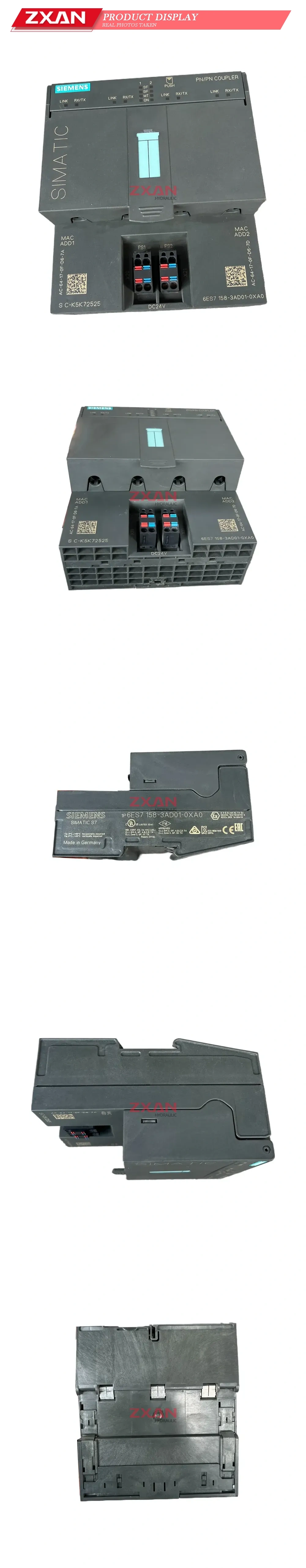

The Siemens SIMATIC S7 PN/PN Coupler (Model: 6ES7 158-3AD01-0XA0) is a highly reliable industrial communication module engineered to seamlessly and securely connect two separate PROFINET IO networks. Designed for advanced industrial automation systems, this coupler facilitates the deterministic exchange of data between two independent PROFINET controllers while maintaining strict network separation. It features dual PROFINET interfaces with dedicated MAC addresses and operates on a standard 24V DC power supply via redundant PS1 and PS2 terminals. The front panel is equipped with comprehensive diagnostic LEDs (LINK, RX/TX, SF, BF, MT, and ON) for quick system status checks and troubleshooting. Built for demanding environments, it carries stringent hazardous location certifications including ATEX, IECEx, and UL Class I, Division 2, ensuring safe and robust operation across a wide range of applications.
Technical Specifications:
- Brand / Series: Siemens SIMATIC S7
- Part Number: 6ES7 158-3AD01-0XA0 (6ES7158-3AD01-0XA0)
- Device Type: PN/PN Coupler (PROFINET IO to PROFINET IO)

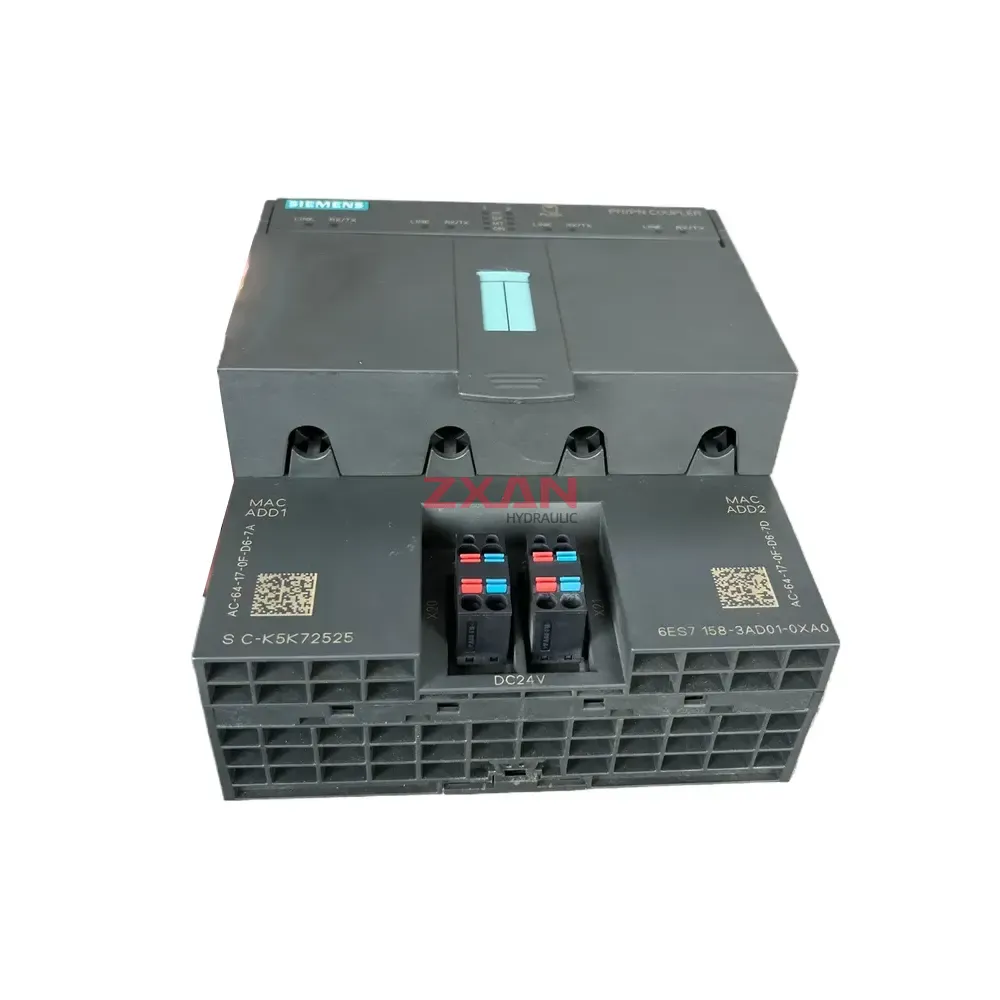

- Power Supply: 24V DC (Input via PS1 and PS2 terminals)
- Network Interfaces: Dual PROFINET interfaces (MAC ADD1 and MAC ADD2)

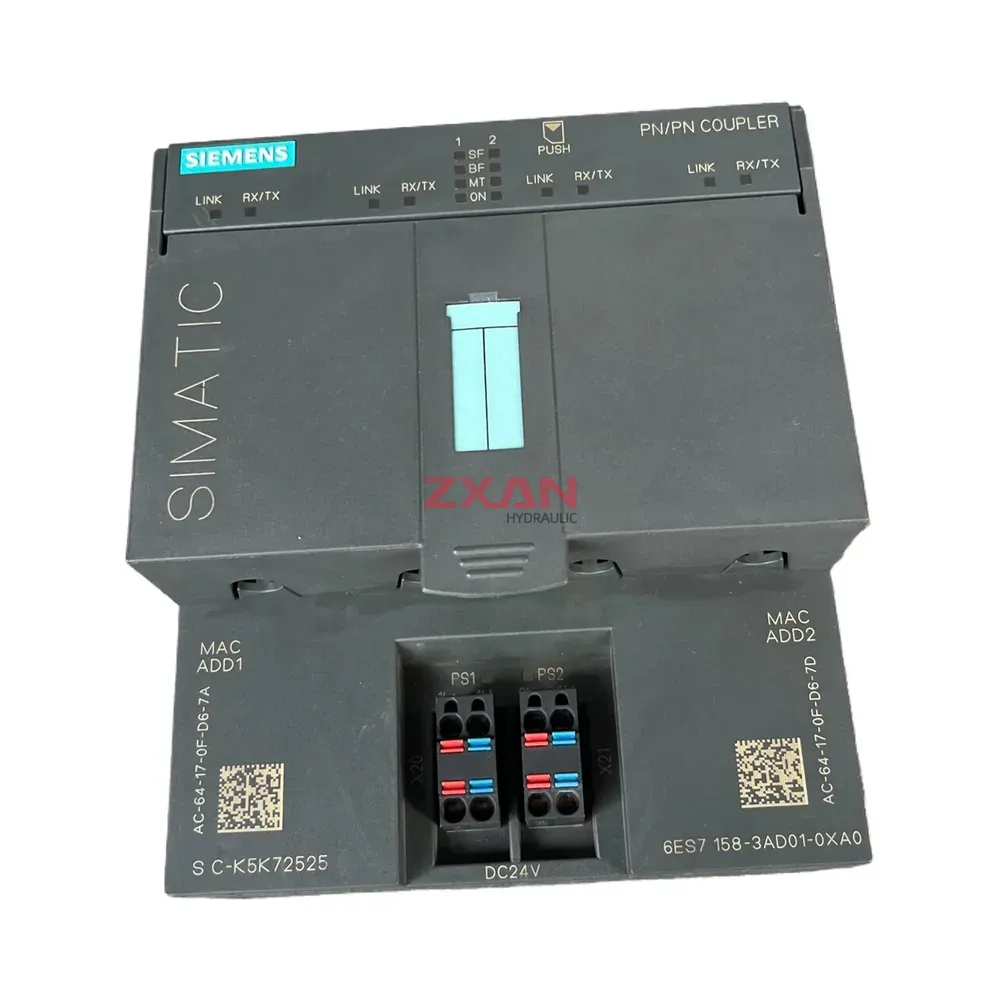

- Diagnostic Indicators: Status LEDs for LINK, RX/TX, SF, BF, MT, and ON
- Operating Temperature (Horizontal Mount): 0°C to 60°C
- Operating Temperature (Vertical Mount): 0°C to 40°C

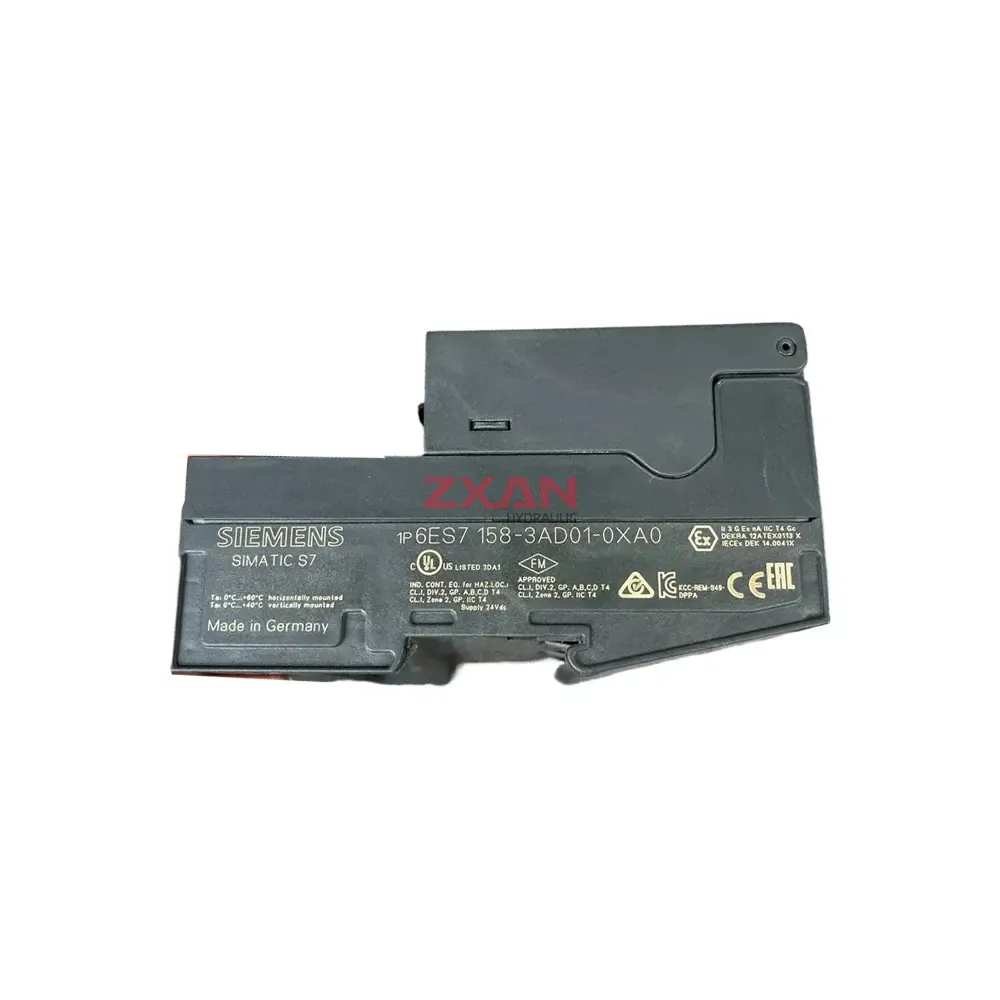

- Hazardous Location Certifications: UL/cULus Class I, Div 2, Groups A, B, C, D T4; Class I, Zone 2, Group IIC T4
- Global Approvals: ATEX (II 3 G Ex nA IIC T4 Gc), IECEx, CE, EAC, KC, FM Approved
| Brand | Siemens |
|---|---|
| Model | 6ES7 158-3AD01-0XA0 |
