Siemens 7ML50500AA221DA0
Discover the Siemens 7ML50500AA221DA0, a SITRANS LR560 78 GHz radar level transmitter for reliable, continuous solids monitoring. Features HART communication, a stainless steel body, and an integrated display for easy setup.
Siemens 7ML50500AA221DA0
The Siemens SITRANS LR560, model 7ML50500AA221DA0, is a state-of-the-art 2-wire, 78 GHz FMCW (Frequency Modulated Continuous Wave) radar level transmitter designed for the continuous monitoring of solids. Its high-frequency operation creates a very narrow and focused beam, making it exceptionally effective in applications with dusty atmospheres and tall, narrow silos, minimizing interference from silo walls or internal structures. This specific configuration features a robust stainless steel enclosure, a universal flange for easy installation, and an integrated Local Display Interface (LDI) for simple on-site programming and diagnostics. The 4-20 mA HART output ensures seamless integration into existing control systems, providing reliable and maintenance-free level measurement for industries such as cement, plastics, grain, and mining.
Technical Specifications:
Model: SITRANS LR560
Technology: 2-wire, 78 GHz FMCW Radar
Application: Continuous level measurement of solids
Measuring Range: Up to 40 m (131 ft)
Process Connection: Universal flat-faced flange fits ANSI/DIN/JIS 2″ / 50 mm
Antenna: 40 mm (1.5″) horn antenna
Enclosure Material: Stainless Steel with 1/2″ NPT cable inlet
Output/Communication: 4 to 20 mA, HART

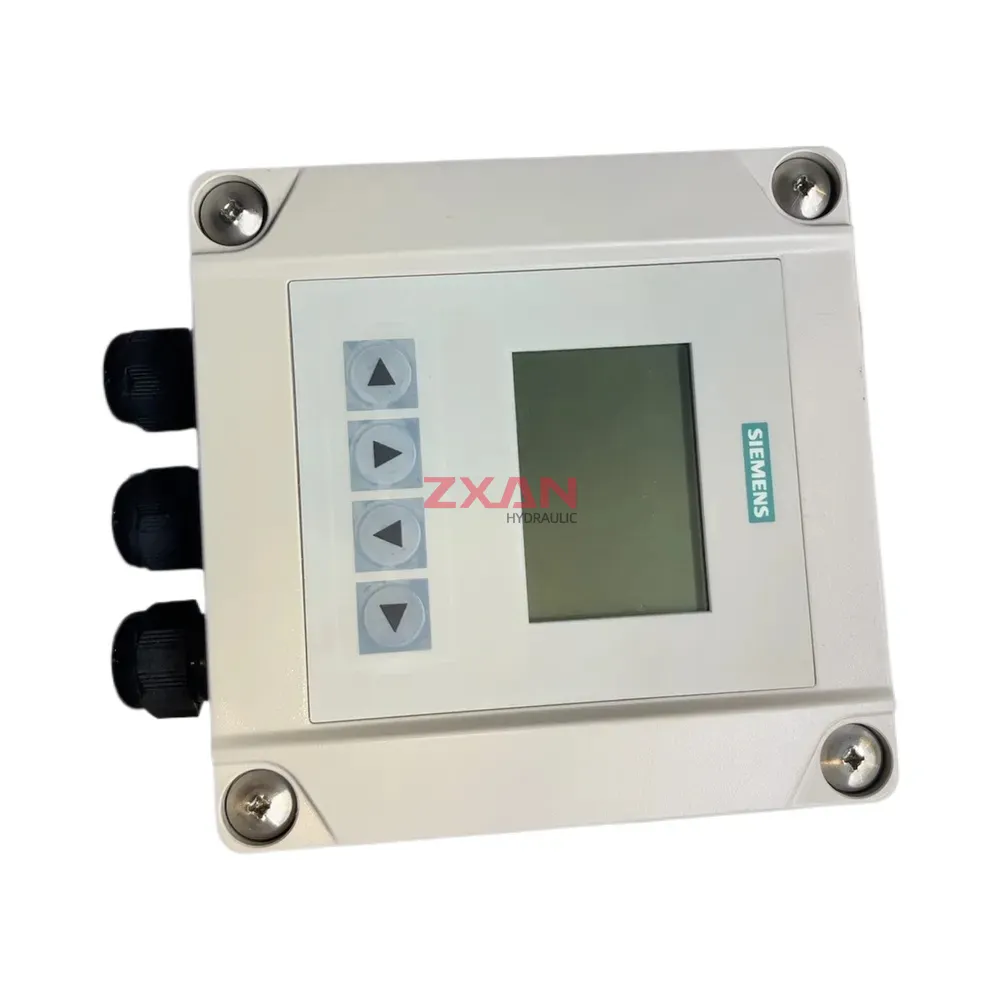

Display: Includes Local Display Interface (LDI)
Approvals: General Purpose, FM, CSA, CE, RCM, KC
| Brand | Siemens |
|---|---|
| Model | 7ML50500AA221DA0 |
