Siemens A5E01162146 Printed Circuit Board (PCB)
Buy the genuine Siemens A5E01162146 Printed Circuit Board (PCB) assembly. This industrial-grade replacement board features a built-in transformer, 35V electrolytic capacitors, X10-X17 connection points, and a protective conformal coating for maximum durability in automation systems. Fast shipping available.
Siemens A5E01162146 Printed Circuit Board (PCB)

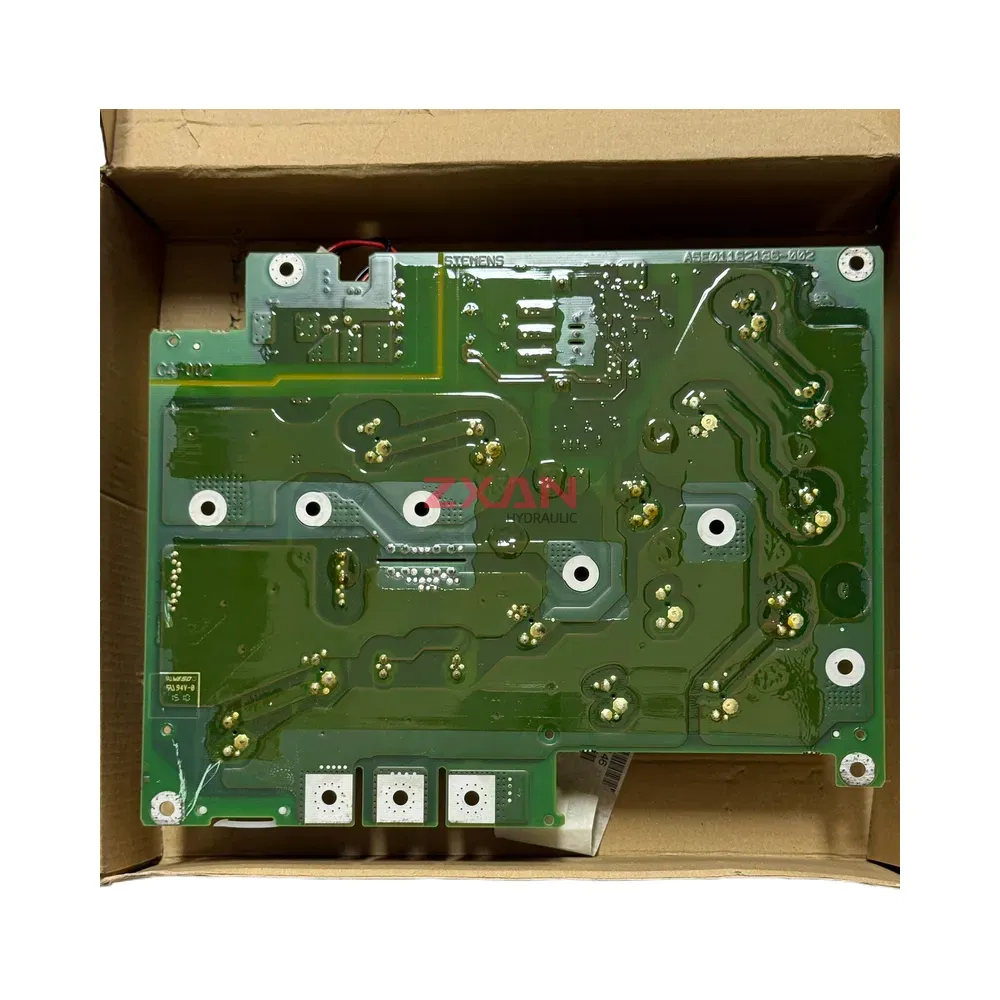

The Siemens A5E01162146 is a highly reliable industrial Printed Circuit Board (PCB) assembly engineered for demanding automation and control system environments. This robust electronic module is populated with premium components, including a central transformer, precision resistors, and multiple large electrolytic capacitors rated for 1000µF at 35V. Designed for efficient integration and maintenance, the board features clearly designated connection terminals (X10, X15, X16, X17). To guarantee long-term durability and operational safety in harsh industrial conditions, the reverse side of the PCB is treated with a protective green insulating conformal coating, which shields the soldered connections from moisture, dust, and potential electrical shorts.
Technical Specifications:
- Manufacturer: Siemens
- Model/Part Number: A5E01162146 (Includes revisions A5E01162146 B, A5E01162146-002)
- Component Type: Industrial Printed Circuit Board (PCB) Assembly
- Key On-Board Components: Transformer, Resistors, Electrolytic Capacitors (1000µF, 35V)
- Connection Interfaces: X10, X15, X16, X17 terminals
- Environmental Protection: Green insulating conformal coating on the solder side

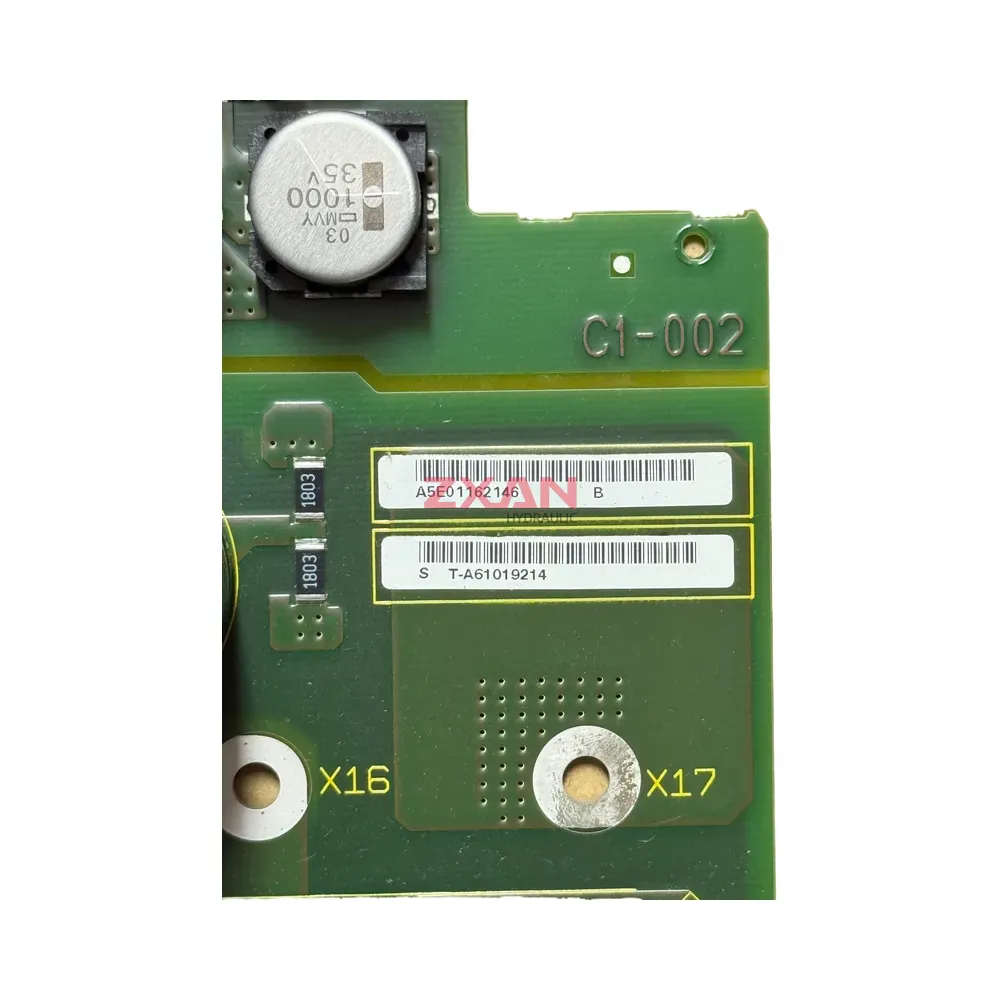

- Additional Board Markings: C1-002, ASE00753299, 003740680 EA1, E0310N J 16/10, S T-A61019214
| Brand | Siemens |
|---|---|
| Model | A5E01162146 |
