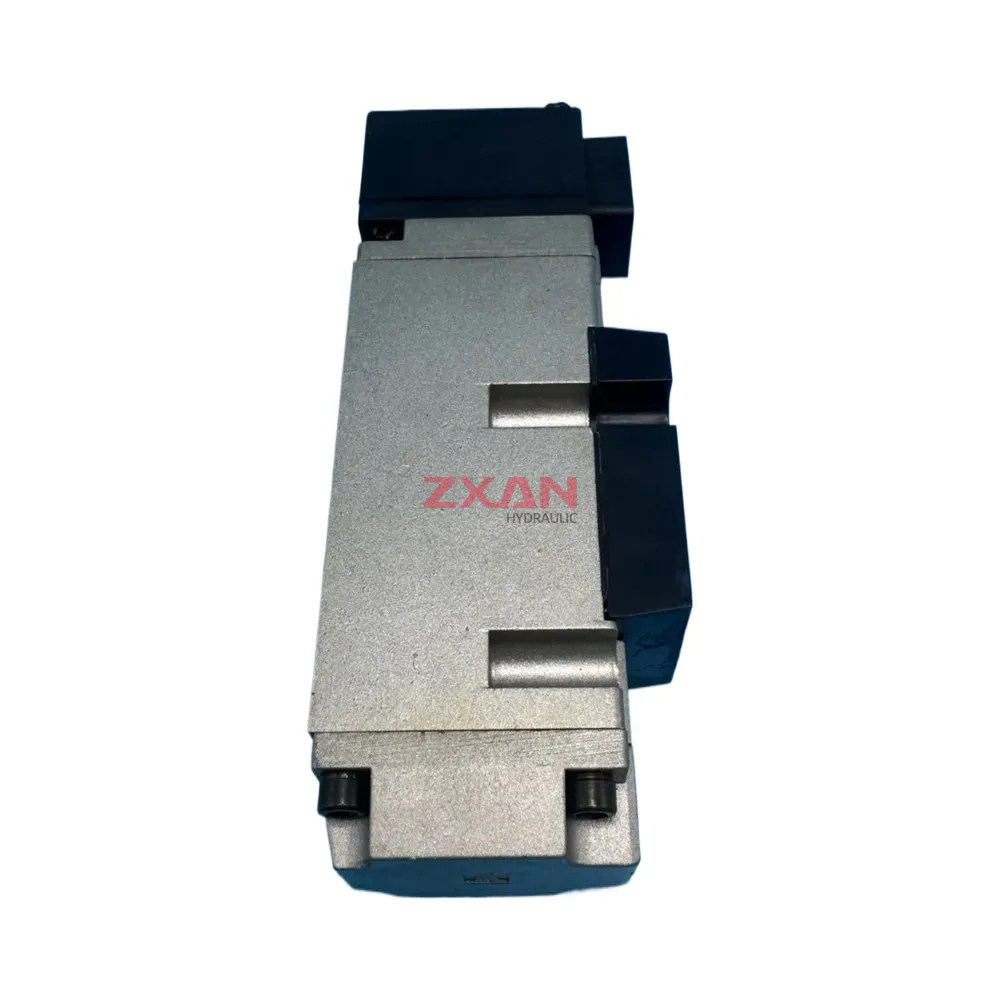

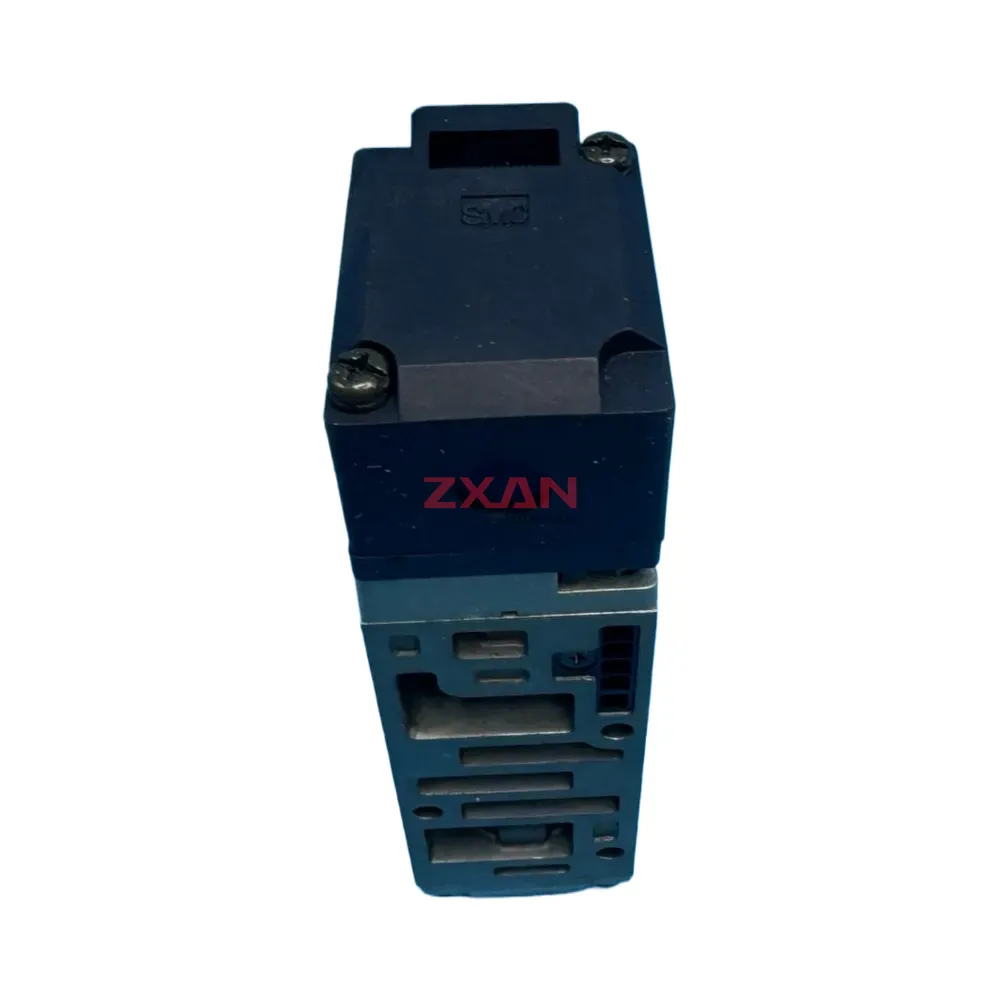

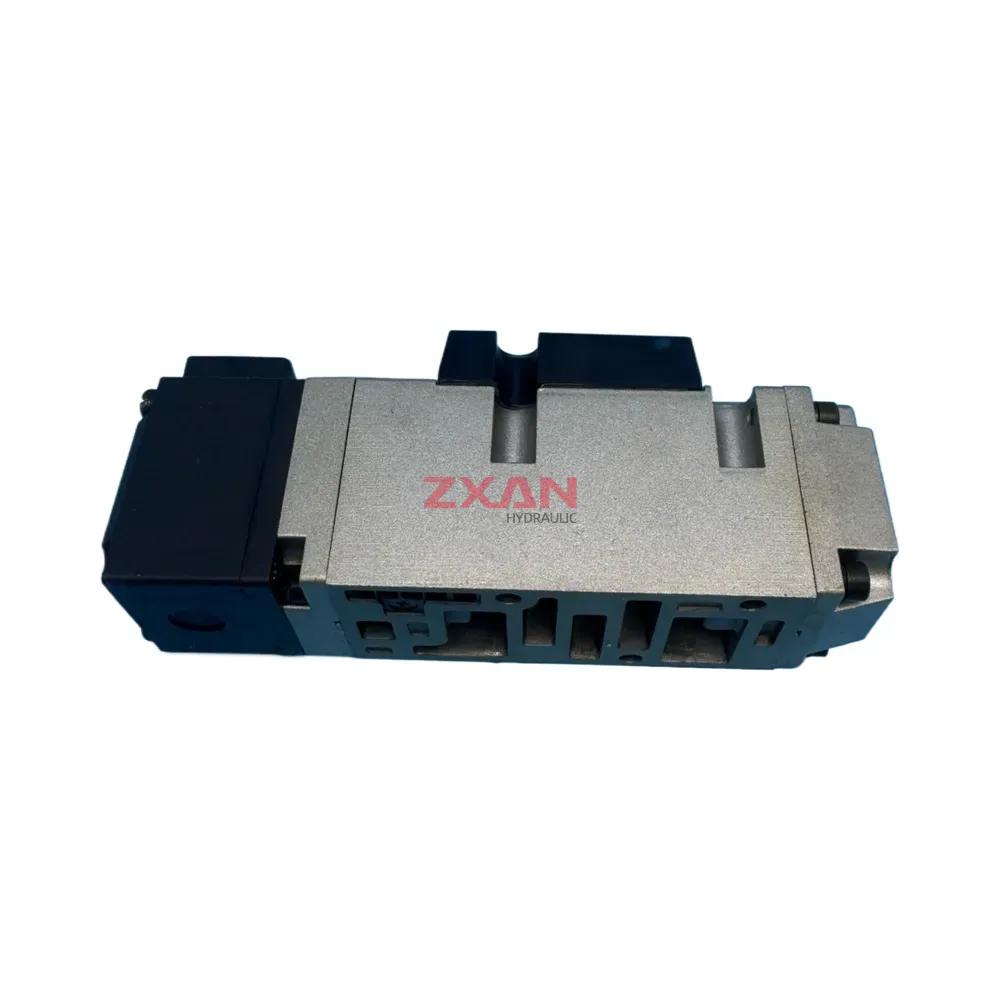

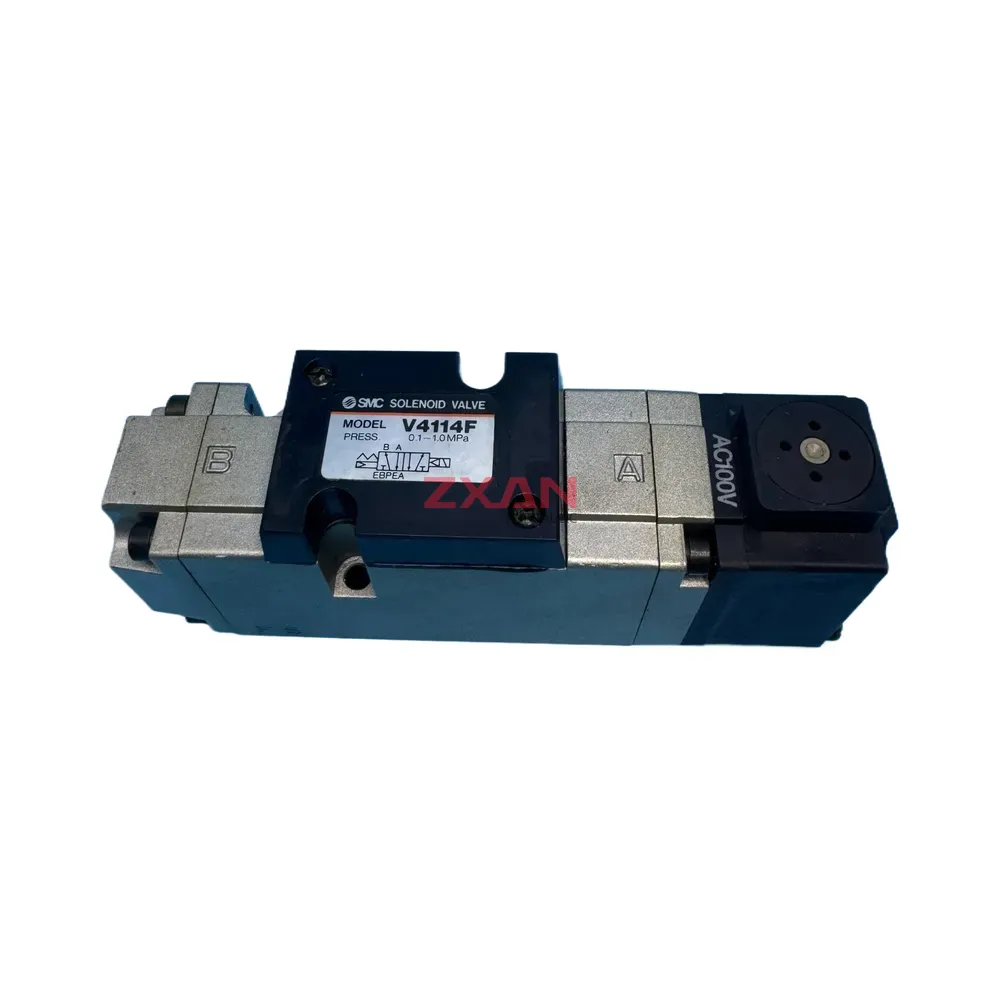

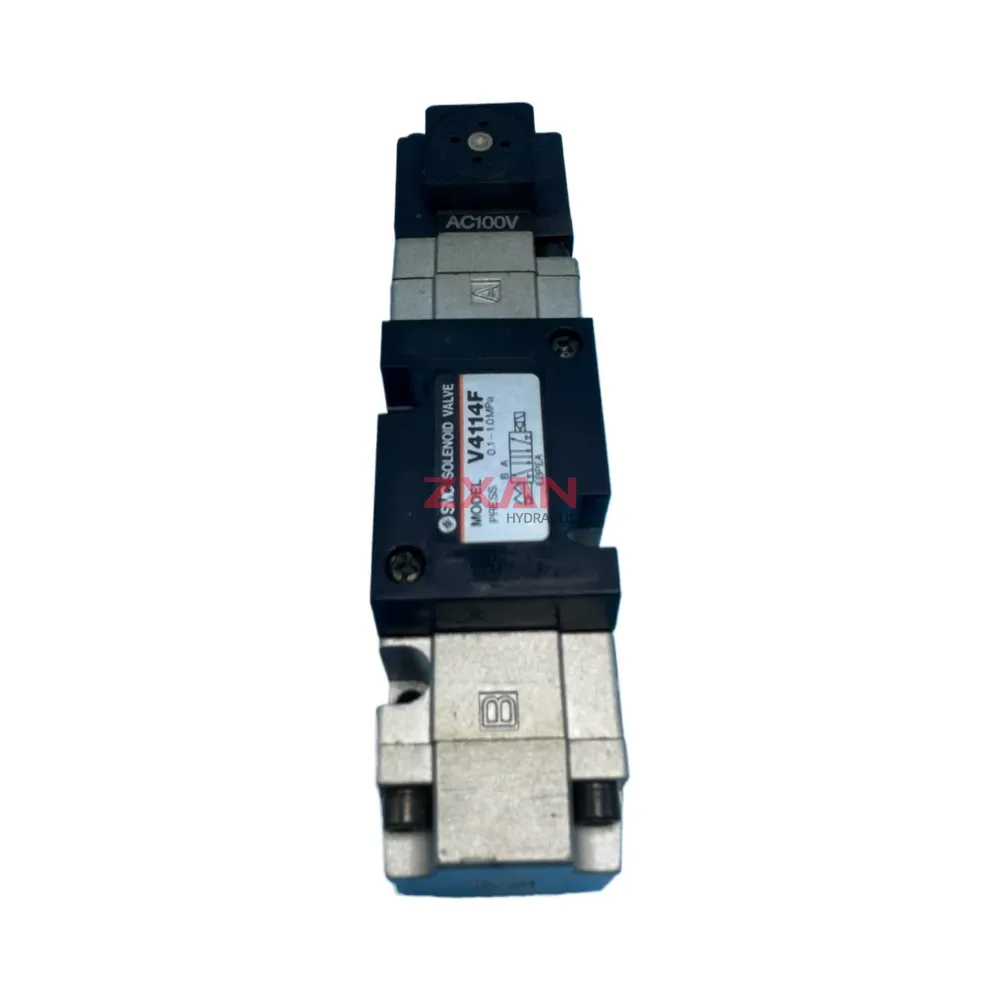

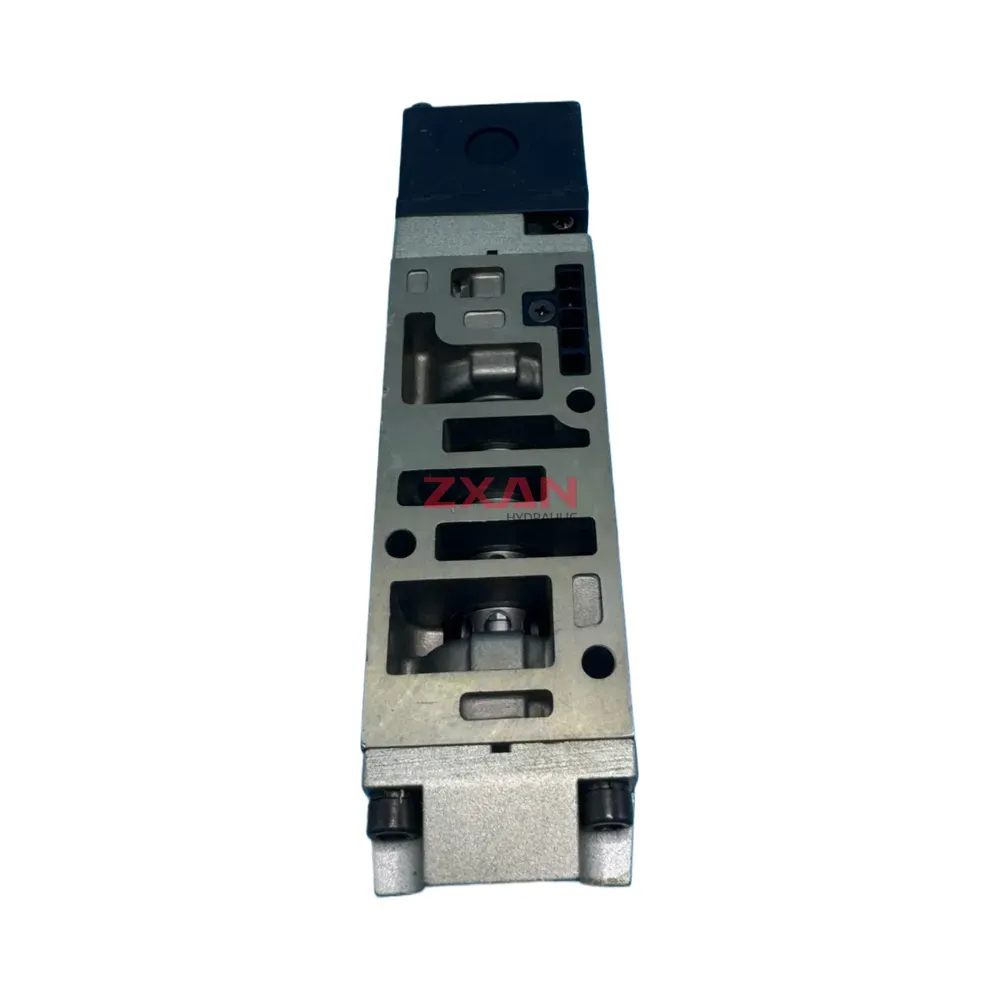

SMC V4114F
The SMC V4114F is a 5-port, pilot-operated solenoid valve from SMC’s V4000 series, designed for pneumatic system control. This valve typically features a body-ported configuration and is known for its robust metal seal construction, ensuring durability and reliable operation in various industrial automation applications. The ‘F’ in the model number commonly denotes G (PF) type threads for its ports. The V4114F is a single solenoid valve, providing efficient switching of air flow to control pneumatic actuators. Note that the solenoid coil assembly is often specified and ordered separately based on required voltage and other features.
Technical Specifications:
- Series: V4000
- Valve Type: 5-port, 2-position, single solenoid
- Operation: Internal pilot operated
- Sealing: Metal seal
- Mounting Type: Body ported
- Fluid: Air / Inert Gas
- Port Size: 1/2 inch
- Thread Type: G (PF) (as typically indicated by ‘F’)
- Operating Pressure Range (Internal Pilot): 0.15 to 1.0 MPa
- Proof Pressure: 1.5 MPa
- Ambient and Fluid Temperature: -10 to 60°C (No freezing)
- Lubrication: Not required
- Effective Area (Cv): Approximately 5.0
- Response Time (at 0.5 MPa, with coil): Typically 30 ms or less (varies with selected solenoid and operating conditions)
- Solenoid Coil: Requires compatible SMC solenoid assembly (e.g., V100 series for V4000, specified by voltage, lead wire type, etc. – ordered separately)
| Brand | SMC |
|---|---|
| Model | V4114F |
