Square D 9013GHW2 Pressure Switch
Optimize your pump or compressor system with the Square D 9013GHW2 Mechanical Pressure Switch. Factory-set to 70-100 PSI, this heavy-duty 2-pole switch supports versatile 1-phase, 3-phase, and DC applications. UL Listed and NSF/ANSI 372 compliant for reliable, safe industrial performance.
Square D 9013GHW2 Pressure Switch

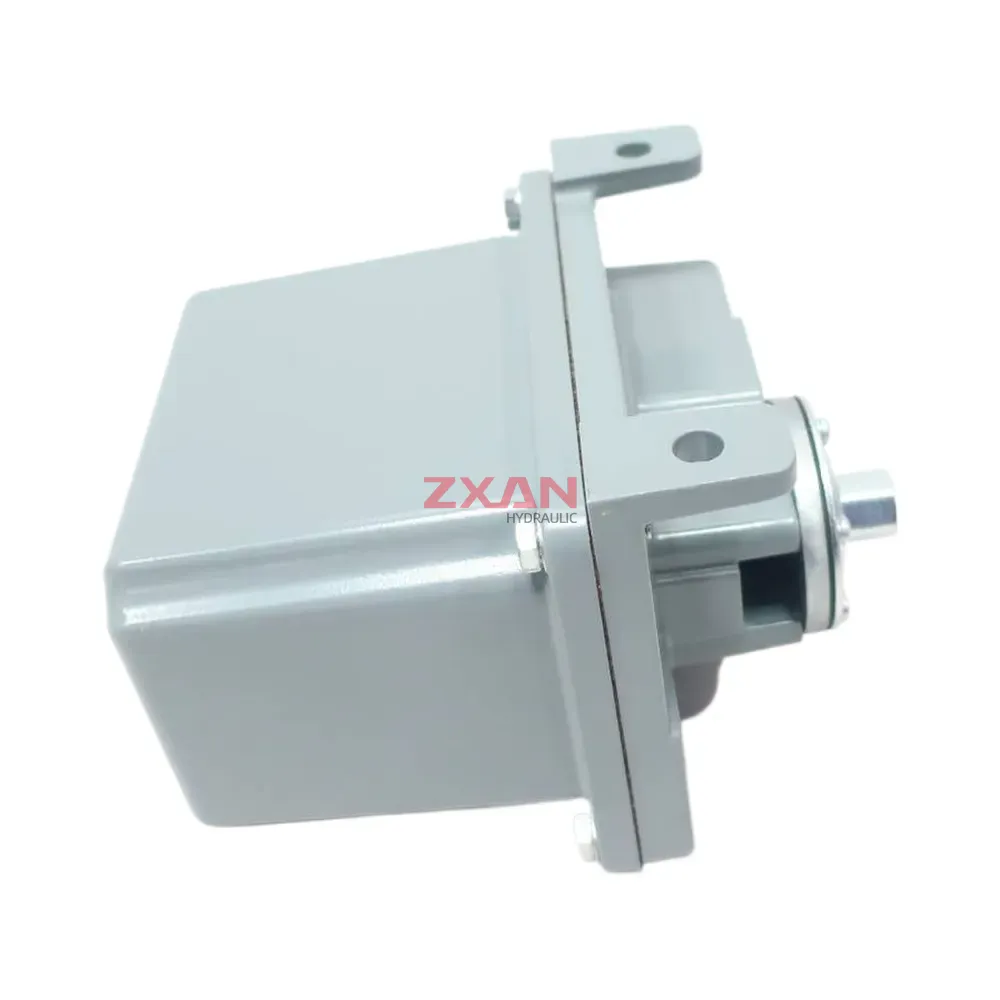

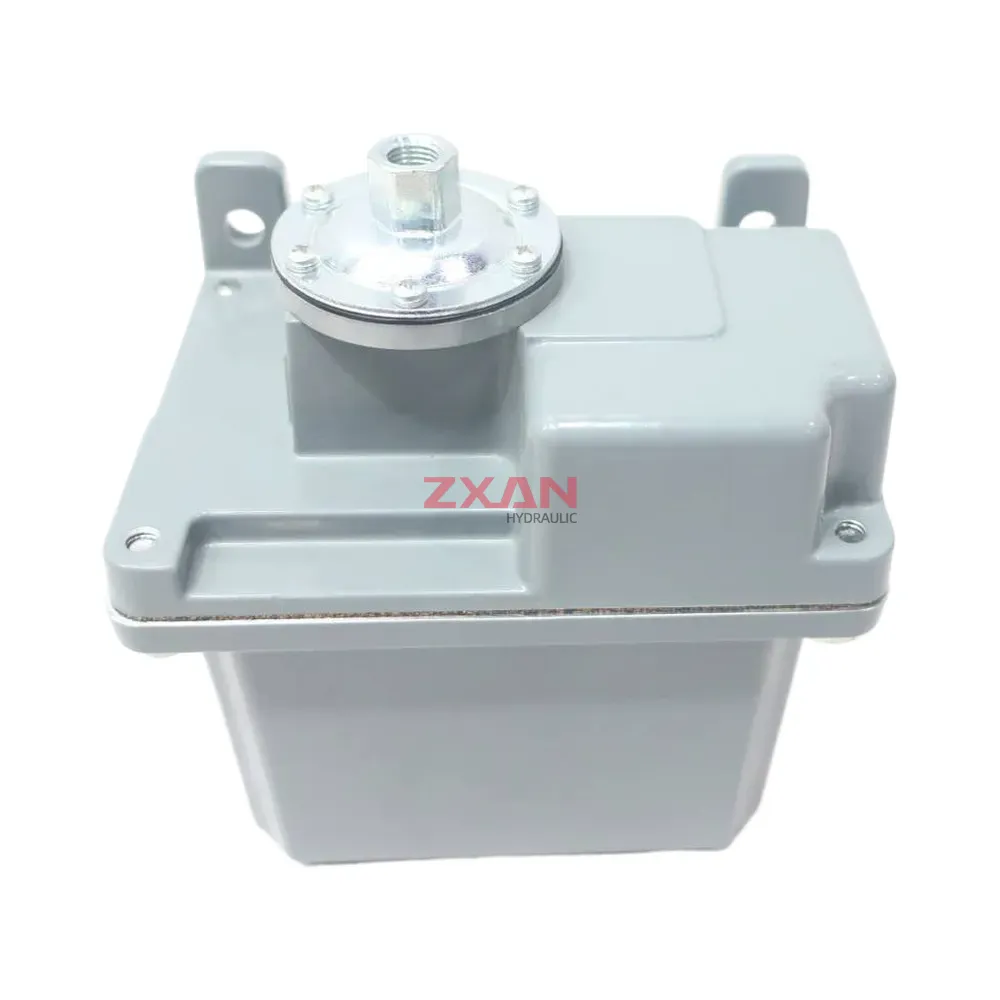

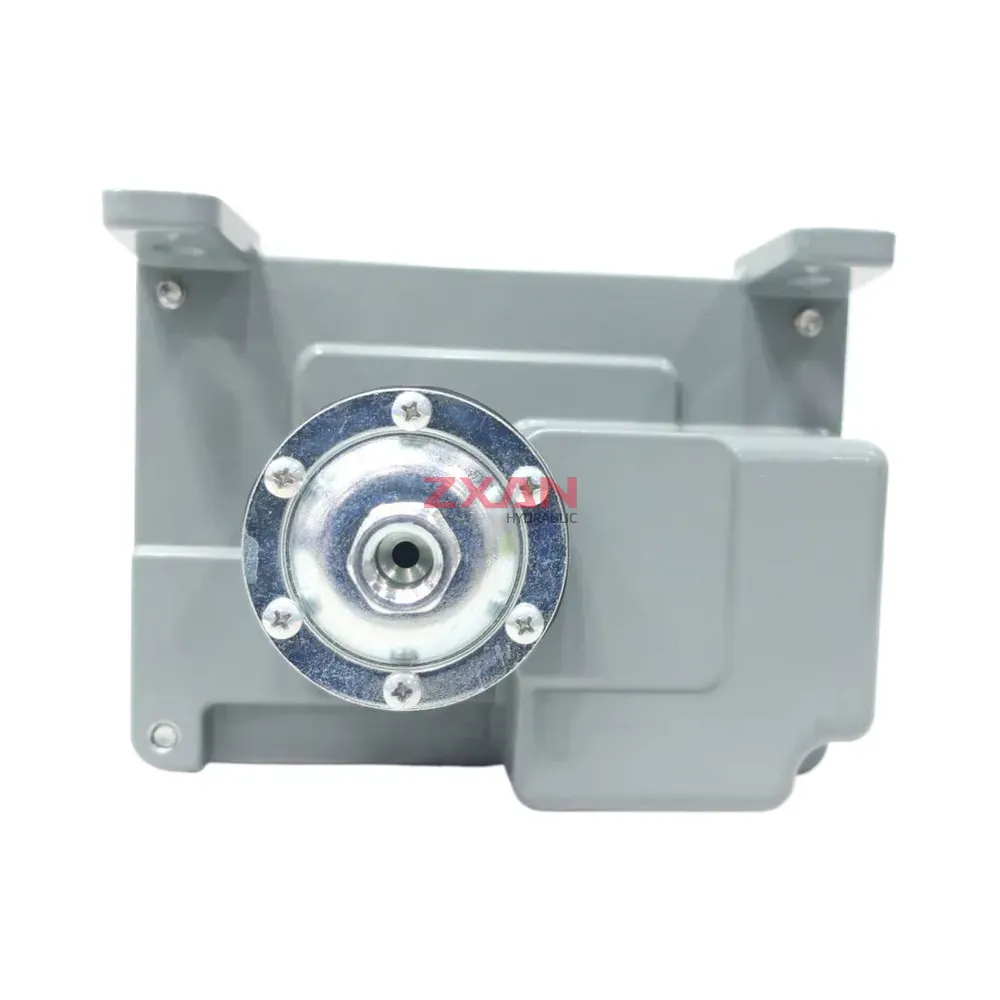

The Square D 9013GHW2 by Schneider Electric is a highly reliable, commercial-grade mechanical pressure switch designed for the automated control of electrically driven water pumps and air compressors. Part of the Class 9013 family, this Type GHW2 switch features robust 2-pole contacts and comes factory-set to open at 100 PSI and close at 70 PSI. Built for demanding industrial control applications, it includes a durable diaphragm housing, a threaded pressure connection port, and a sturdy mounting bracket. It supports a wide range of horsepower ratings across 1-phase, 3-phase, and DC voltages, ensuring versatile integration into existing systems. Rated for use with 60/75°C copper wire, this switch is UL Listed, CSA certified, and meets NSF/ANSI 372 standards for safety and compliance.

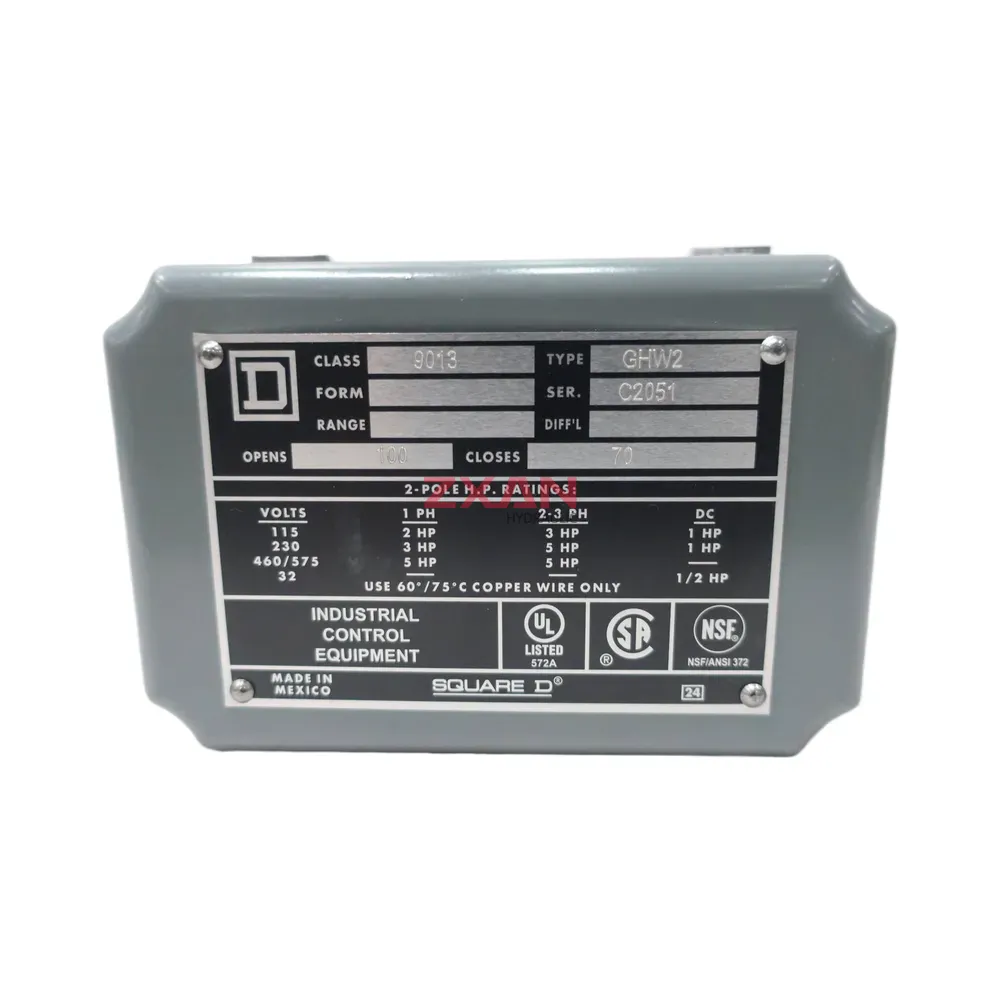

Technical Specifications:
- Brand: Square D
- Model: 9013GHW2 (Class 9013, Type GHW2)
- Pressure Setting: Opens at 100 PSI, Closes at 70 PSI
- Contact Configuration: 2-Pole
- 1-Phase HP Ratings: 115V (2 HP), 230V (3 HP), 460/575V (5 HP)
- 2-3 Phase HP Ratings: 115V (3 HP), 230V (5 HP), 460/575V (5 HP)
- DC HP Ratings: 115V (1 HP), 230V (1 HP), 32V (1/2 HP)
- Certifications: UL Listed 572A, CSA Certified, NSF/ANSI 372
- Wiring Requirements: Use 60/75°C copper wire only
| Brand | SQUARE D |
|---|---|
| Model | 9013GHW2 |
