SWAGELOK SS -45S12M
Discover the Swagelok SS-45S12M, a durable 3-way switching ball valve made from 316 stainless steel. Features 12 mm metric Swagelok® tube fitting connections for secure, leak-tight performance in high-pressure fluid control systems.
SWAGELOK SS -45S12M

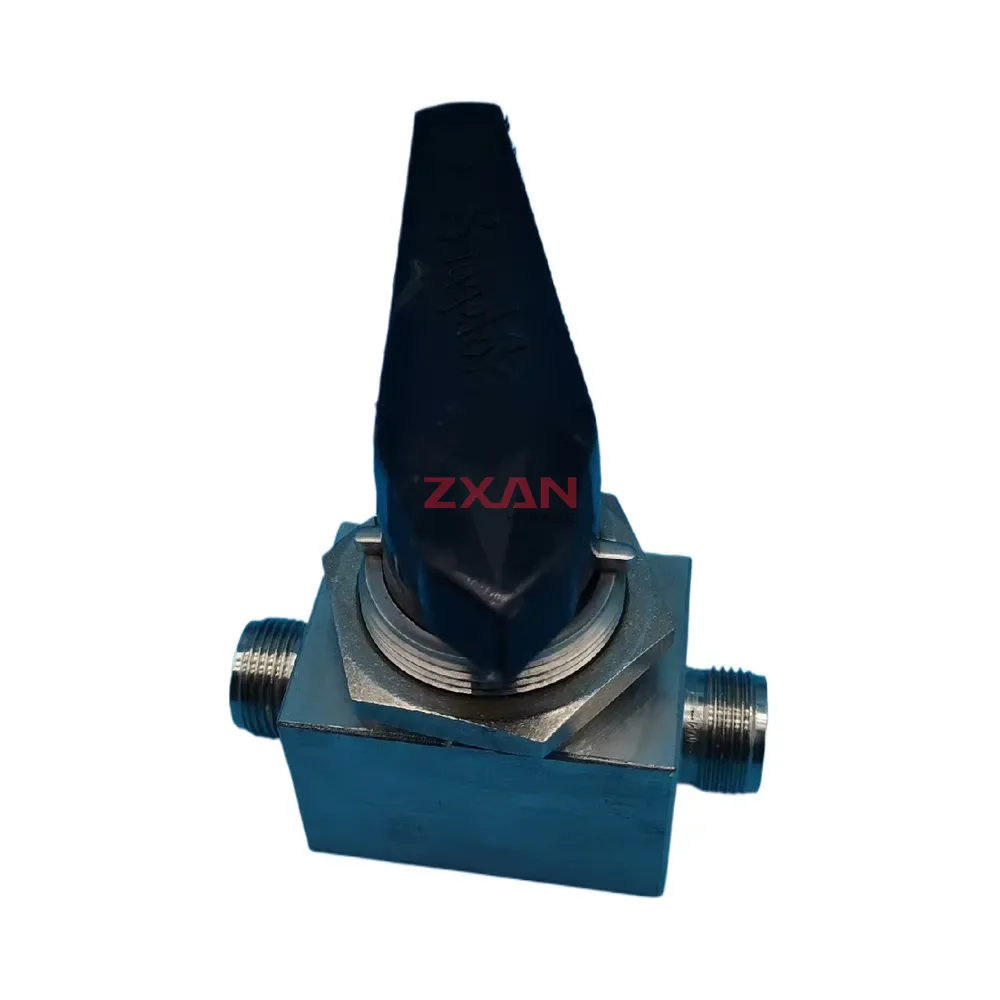

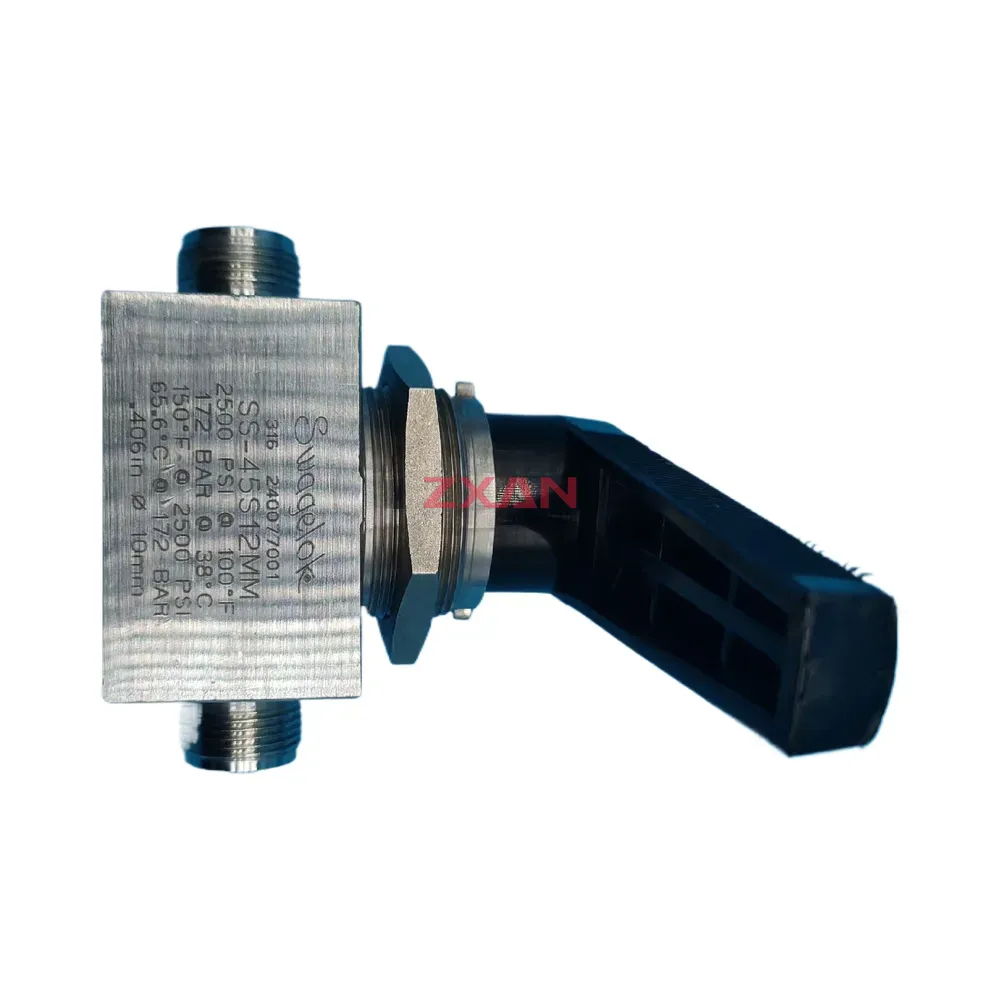

The Swagelok SS-45S12M is a high-performance 3-way switching ball valve engineered for reliability and long service life in demanding fluid systems. Constructed from 316 stainless steel, it offers excellent corrosion resistance and material durability. This valve is designed for quick, quarter-turn actuation to divert flow between different ports. It features integral 12 mm Swagelok® tube fitting connections, which provide a secure, leak-tight, and easy-to-install seal without the need for thread sealants. The one-piece, encapsulated ball stem and packing design minimizes dead space and enhances performance, making it an ideal choice for instrumentation, process control, and general industrial applications.

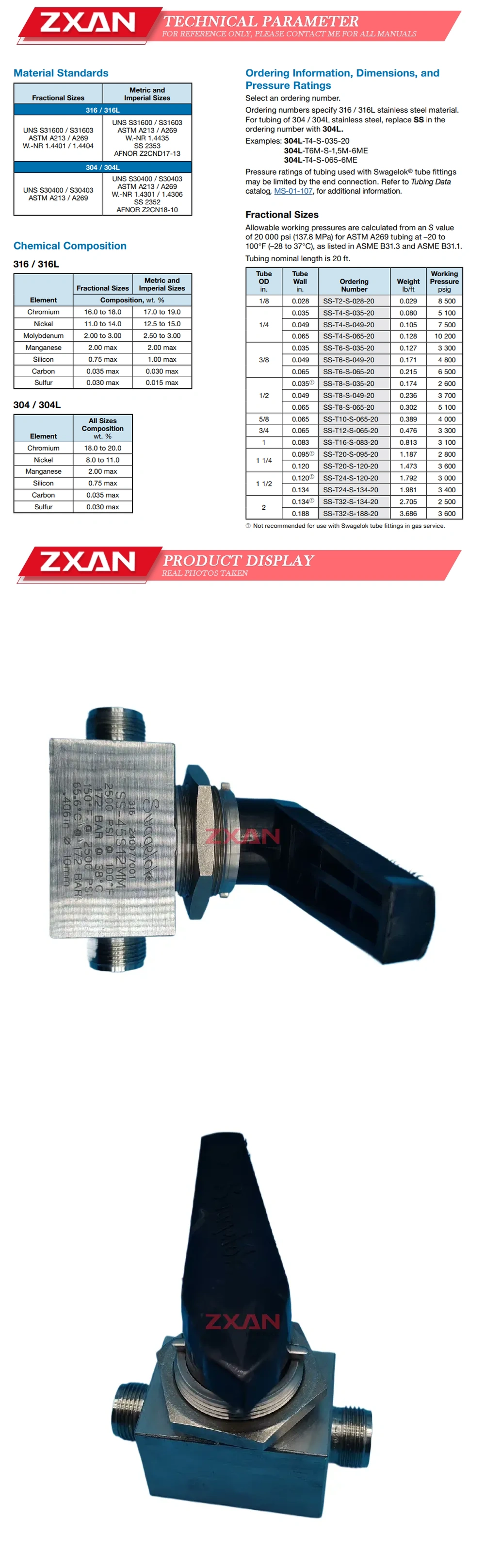

Technical Specifications:
- Body Material: 316 Stainless Steel
- Connection Type: Swagelok® Tube Fitting
- Connection Size: 12 mm (All Ports)
- Valve Type: 3-Way Ball Valve (Switching Flow Pattern)
- Maximum Working Pressure: 2500 PSIG (172 bar) @ 100°F (37°C)
- Orifice Size: 0.281 in. / 7.1 mm
- Handle Type: Black Nylon Lever
| Brand | Swagelok |
|---|---|
| Model | SS -45S12M |
