TEL E2B119-12/86MC Controller Board Module
Upgrade or repair your semiconductor equipment with the genuine TEL E2B119-12/86MC Controller Board Module by Tokyo Electron. This Rev. A industrial PCB features a powerful Altera Cyclone V FPGA, dual LAN connectivity, and comprehensive DIO interfaces for reliable system control. Made in Japan.
TEL E2B119-12/86MC Controller Board Module

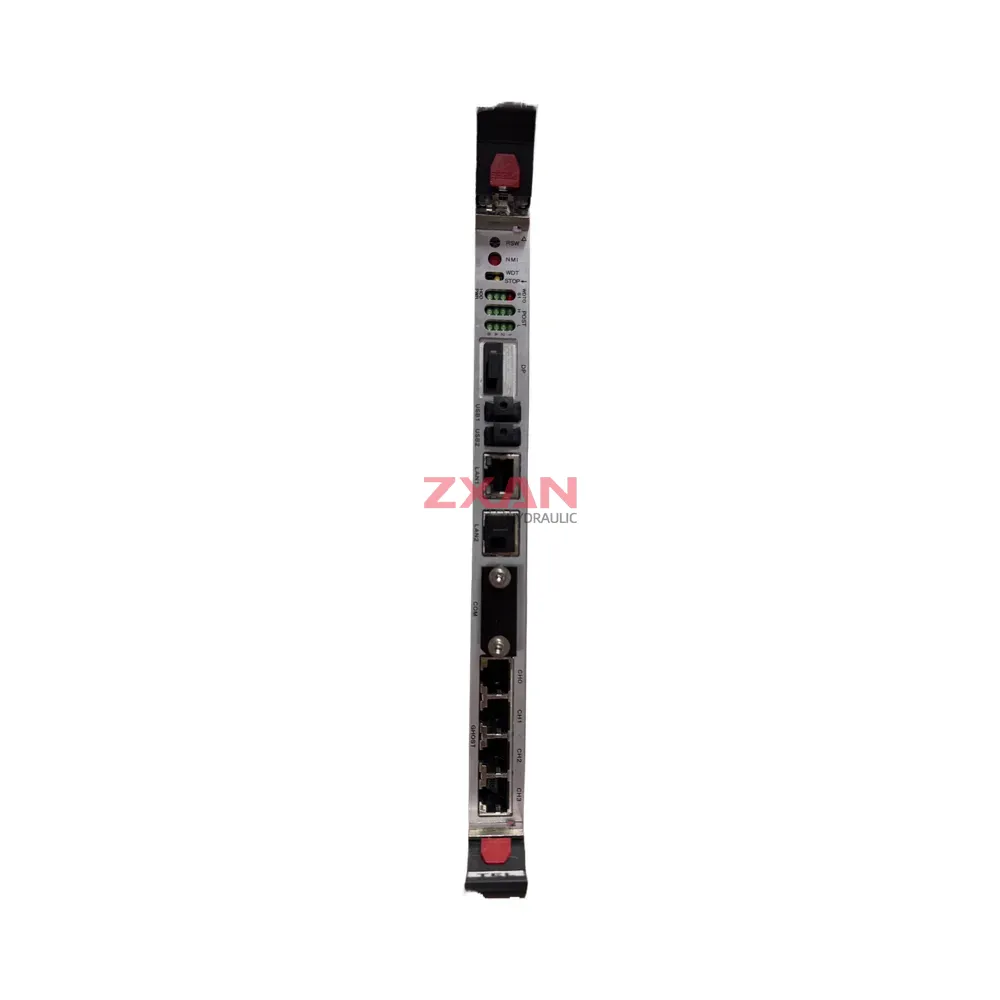

The TEL E2B119-12/86MC is a high-performance industrial controller board module manufactured by Tokyo Electron (TEL), engineered specifically for precision control in advanced semiconductor manufacturing equipment. This Revision A printed circuit board (PCB) is driven by a robust Altera Cyclone V FPGA chip, which is equipped with a large dedicated heatsink to ensure optimal thermal management and stability during continuous industrial operation. The front interface is designed for comprehensive system integration and diagnostics, featuring quick-reference status LEDs (RUN, NMI, WDT, STOP), dual LAN ports for reliable network communications, USB ports, COM ports, and DIO connectors. Manufactured in Japan to strict quality standards, this module also includes an onboard coin cell battery for critical system memory and RTC backup.
Technical Specifications:
- Manufacturer: Tokyo Electron (TEL)
- Model Number: E2B119-12/86MC (Rev. A)

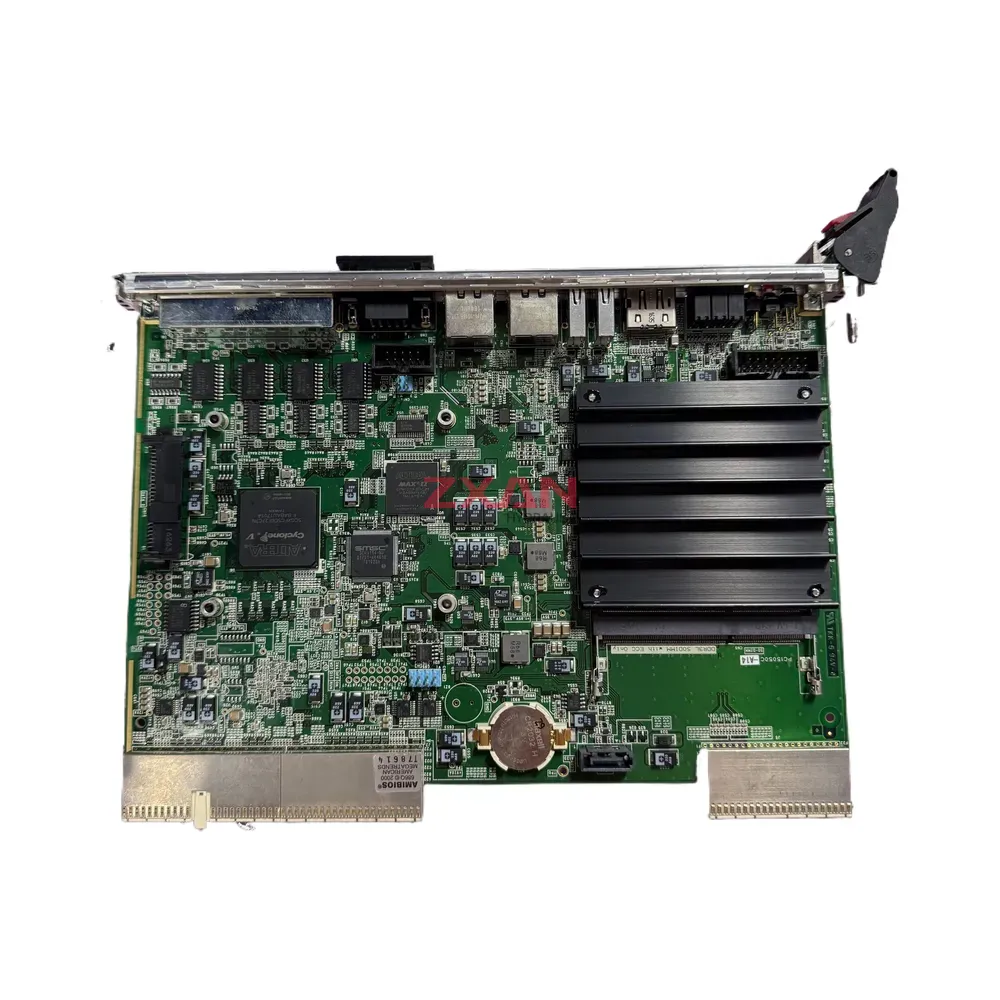

- Core Processor: Altera Cyclone V FPGA (with active thermal heatsink)

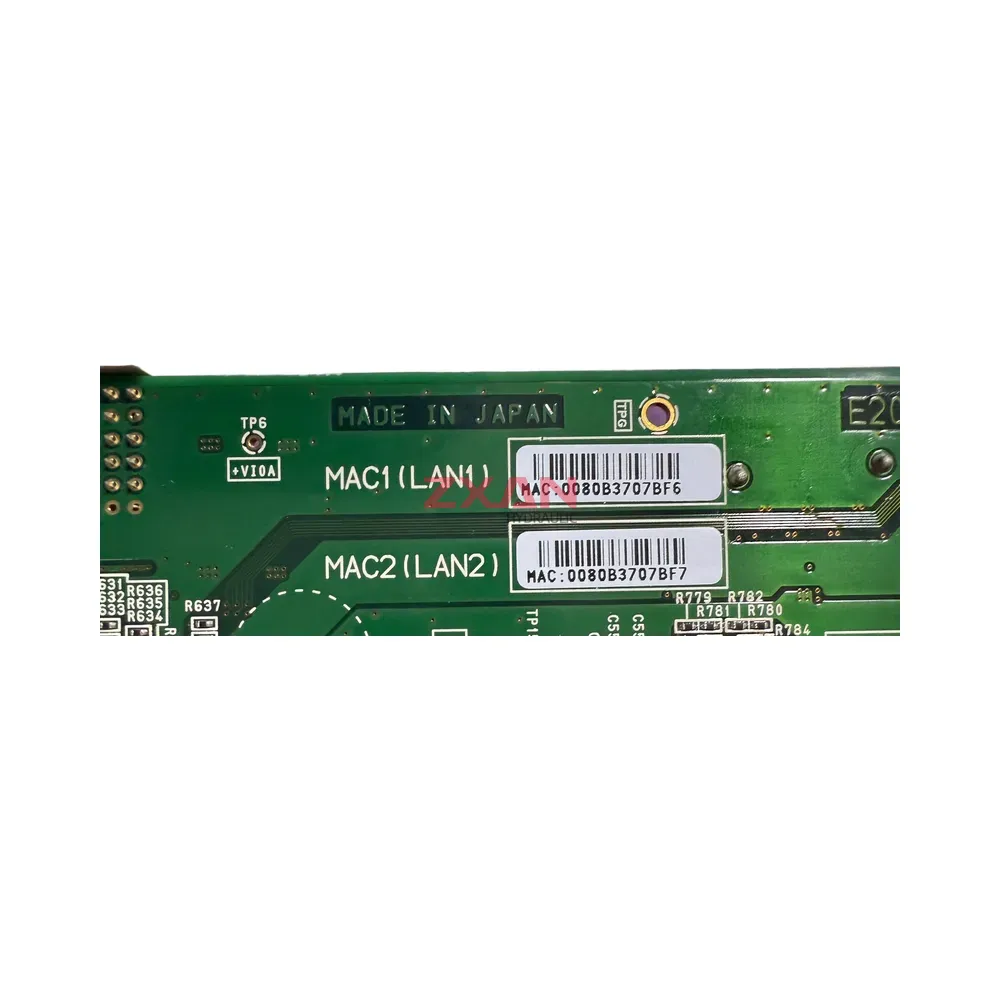

- Connectivity & I/O: Dual LAN (LAN1/LAN2), USB ports, COM ports, DIO connectors
- Status Indicators: Front-panel LEDs (RUN, NMI, WDT, STOP)

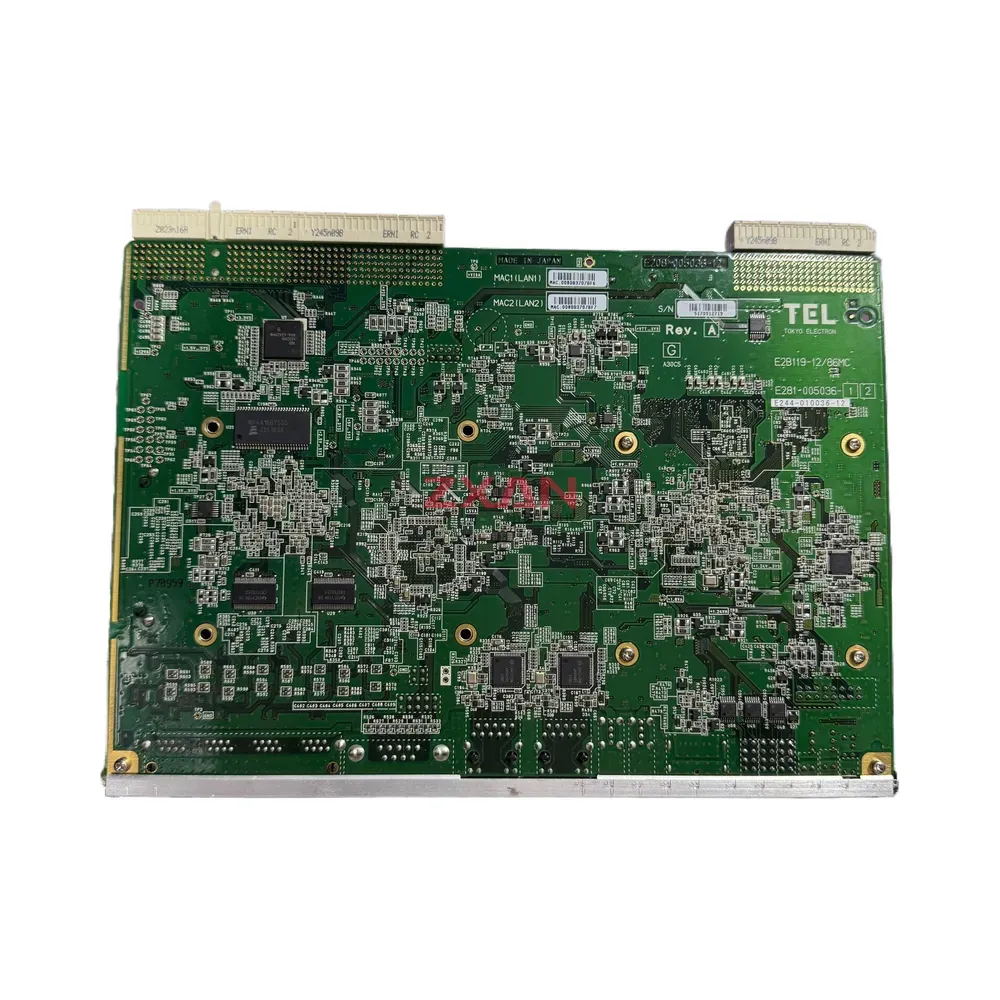

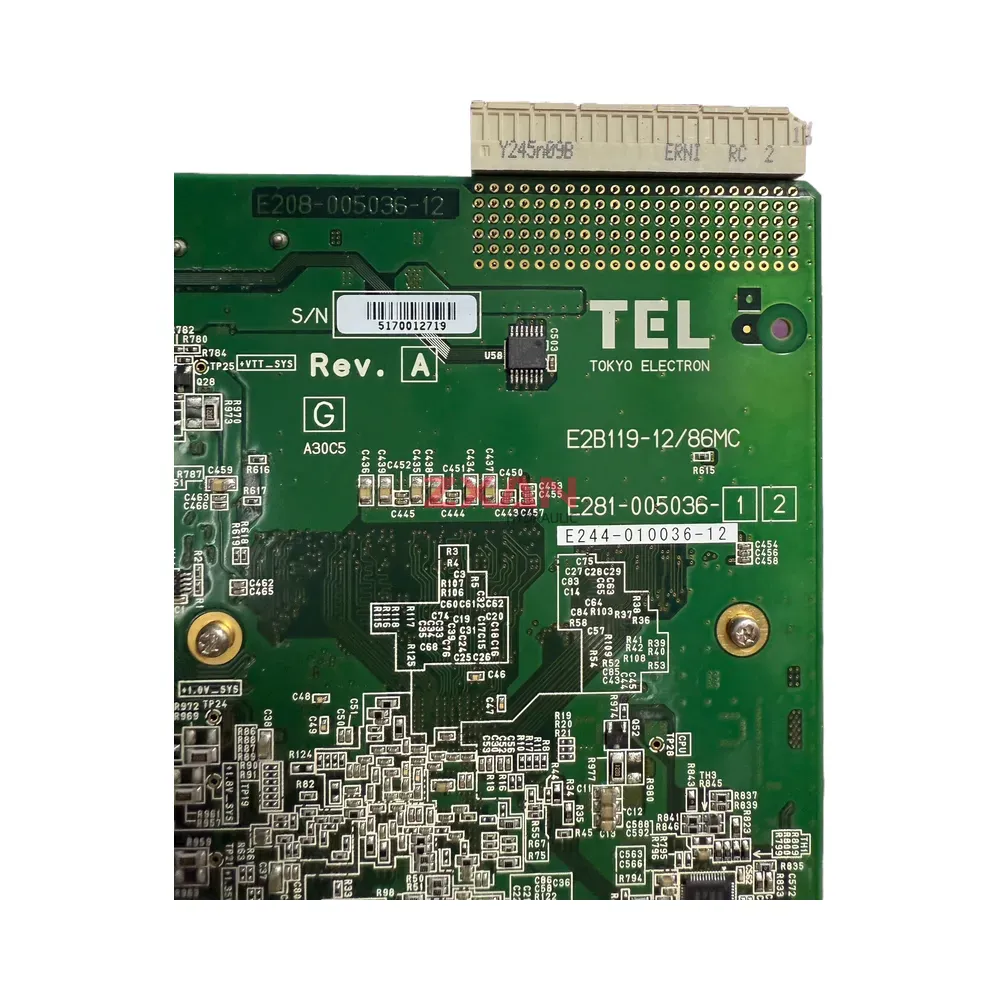

- Compatible Part Numbers: E281-005036-12, E244-010036-12, E208-005036-12
- Country of Origin: Made in Japan
| Brand | TEL |
|---|---|
| Model | E2B119-12/86MC |
