Varian 100010077 MOTCOMM PCB Assembly
Shop the Varian 100010077 MOTCOMM PCB Assembly. This genuine motion communication board features Actel A42MX24 FPGA chips, built-in diagnostic LEDs, and a metal front panel with Xmit/Rec ports. Ideal for maintaining, repairing, and optimizing your Varian systems.
Varian 100010077 MOTCOMM PCB Assembly

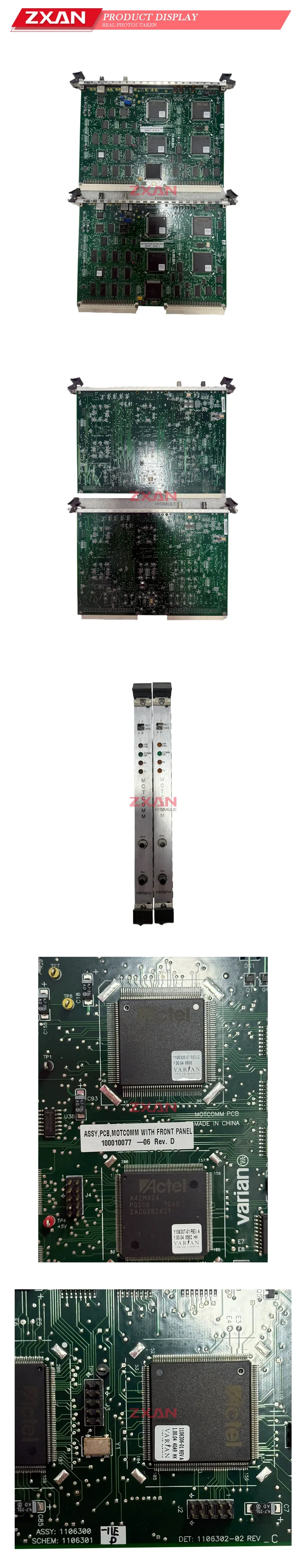

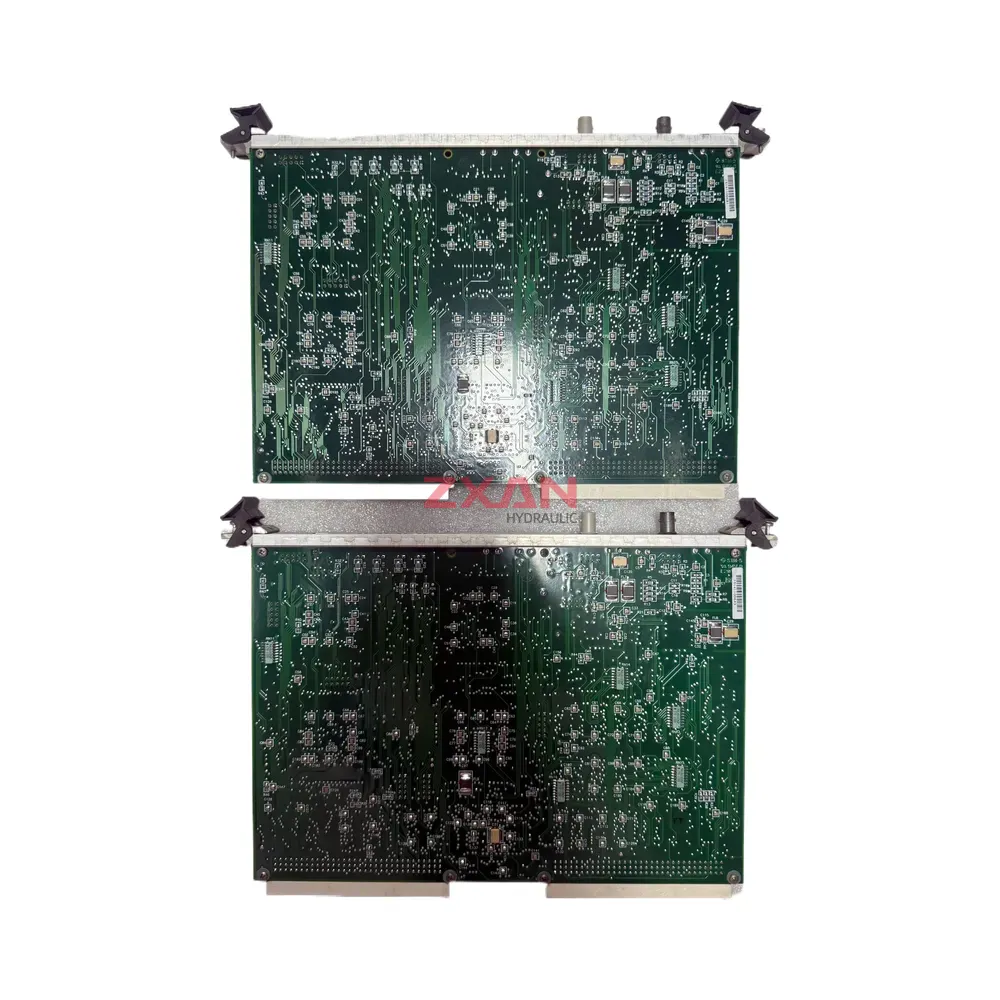

The Varian 100010077 MOTCOMM (Motion Communication) PCB Assembly is a highly reliable printed circuit board designed for precision communication and motion control within Varian equipment systems. This comprehensive assembly includes the main PCB seamlessly integrated with a durable metal front panel faceplate for secure installation and easy access. It is engineered with multiple high-performance Actel FPGA chips, specifically including the A42MX24 model, ensuring robust data processing and signal management. For straightforward system diagnostics and streamlined connectivity, the front panel features intuitive status LEDs (HW FAIL, COMM OK, Rx, and Tx) alongside dedicated Xmit and Rec communication ports.
Technical Specifications:
- Brand: Varian
- Model/Part Number: 100010077 (100010077-06 Rev. D)
- Product Type: MOTCOMM (Motion Communication) PCB Assembly with Front Panel

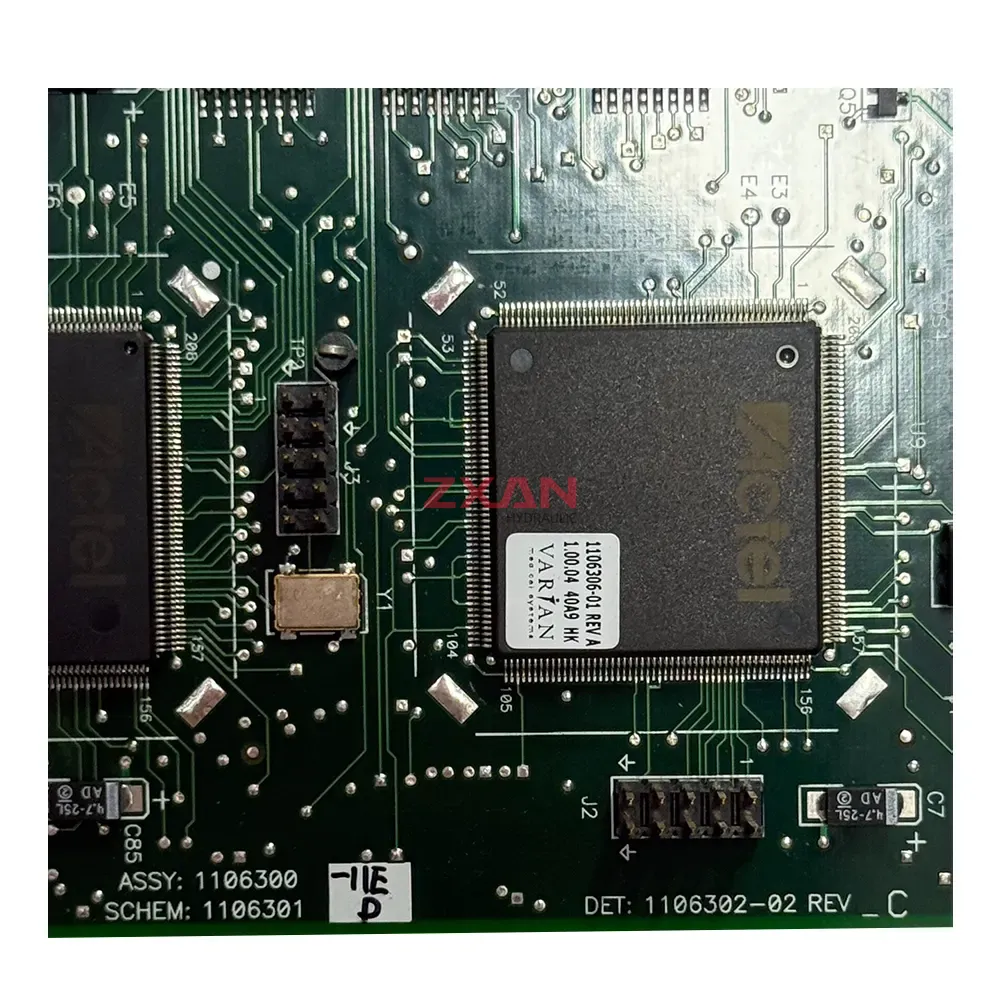

- Key Components: Actel FPGA chips (including model A42MX24)

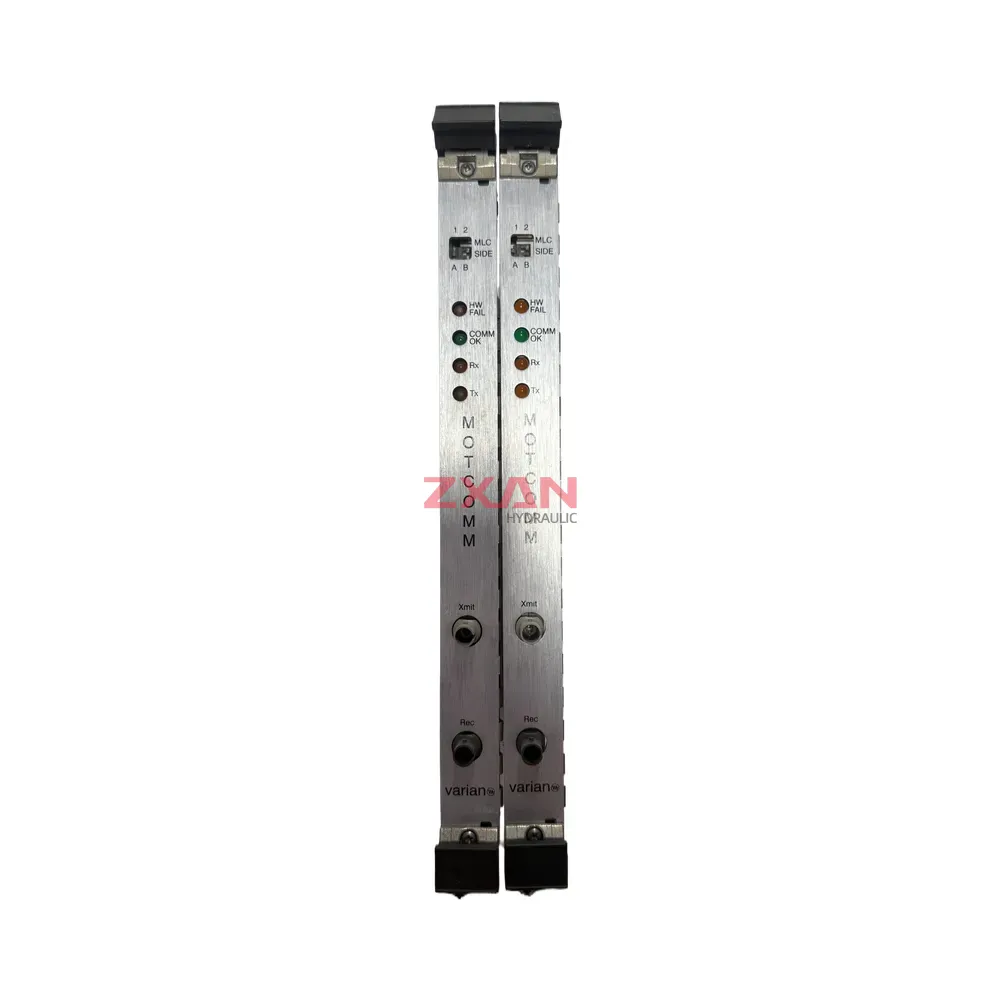

- Status Indicators: LED indicators for HW FAIL, COMM OK, Rx, and Tx
- Communication Interfaces: Xmit (Transmit) and Rec (Receive) ports
- Associated Board Numbers: ASSY: 1106300, SCHEM: 1106301, DET: 1106302-02 REV C
| Brand | Varian |
|---|---|
| Model | 100010077 |
