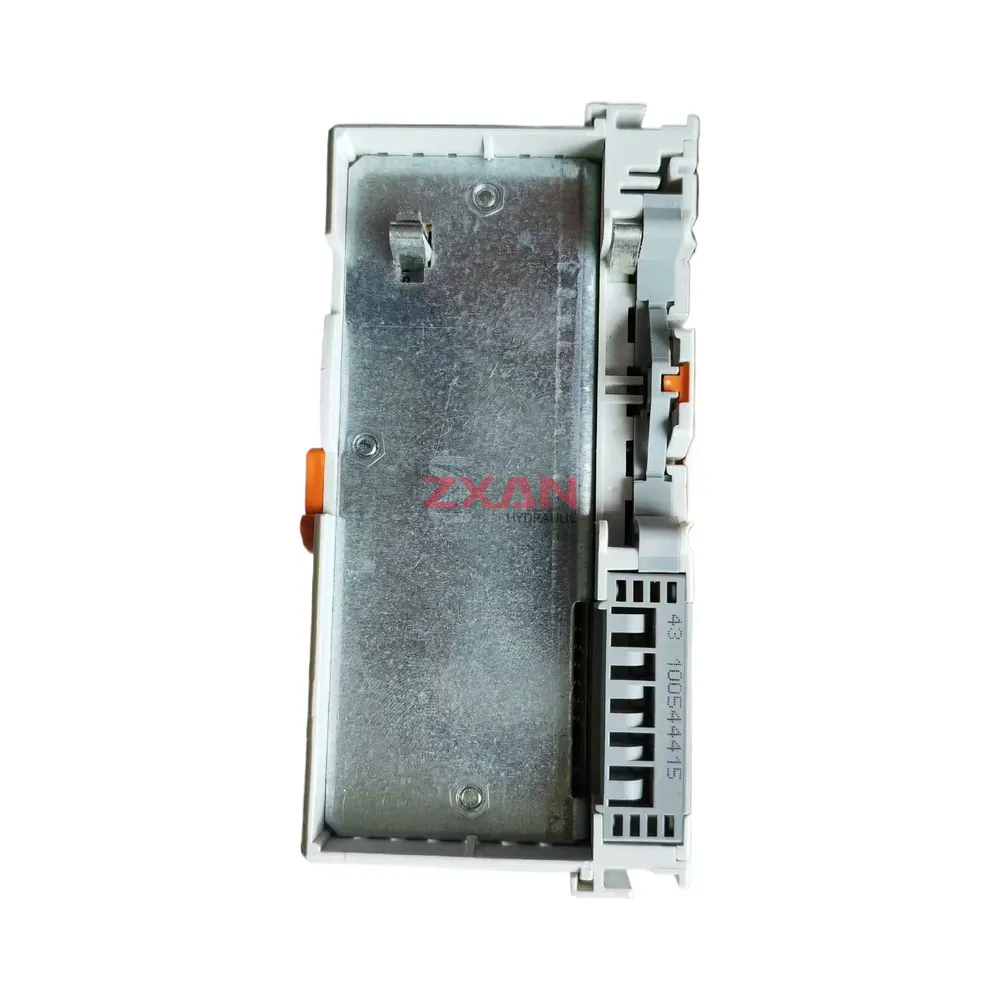

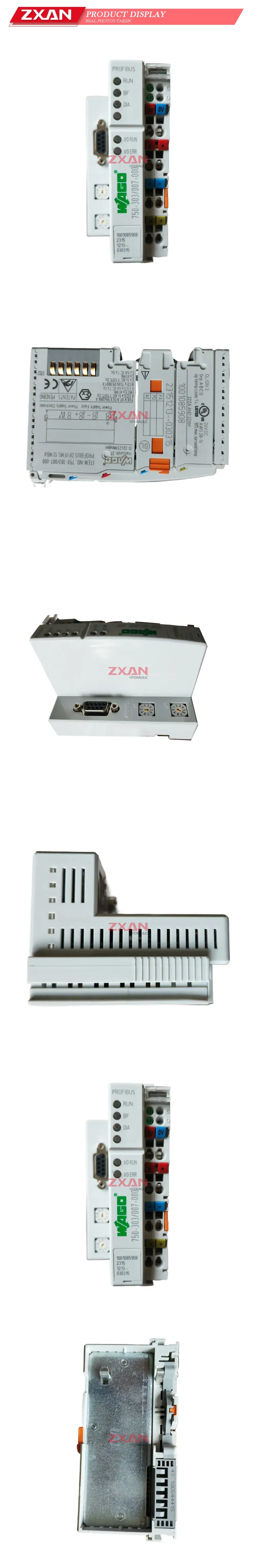

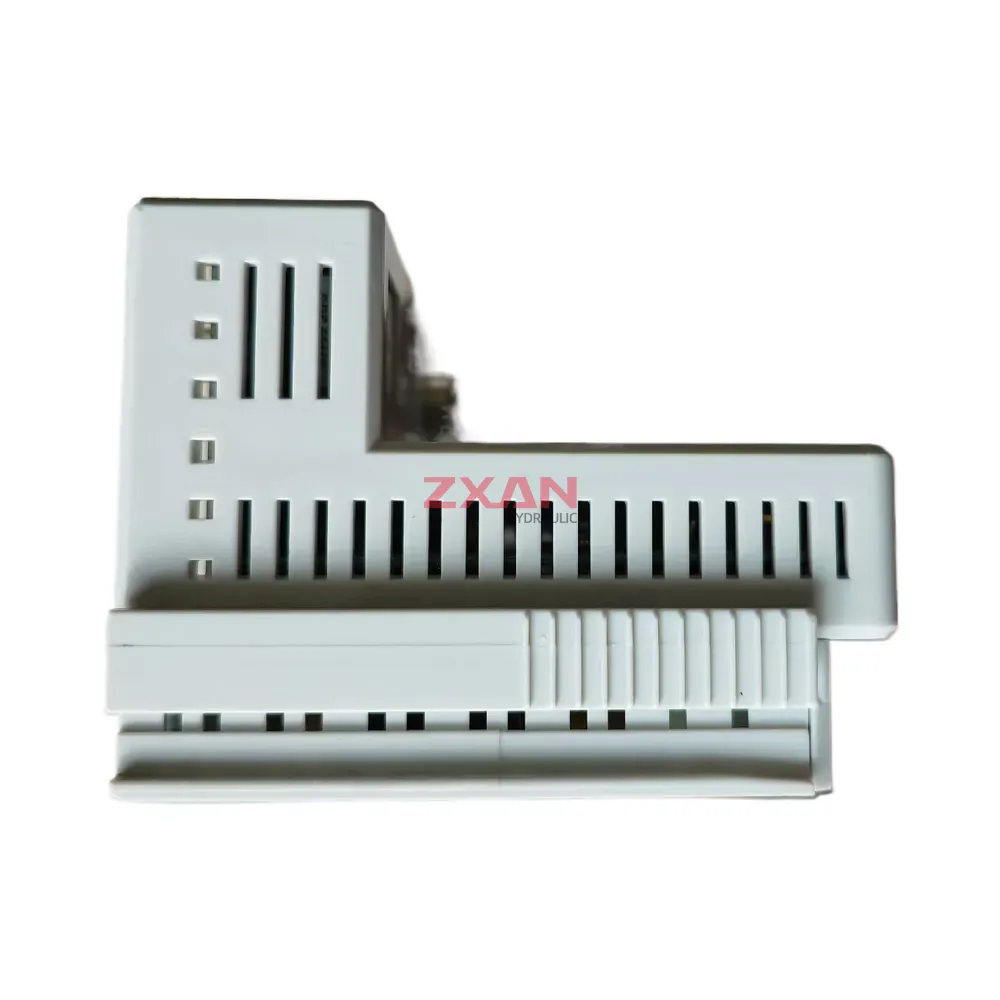

WAGO 750-303/007-000 PROFIBUS DP Fieldbus Coupler
Connect your WAGO I/O-SYSTEM to a PROFIBUS DP network with the WAGO 750-303/007-000 Fieldbus Coupler. This reliable coupler supports speeds up to 12 MBd, features easy node address setting, and is certified for hazardous locations (ATEX, IECEx, UL Class I Div 2).
WAGO 750-303/007-000 PROFIBUS DP Fieldbus Coupler
The WAGO 750-303/007-000 is a robust Fieldbus Coupler designed to seamlessly integrate the WAGO I/O-SYSTEM 750 with a PROFIBUS DP/FMS network. It automatically detects all connected I/O modules and creates a local process image for efficient data exchange. This coupler supports high-speed communication with transmission rates up to 12 MBd, which it automatically detects. Configuration is simplified with two rotary switches for setting the node address directly on the device. Comprehensive diagnostic LEDs for bus status (RUN, BF, DIA) and I/O status (I/O RUN, I/O ERR) provide immediate visual feedback for quick troubleshooting. Certified for use in hazardous areas (ATEX, IECEx) and UL Listed for Class I Division 2 applications, this coupler ensures reliable performance in demanding industrial environments.
Technical Specifications:
- Communication Protocol: PROFIBUS DP/FMS
- Transmission Rate: Automatically detected, up to 12 MBd
- System Voltage: 24 VDC
- Bus Connection: 1 x DB9 female connector

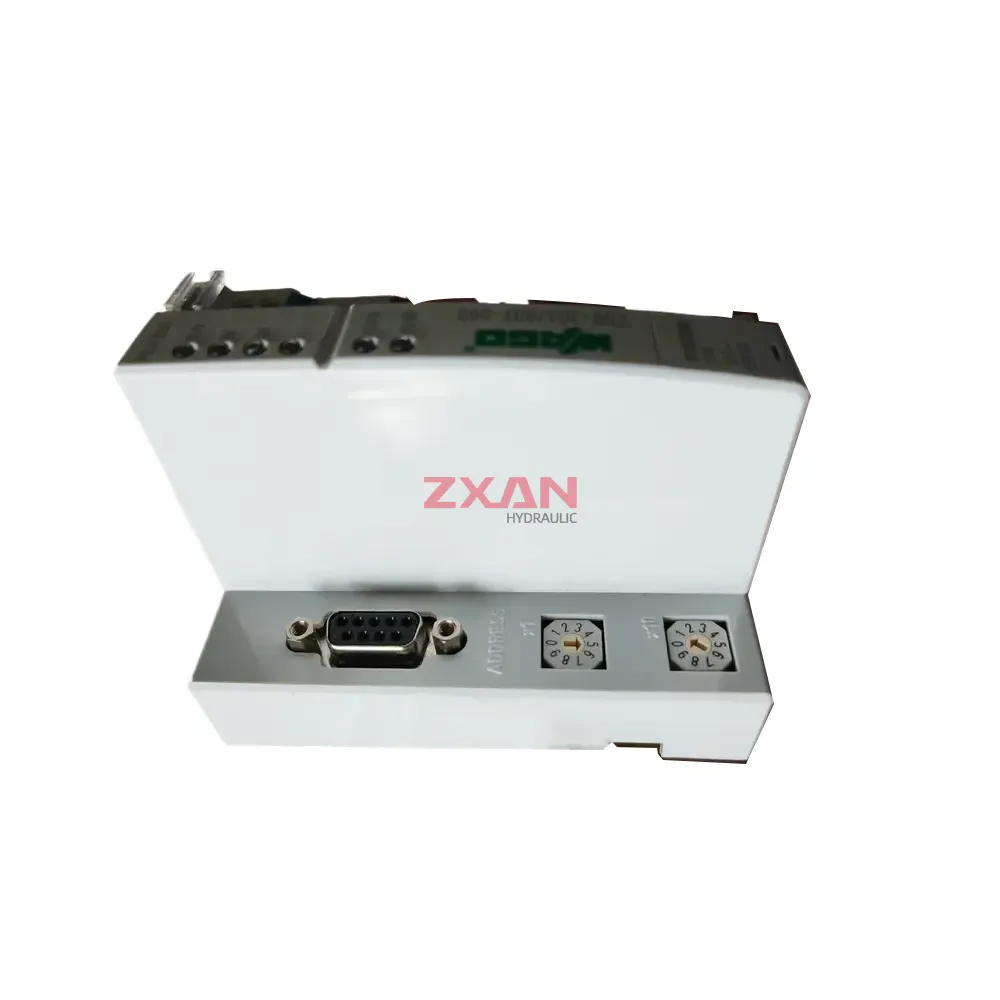

- Node Address Setting: 2 x Rotary switches (0-99)

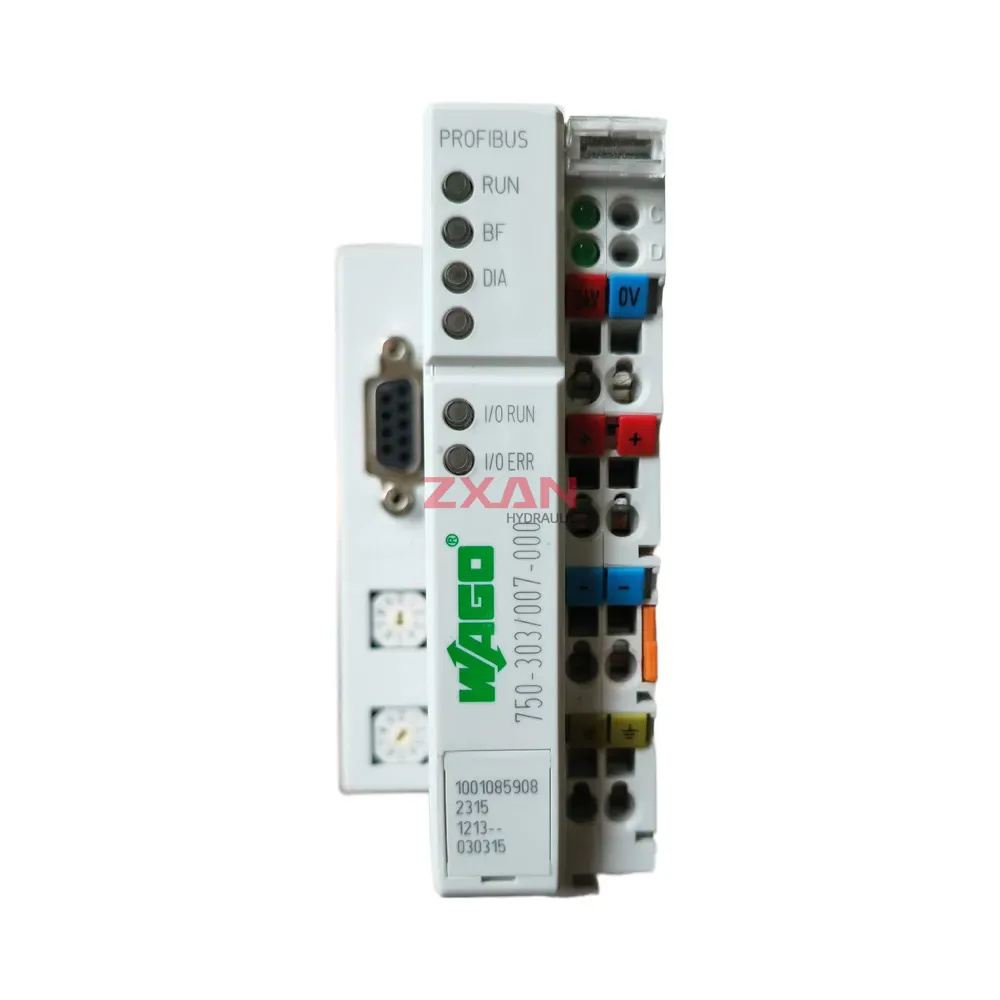

- Indicators: LEDs for RUN, BF (Bus Fault), DIA (Diagnostics), I/O RUN, I/O ERR

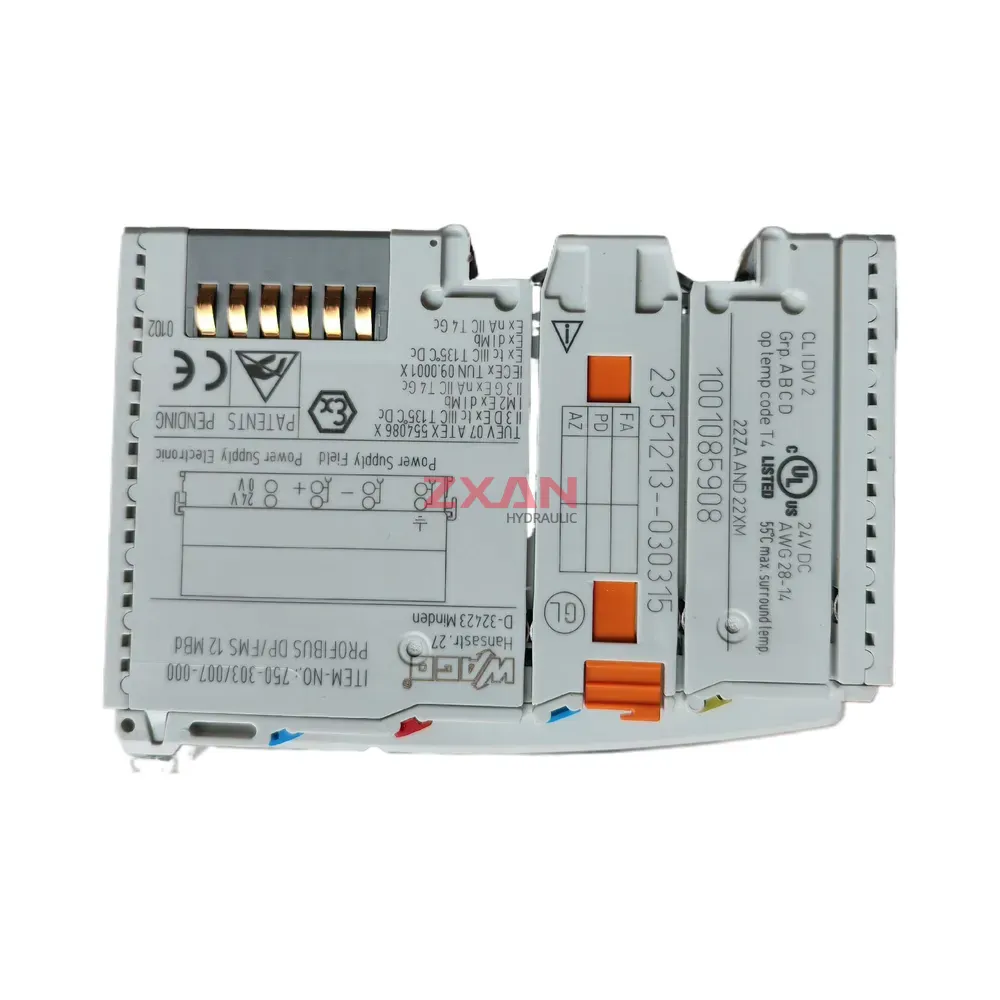

- Approvals: ATEX (Ex ic IIC T4 Gc), IECEx, cULus Listed (Class I, Div. 2, Grp A, B, C, D)
- Max. Surrounding Temperature: 55°C (131°F)
| Brand | WAGO |
|---|---|
| Model | 750-303/007-000 |
