Woodward 0188987-008R-001 SCAB Control Board
Upgrade your turbine control system with the Woodward 0188987-008R-001 SCAB (Serial Communication Adapter Board). Featuring robust thermocouple inputs, a JV2BIT interface, and onboard Power-One DC-DC conversion for reliable industrial performance.
Woodward 0188987-008R-001 SCAB Control Board

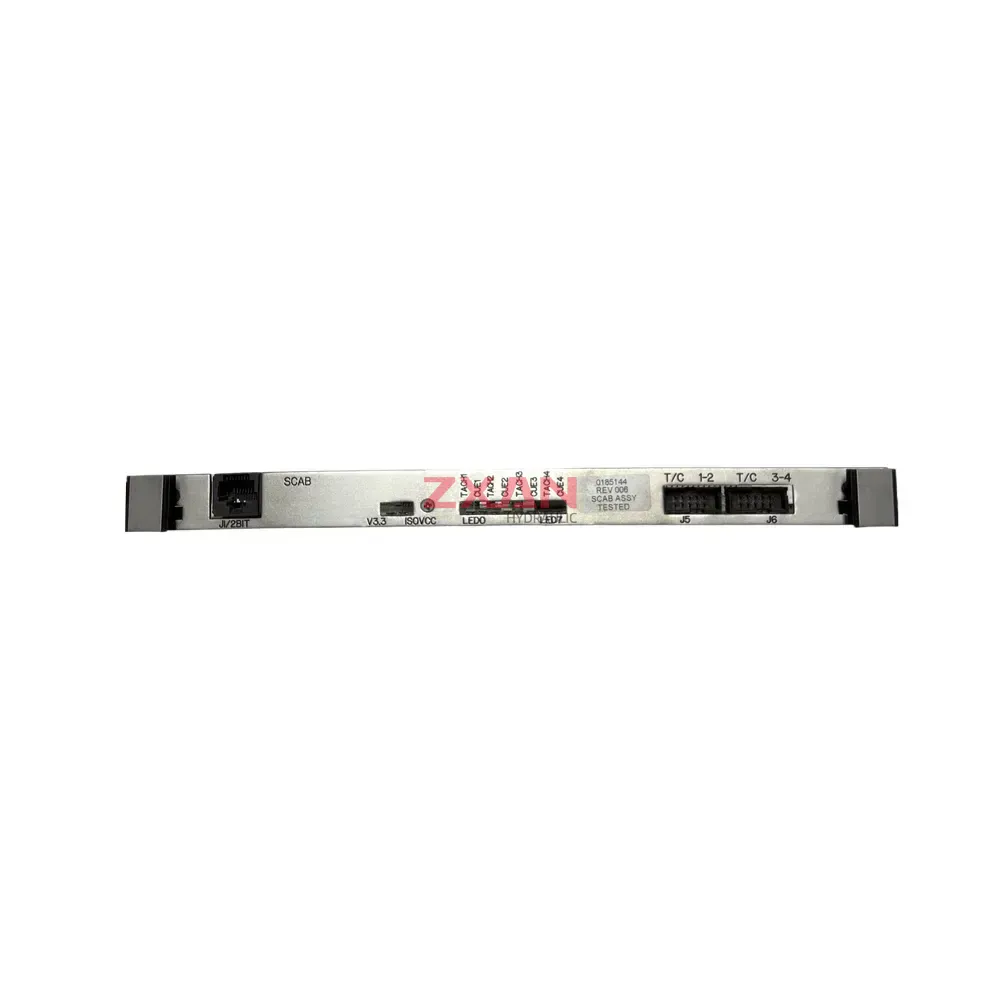

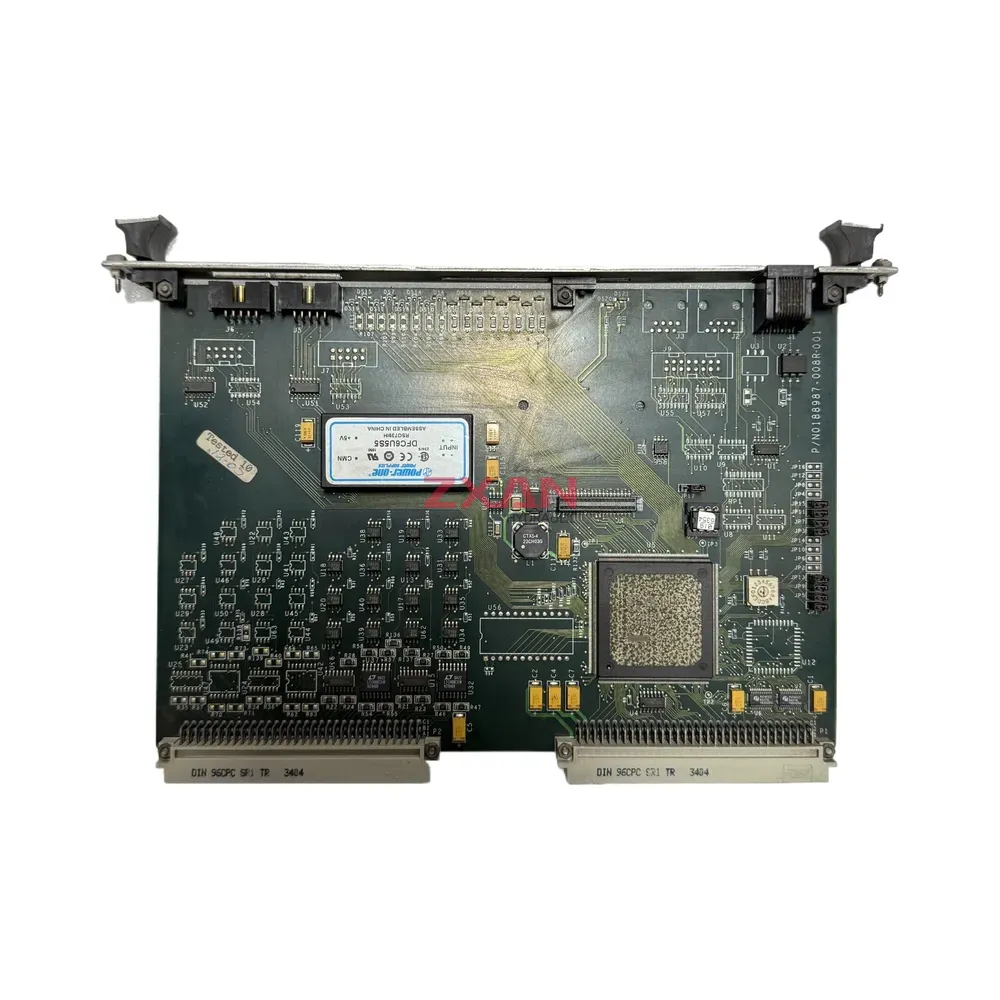

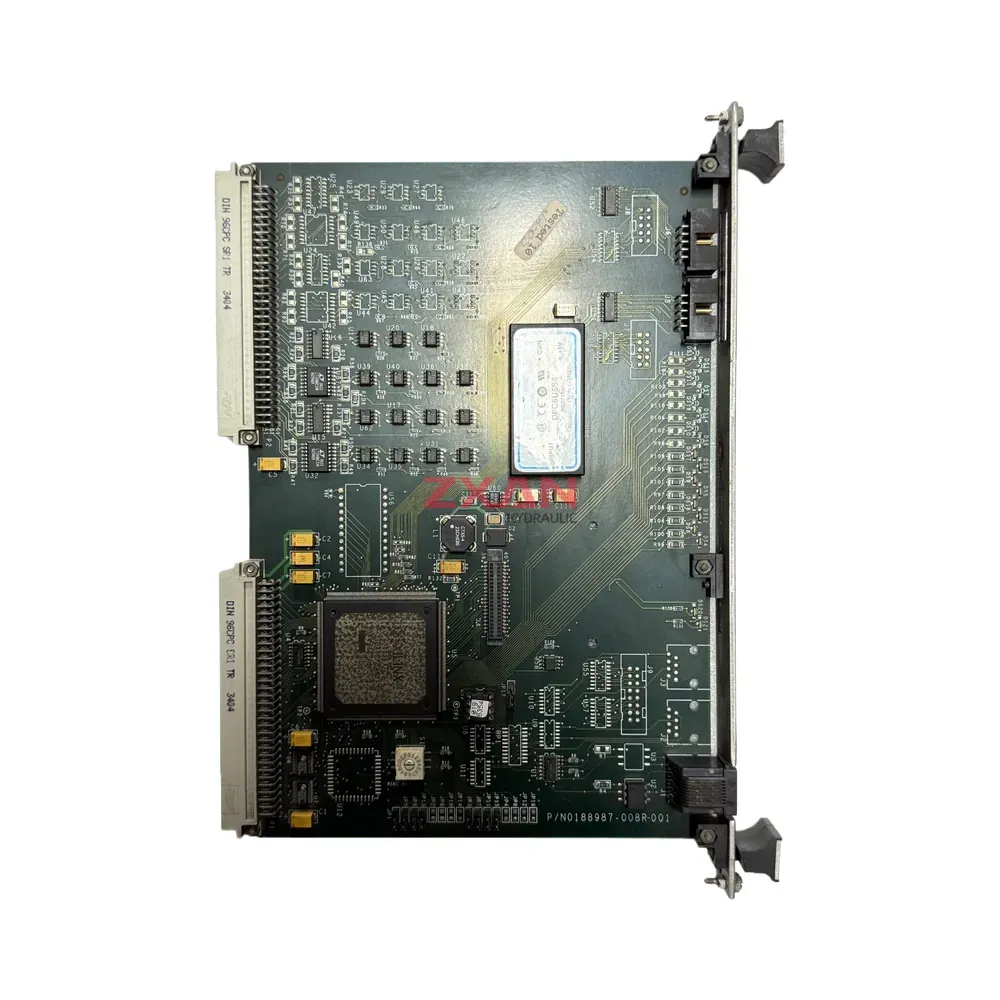

The Woodward 0188987-008R-001 SCAB (Serial Communication Adapter Board) is a highly reliable industrial control circuit board assembly designed specifically for advanced turbine control systems. This module features multiple thermocouple inputs (T/C 1-2, T/C 3-4) for precise temperature monitoring and a robust JV2BIT communication interface for seamless system integration. Equipped with an onboard Power-One JFC6U685 DC-DC converter, it ensures stable and isolated power delivery. The front panel includes comprehensive diagnostic indicators, including LED0-LED7, TAO#1-4, and QUE1-4, allowing for efficient real-time operational monitoring and troubleshooting.
Technical Specifications:
- Brand: Woodward

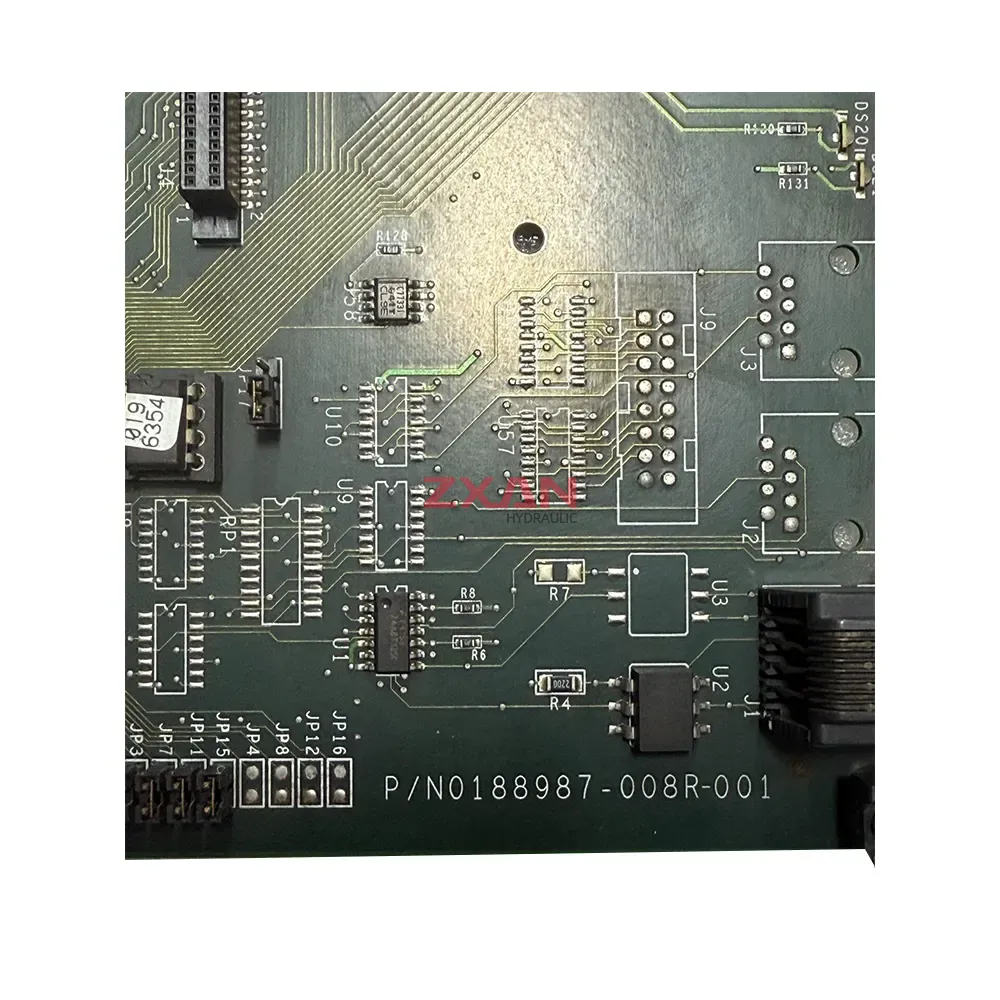

- Model/Part Number: 0188987-008R-001 (PCB P/N)
- Board Type: SCAB (Serial Communication Adapter Board)
- Front Panel Assembly: 0185144 REV 006
- Power Module: Power-One JFC6U685 DC-DC Converter
- Inputs: Thermocouple (T/C 1-2, T/C 3-4)
- Communication Interface: JV2BIT
- Connectors: DIN 96CPC SF1 TR 3404, DIN 96CPC E01 TR 3404

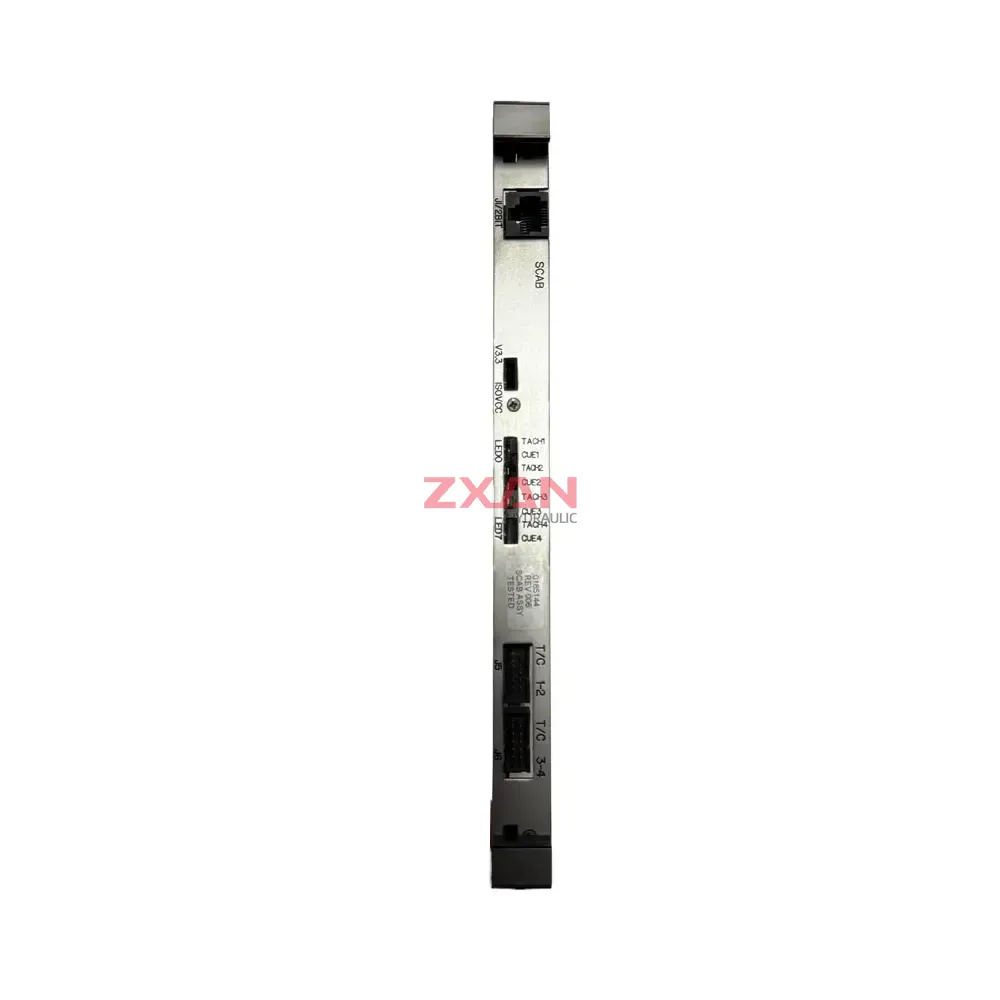

- Status Indicators: V3.3, ISOVCC, LED0-LED7, TAO#1-4, QUE1-4
| Brand | Woodward |
|---|---|
| Model | 0188987-008R-001 |
