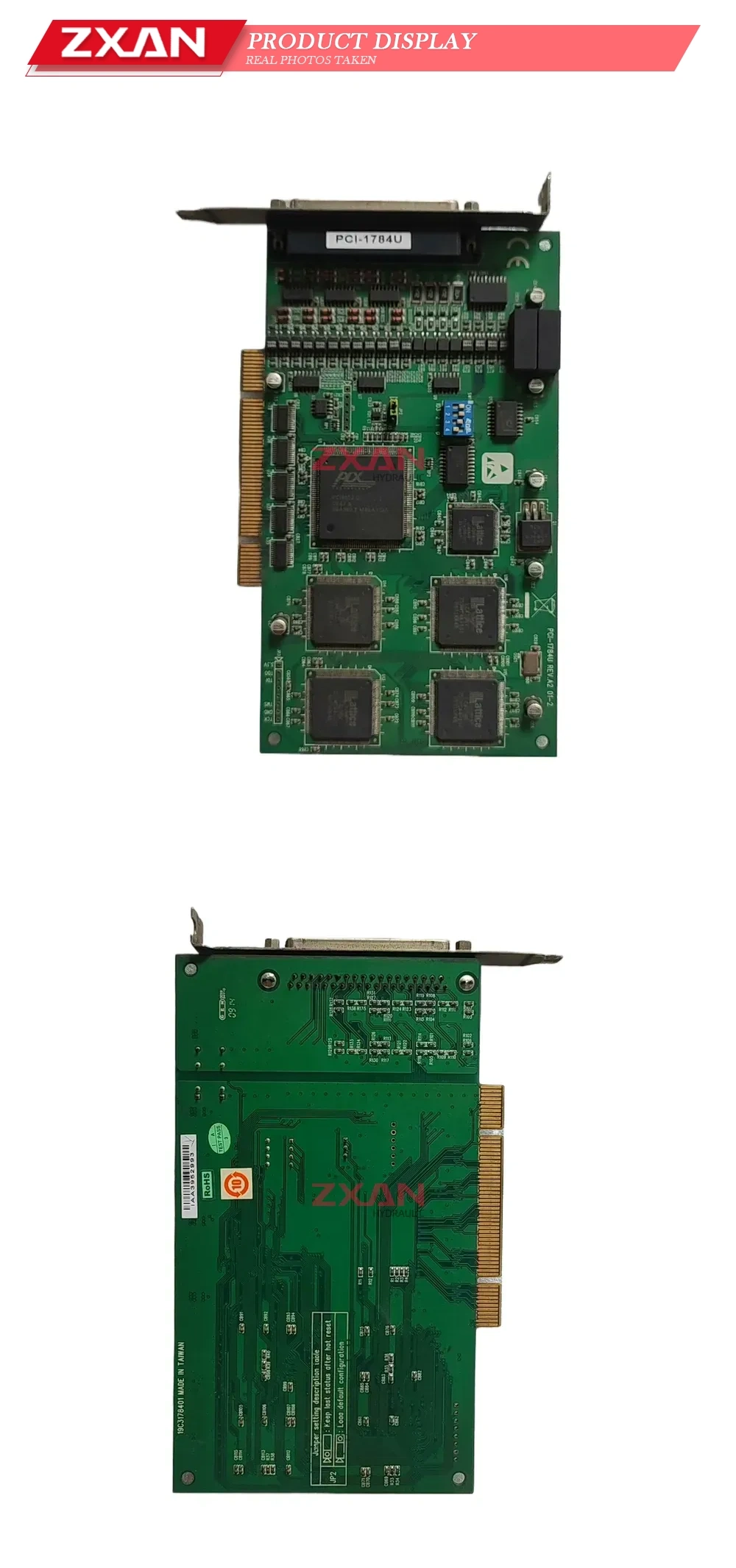

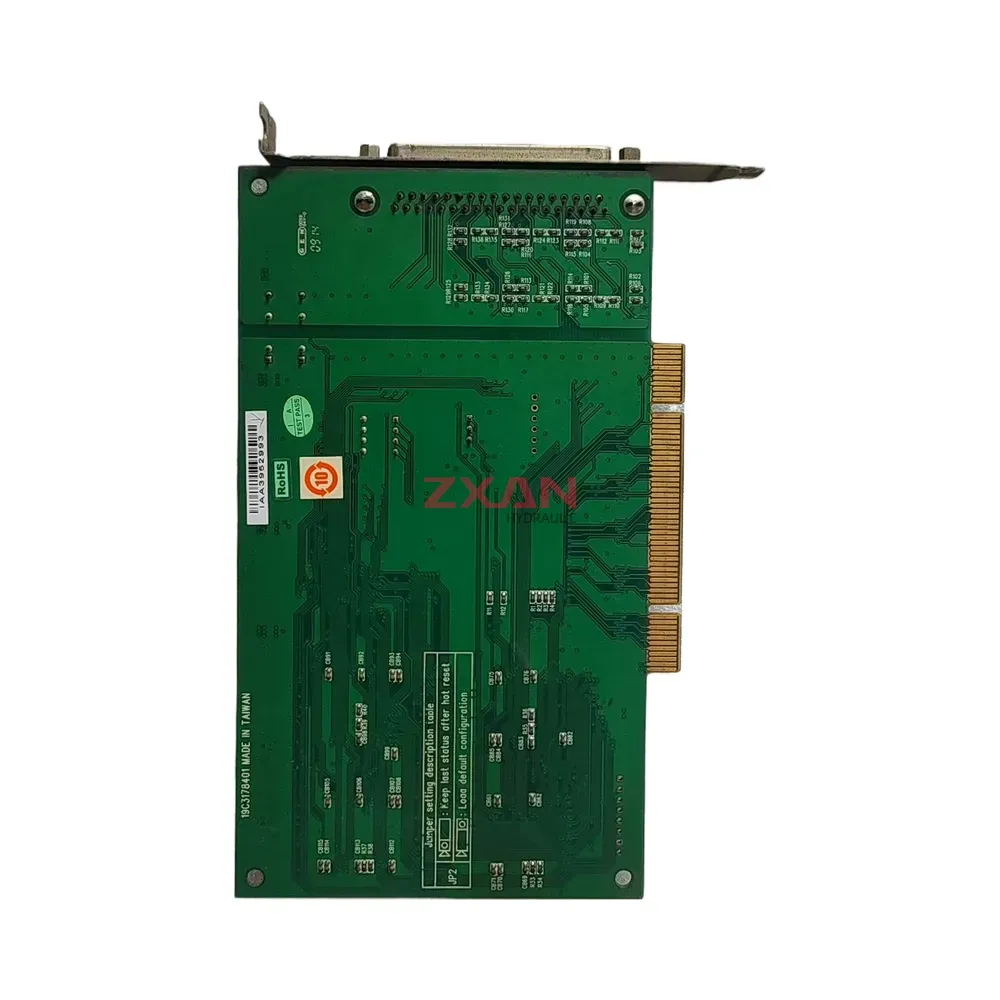

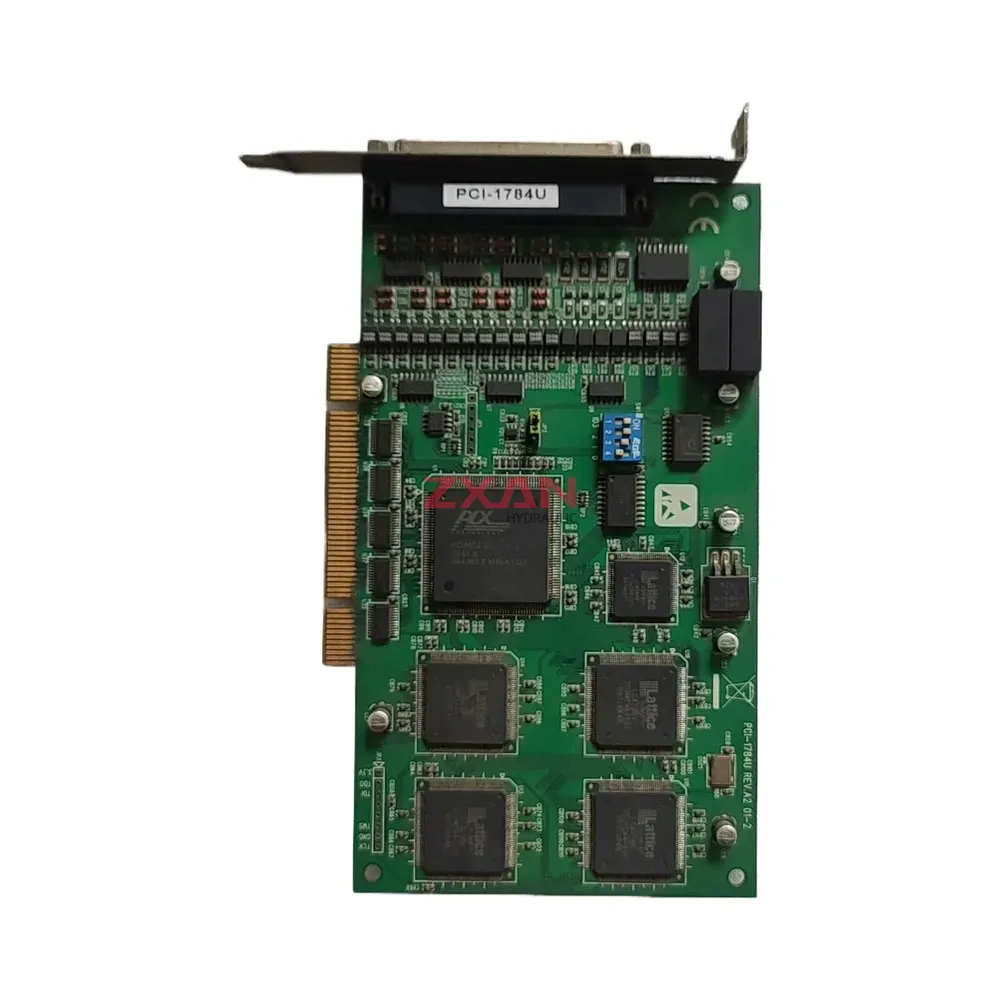

YANHUA PCI-1784U REV.A2
The YANHUA PCI-1784U REV.A2 is a robust 4-axis quadrature encoder and counter card for Universal PCI, offering high-speed (20 MHz) and high-resolution (32-bit) position tracking for industrial motion control systems.
YANHUA PCI-1784U REV.A2
The YANHUA PCI-1784U, manufactured by Advantech, is a high-performance 4-axis quadrature encoder and counter card designed for the Universal PCI bus. It is engineered for demanding motion control and position monitoring applications in industrial automation. Each of the four independent channels can be configured for quadrature, pulse/direction, or up/down counting modes, offering exceptional flexibility. With a high-speed input frequency of up to 20 MHz and 32-bit counters, the PCI-1784U ensures precise and reliable measurement. The card also features 4 isolated digital inputs and 4 isolated digital outputs, enhancing system stability and safety in noisy industrial environments. It is an ideal solution for applications such as CMMs, X-Y tables, robotics, and other equipment requiring accurate position feedback.
Technical Specifications:
Card Type: Universal PCI v2.2
Number of Axes/Channels: 4 independent channels
Input Modes: Quadrature (1x, 2x, 4x), Pulse/Direction, CW/CCW
Max. Input Frequency: 20 MHz (for 4xAB mode)
Counter Resolution: 32-bit
Digital I/O: 4 isolated digital inputs, 4 isolated digital outputs
Connector: 1 x 68-pin SCSI-II female connector
| Brand | YANHUA |
|---|---|
| Model | PCI-1784U REV.A2 |
