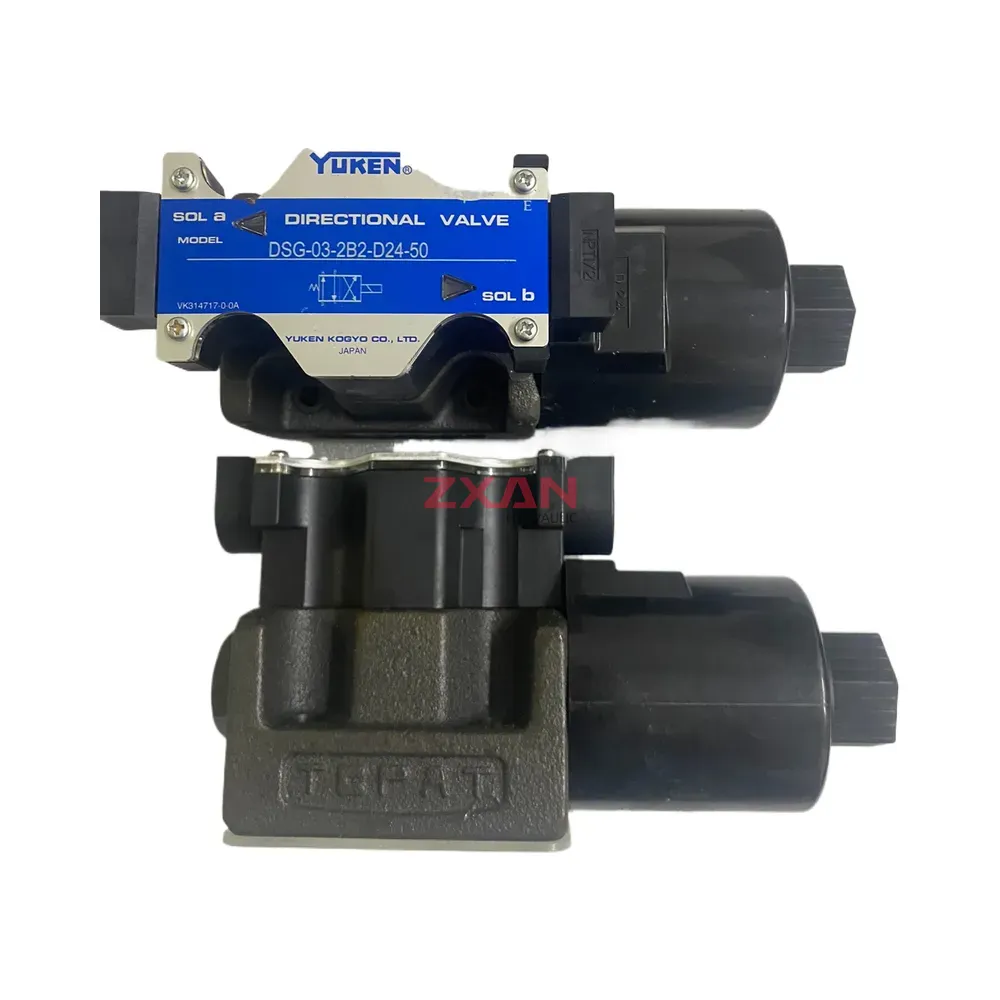

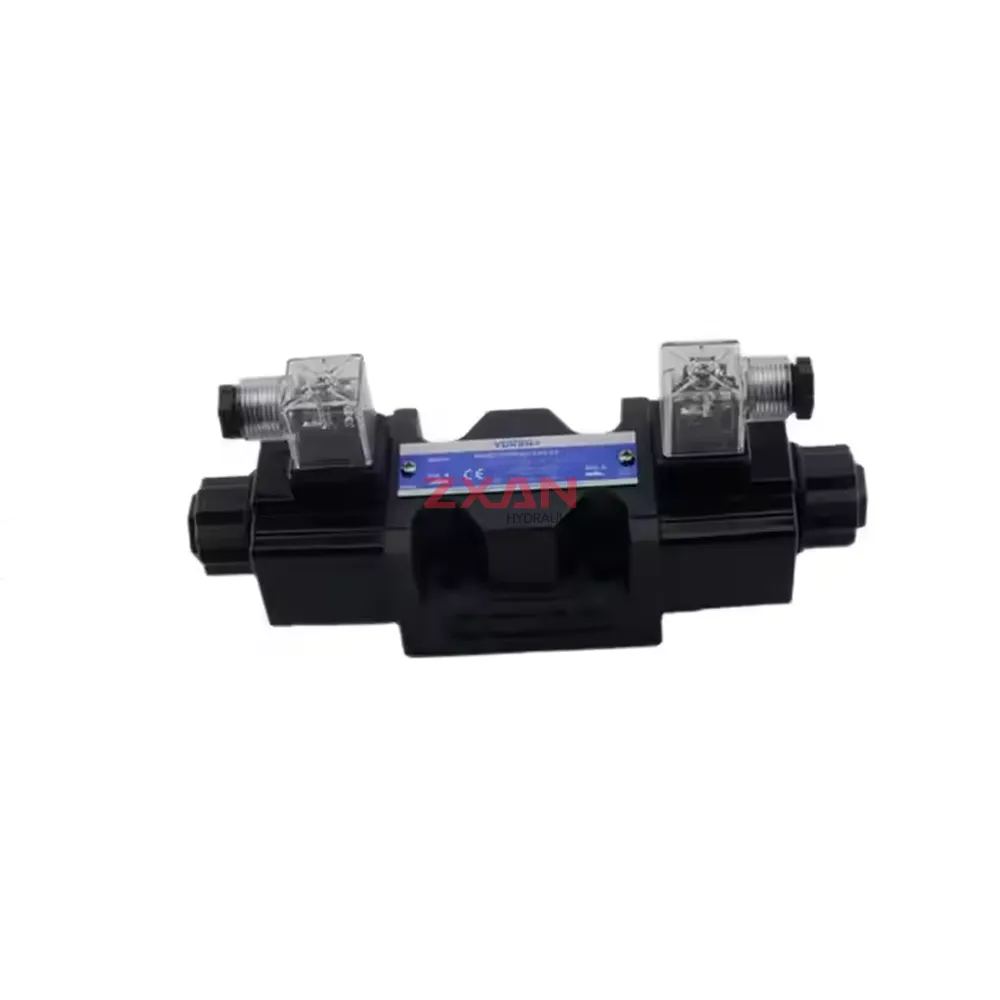

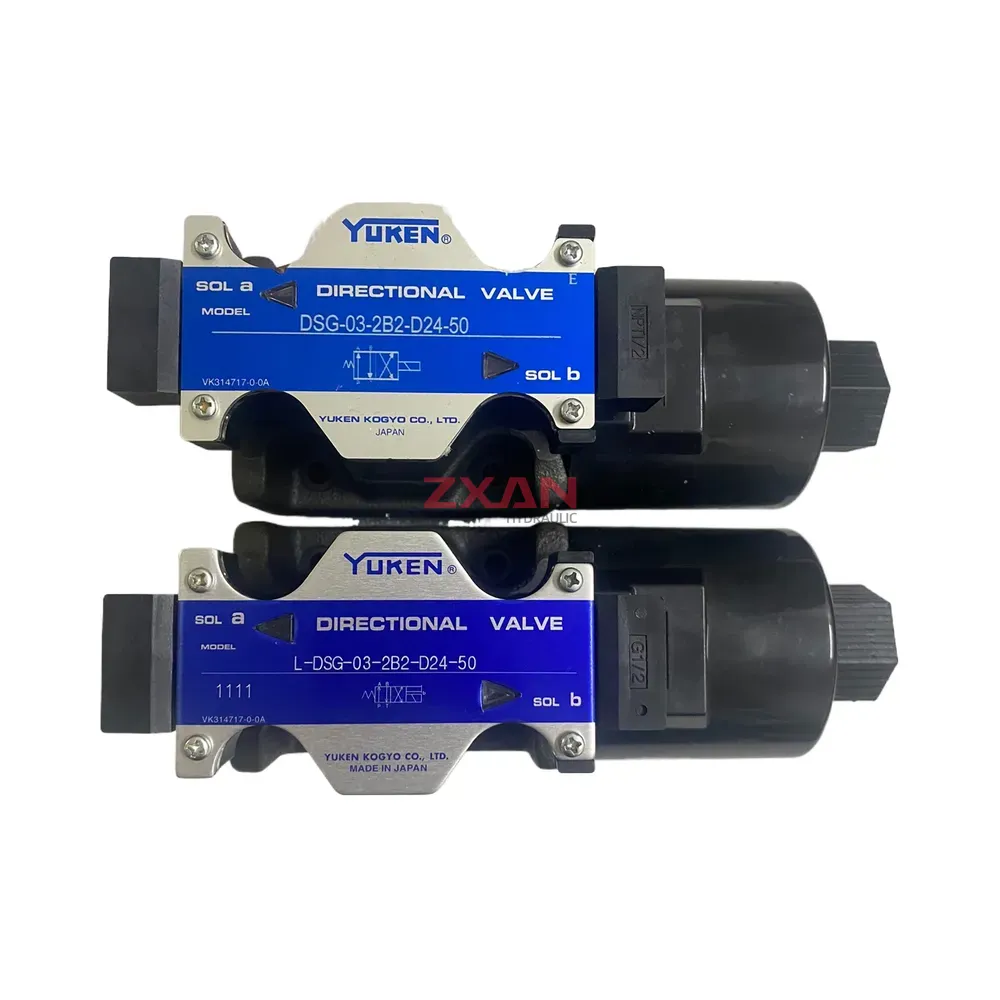

YUKEN L-DSG-03-2B2-D24-50
The YUKEN L-DSG-03-2B2-D24-50 is a high-performance, solenoid-operated directional control valve from the DSG-03 series. This specific model features low-wattage DC solenoids (indicated by the ‘L’ prefix) for reduced energy consumption and heat generation. It’s designed for reliable shifting and control within hydraulic systems, offering high pressure and flow capabilities in a standard industrial mounting configuration (NG10/CETOP 5/NFPA D05). The 2B2 spool type provides a specific flow path configuration when the solenoid is energized and de-energized (spring offset). This valve operates on a 24V DC power supply.
Technical Specifications:
- Valve Size: NG10 (CETOP 5 / NFPA D05)
- Mounting Standard: ISO 4401-05-04-0-05 / NFPA D05
- Valve Type: Solenoid Operated Directional Control Valve
- Spool Type: 2B2 (Spring Offset)
- Actuation: Single Solenoid
- Solenoid Voltage: DC 24V
- Solenoid Power Consumption: Low Wattage (L-Type)
- Maximum Operating Pressure: Approx. 31.5 MPa (4570 PSI) – *Confirm with specific datasheet*
- Maximum Flow Rate: Approx. 120 L/min (31.7 US GPM) – *Confirm with specific datasheet*
- Electrical Connection: Typically DIN 43650 connector (Verify specific configuration)
- Hydraulic Fluid: Mineral oil based, phosphate ester based (Check compatibility)
- Design Number: 50
| Brand | Yuken |
|---|---|
| Model | L-DSG-03-2B2-D24-50 |
