ZD05-02 Control Panel PCB Assembly
Maintain and repair your industrial or medical equipment with the ZD05-02 Control Panel PCB Assembly (P/N: 4914410). This high-quality replacement interface board features dual 7-segment displays, dynamic green LED arrays, and 10 responsive membrane switches, delivering precise control and reliable visual feedback for your critical machinery.
ZD05-02 Control Panel PCB Assembly

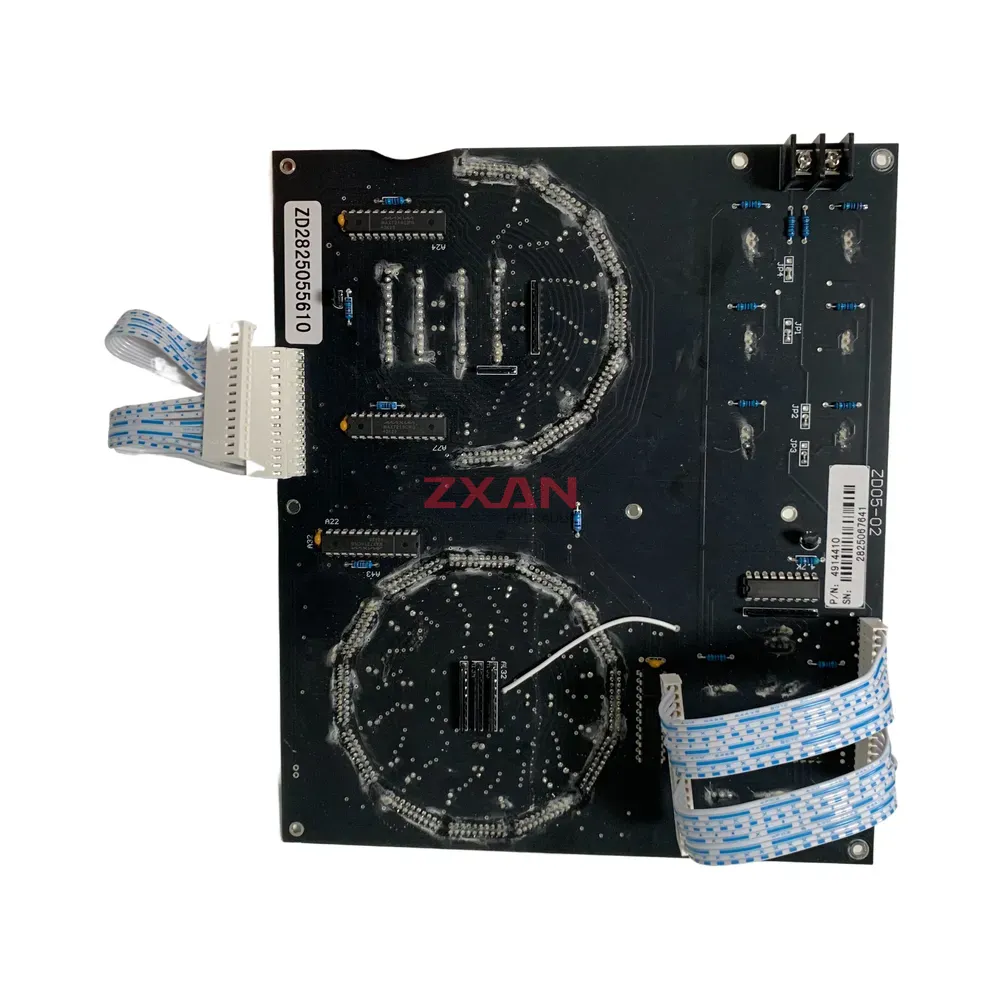

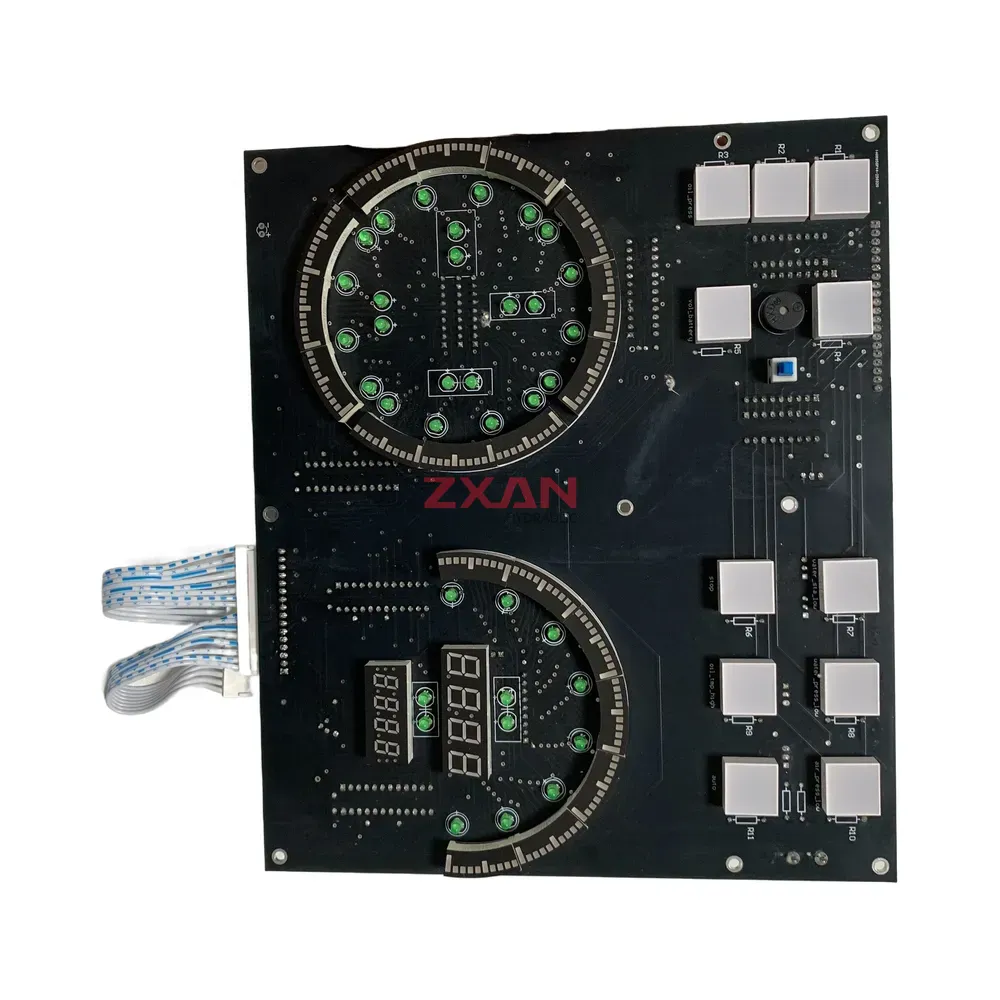

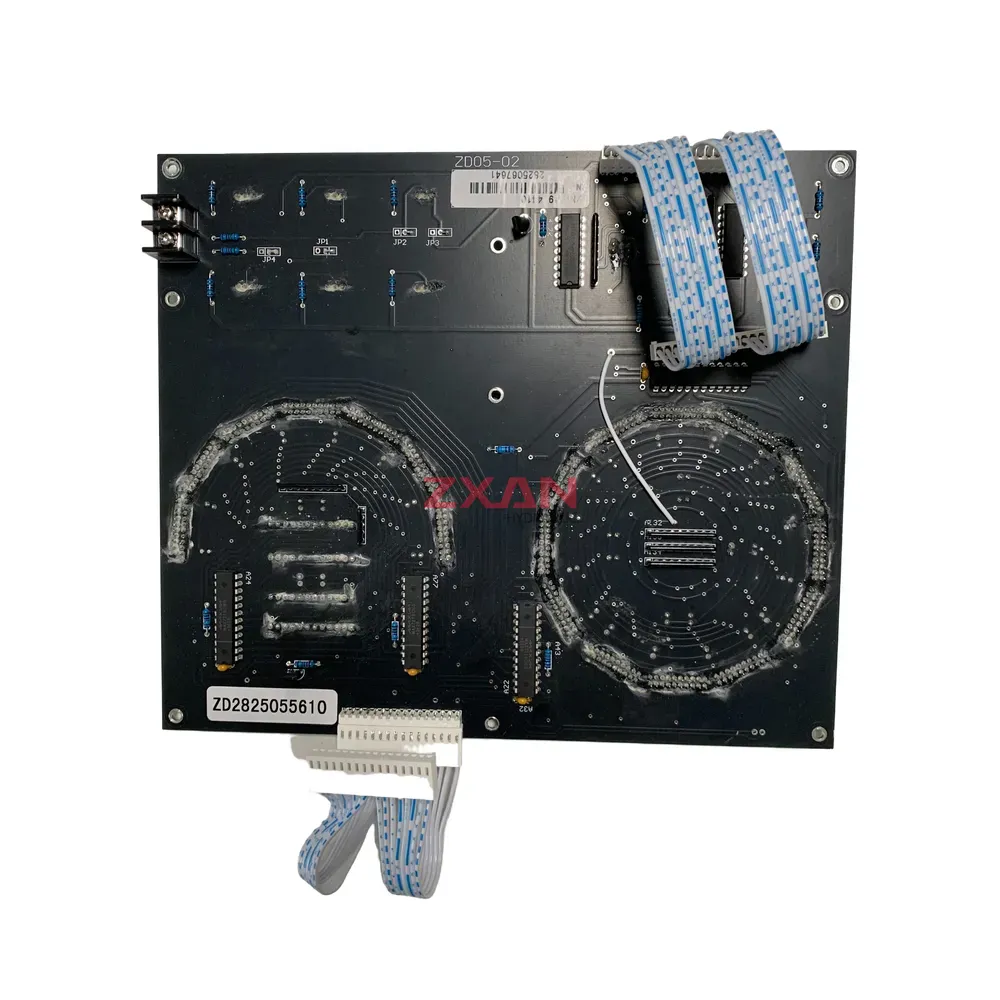

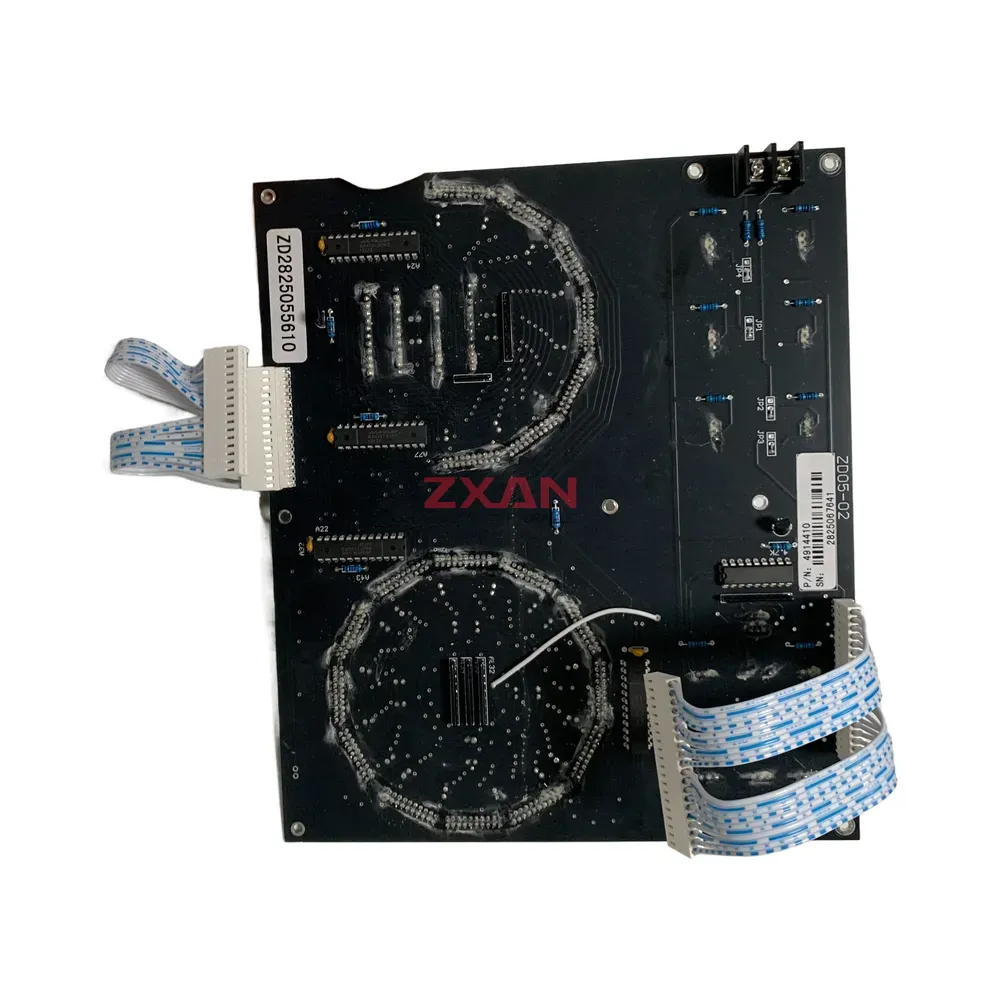

The ZD05-02 Control Panel PCB Assembly (P/N: 4914410) is a robust and highly reliable printed circuit board designed specifically for user interface and control applications in demanding industrial or medical environments. This black PCB assembly features an intuitive layout that includes two circular arrays of green LEDs (one full circle and one arc) for instant visual feedback, paired with dual 4-digit 7-segment displays for precise numerical readouts. For user input, the board is equipped with ten durable white membrane switch buttons, clearly labeled R1 through R10. Additionally, the assembly ensures secure and seamless system integration through its integrated ribbon cable connectors, terminal blocks, and high-quality DIP integrated circuits.
Technical Specifications:
- Model: ZD05-02
- Part Number (P/N): 4914410 (Alternate ID: ZD2825055610)
- Display Interface: Two 4-digit 7-segment displays and green LED arrays (full circle and arc configurations)
- User Controls: 10 white membrane switch buttons (Labeled R1-R10)
- Connectivity: Integrated ribbon cable connectors and terminal blocks
- Board Construction: Black PCB featuring DIP integrated circuits and precision solder connections
| Model | ZD05-02 |
|---|
